Pug Mill Dealers

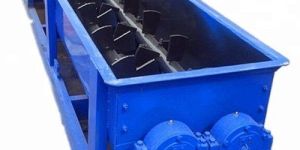

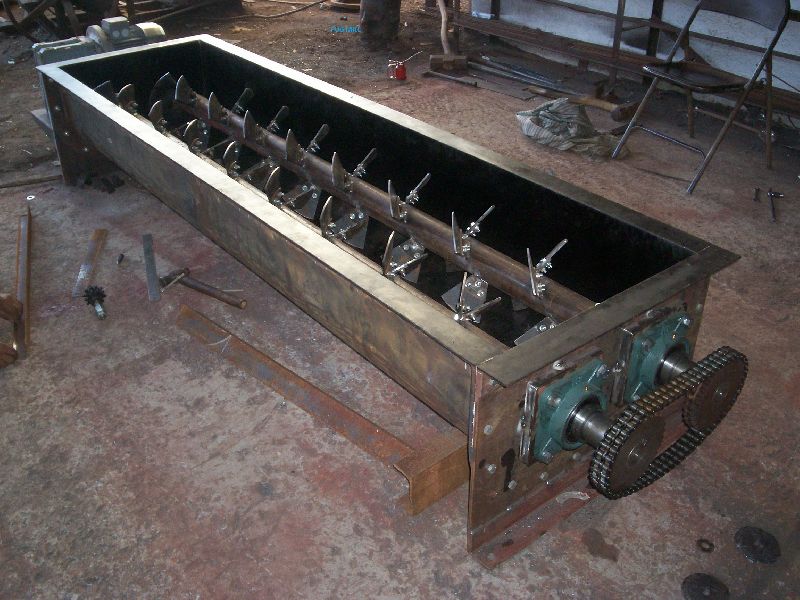

A pugmill or pug mill is a machine in which clay or other materials are mixed into a plastic state or a similar machine for the trituration of ore. A pugmill may be a fast continuous mixer. A continuous pugmill can achieve a thoroughly mixed, homogeneous mixture in a few seconds. Mixing materials at optimum moisture content requires the forced mixing action of the pugmill paddles, while soupy materials might be mixed in a drum mixer. A typical pugmill consists of a horizontal boxlike chamber with a top inlet and a bottom discharge at the other end, 2 shafts with opposing paddles, and a drive assembly. Some of the factors affecting mixing and residence time are the number and the size of the paddles, paddle swing arc, overlap of left and right swing arc, size of mixing chamber, length of pugmill floor, and material being mixed.

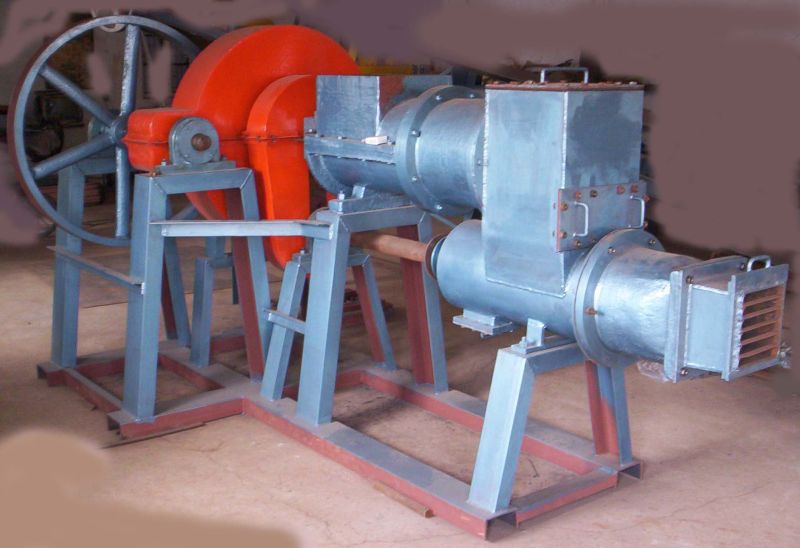

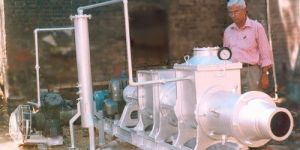

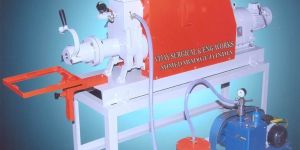

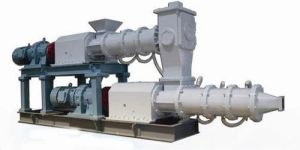

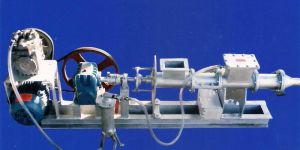

The De-Airing Pug Mill that we Manufacture, Export, and Supply is highly acclaimed by the clients due to its excellent quality. Manufactured from quality components, this De-Airing Pug Mill ensures exceptional reliability to the users. This De-Airing Pug Mill is user friendly and due to that, it is highly admired by the clients.

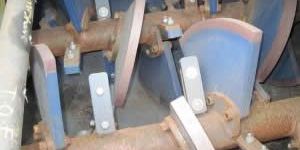

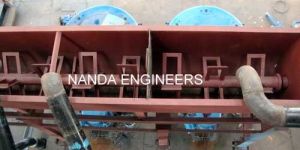

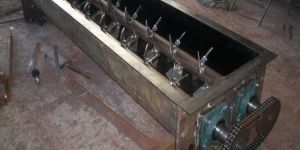

 Pug mixer inner walls are constructed of SS or MS sheets. The mixer consists of a centre shaft of appropriate diameter and is either made of S.S or M.S materiaI. The centre shaft is fitted with specially designed agitator blades in order to provide contraflow action. Contraflow ensures constant circulation of mix/blend ingredients from one end to another to homogenise the batch.  Both the ends of the vessel are provided with stuffing boxes on the shaft. Blend ingredients are prevented from leaking and entering into bearings by the stuffing box. The shaft is supported by heavy duty pedestals. For models below 300 kgs the unit is provided with a pulley drive system along with tilting arrangement for discharge.    For models above 300 kgs the unit is provided with a gearbox drive coupled to a motor and the discharge valve provided at the bottom

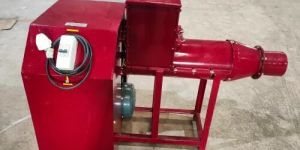

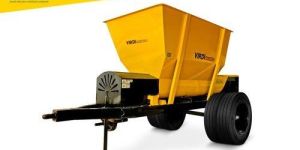

Our company offers different types of Pug Mills like Asphalt Pug Mill, Clay Pug Mill, etc. A Pug Mill mounted on antifriction bearing provides quick, continuous and homogeneous mix of aggregates and additives. We are one of the largest Pug Mill Mixer Manufacturers and Clay Pug Mill Suppliers across India.

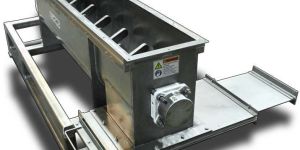

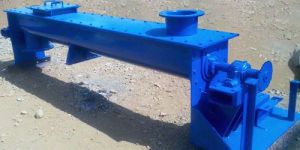

Our company is a trustworthy Manufacturer and Supplier of Pug Mill Mixer from Maharashtra, India. The performance of the Pug Mill Mixer is highly commendable, enabling industry processes to achieve respectable output. We stock the Mixer in our spacious warehouse to address the bulk demands of the buyers easily. Customers can purchase our range of Pug Mill Mixer at pocket friendly prices.

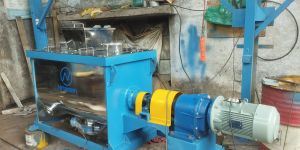

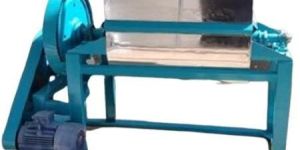

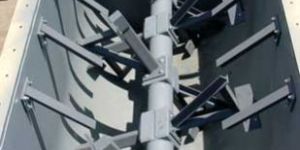

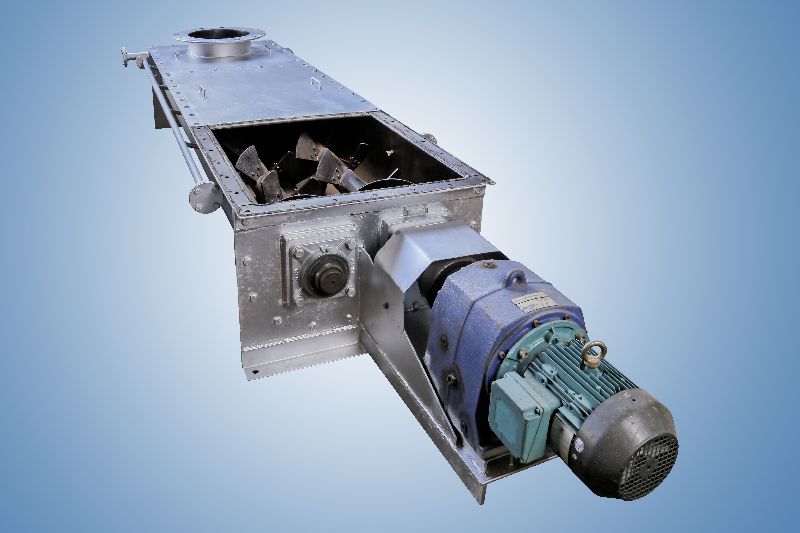

Pug Mixers are similar to ribbon blender except for the blade configuration. These mixers are also called as the paddle mixer. They are used for numerous processes including compounding, fine mixing, dispersing, suspending, emulsifying, deaerating, tempering, accelerating chemical or physical reactions, granulating, breaking down agglomerates.   Design Highlights The paddles are positioned to move the material in opposing lateral directions as well as radially. The paddle design is generally employed where friable materials are being blended.   Pug Mixer consists of several elements: a centrally mounted horizontal shaft that rotates within a cylindrical container, paddles, ploughs or other shaped mixing elements that are attached to the centrally mounted shaft, special openings at the top for feeding materials, flush fitting access doors at the front of the mixer, a flush fitting discharge valve at the bottom of the mixer, which is pneumatically or manually operated, inside a cylindrical conduit and a complete drive unit.   Application These are horizontal mixers utilized for blending dry material, powdery granular, short fibered, moist solids and liquids together with pasty substances up to and including highly viscous masses.

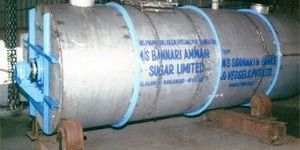

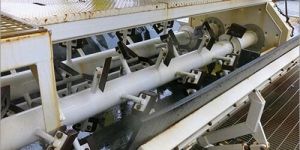

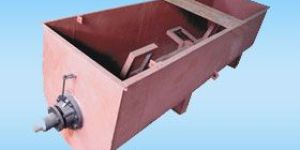

Siddharth tanks & vessels pvt. Ltd. Offers pug mill that is useful for heavy duty mixing. The company is well known for providing wide range of machineries for engineering disciplines like manufacturing of sugar . The pug mill is available with equipments like special helical blade, gland seal, u-shell, cylindrical-shell and pedestals.

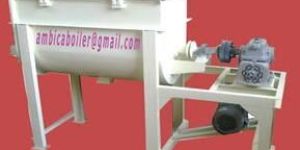

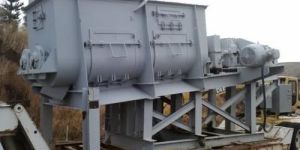

Ideal for making putty, distemper and emulsion paint.     This Pug Mill have Ribbon type blade for mixing materials usually one of them dry and other a liquid.     when the material moves to & fro by the action / rotation of screw (Ribbon) blade. Both reverse & forward motions are effected to attain a smooth & pasty finish without solvent loss and raise in temperature.     The  Pug Mill consist  of a   'W'  shaped trough with two horizontal shafts on witch several  radial  arms  and  interrupted  ribbon type paddles are mounted. The paddle/ribbons areas are adjusted to ensure there are no ‘dead areas’ in  the Pug Mill. The dead areas in Pug Mill are avoided by making the clearance between the paddle /ribbon blade tips and trough shell is less than one half of the aggregate size.       Non  uniform  mixing  can  occur  if  Pug Mill  is  over filled,  the blade tips are immersed in material, the surface aggregates will tends to float above the blade & will not thoroughly mix. Conversely, Pug Mill containing too little aggregates, the tip of the blades rake through the material without mixing it.     Normally, the rating is based on percentage of the capacity of Pug Mills 'live zone' . The live zone is the net volume bellow a line extending across the top are of the inside body shell radius with shaft, blades and arms deducted.   Pug Mill For Paint Industry Ideal for making putty, distemper and emulsion paint.     This Pug Mill have Ribbon type blade for mixing materials usually one of them dry and other a liquid.     when the material moves to & fro by the action / rotation of screw (Ribbon) blade. Both reverse & forward motions are effected to attain a smooth & pasty finish without solvent loss and raise in temperature.     The  Pug Mill consist  of a   'W'  shaped trough with two horizontal shafts on witch several  radial  arms  and  interrupted  ribbon type paddles are mounted. The paddle/ribbons areas are adjusted to ensure there are no ‘dead areas’ in  the Pug Mill. The dead areas in Pug Mill are avoided by making the clearance between the paddle /ribbon blade tips and trough shell is less than one half of the aggregate size.       Non  uniform  mixing  can  occur  if  Pug Mill  is  over filled,  the blade tips are immersed in material, the surface aggregates will tends to float above the blade & will not thoroughly mix. Conversely, Pug Mill containing too little aggregates, the tip of the blades rake through the material without mixing it.     Normally, the rating is based on percentage of the capacity of Pug Mills 'live zone' . The live zone is the net volume bellow a line extending across the top are of the inside body shell radius with shaft, blades and arms deducted.

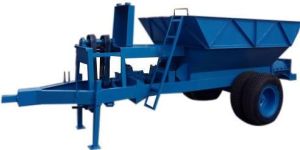

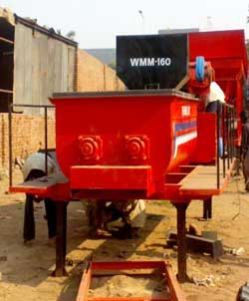

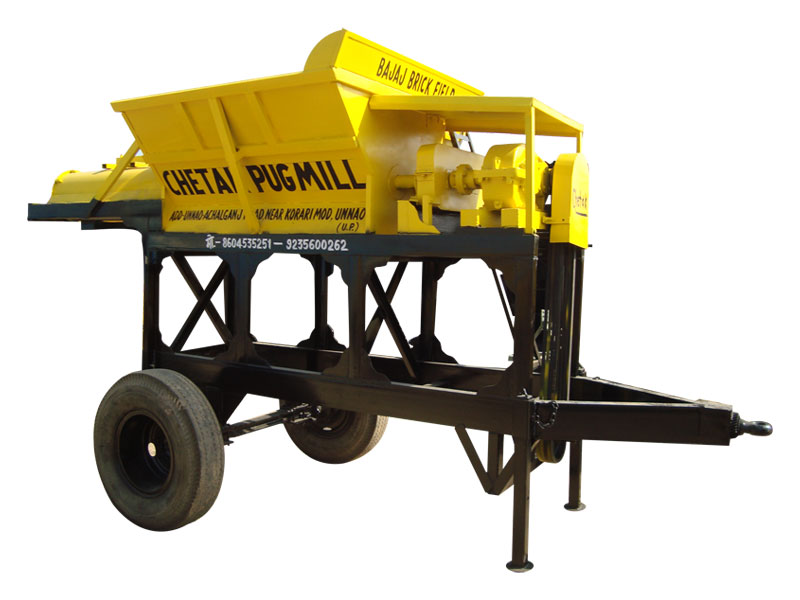

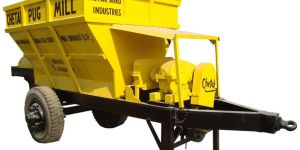

Pug Mill mixing unit so designed to mix material with exact quantity of water content to prepare a homogeneous mixture, also designed robust quality of wear resistant paddle arms for long life. It is fitted with AC motor. Load-Out Conveyor with Hydraulic Gob Hopper & Power-Pack Stationary 10,000 liter Capacity water Tank fitted with 3 HP water pump.
