We are counted among the renowned Manufacturers & Suppliers of Oil Pumping Unit in Maharashtra, India. Our Oil Pumping Unit consists of main filters, pumps & discharge filters and used to pump oil at the required pressure. Offered at the best market prices, our Oil Pumping Unit features high strength and long operational life. Buyers can consider our name for customized and urgent requirements.

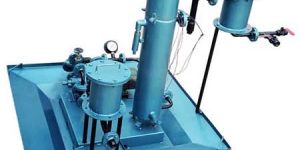

PUMPING UNIT provides filtered and at preset pressure the light fuel oil like LDO, HSD etc to the furnaces, kilns, ovens, dryers, boilers etc. Presized and completely assembled on a skid, PUMPING UNITS are ready for connection to on-site fuel supply and electrical power. Depending upon process application, simplex and duplex units are available. It comprises of motorized fuel pumps, filters, pressure regulators, valves, gauges etc to form a ring main systems..

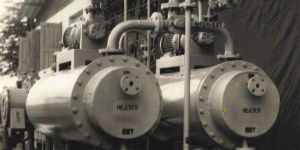

This device is a system, which provides the fuel oil to the combustion device at a predetermined pressure and temperature for efficient combustion. It consists of motor of reputed make like ABB and gear pump, heater with thermostatic control, temperature & pressure gauges another pressure regulating valve. Types :-* Heating and Pumping Unit Simplex* Heating and Pumping Unit Duplex-I* Heating and Pumping Unit Duplex-II

PHF unit filters, heats & pumps furnace oil to oil fired furnaces, kilns, ovens, dryers, boilers at 15-20 psi at 100 Deg C.The furnace oil is filtered through coarse inlet basket strainer, Heated to desired temperature & filtered again through fine outlet basket strainer before being pumped to be fired in boiler furnaces.Use of fuel oil handling system minimizes start up and operating difficulties in boiers & furnaces and also reduce maintenance costs.Duplex unit consists of 2 nos inlet filters in parallel , followed by 2 nos. gear pumps,One heater unit followed by outlet filters.Any excess fuel, which is not required by the burner, is returned back to the heating and pumping unit.

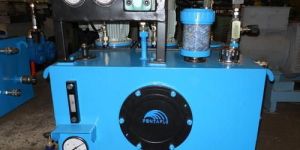

Our Oil Pumping and Heating Units are designed to supply fuel oil at pre-determined constant pressure and temperature to ensure efficient combustion. These compact and fully assembled units with all valves, thermostats, pressure gages, pressure switches etc on its own drip tray prevent undesirable variations in temperature caused by heat loss and varying rates of oil flow in long oil lines from heaters located far away. The PH units circulate oil in the ring main at three times of the consumption to provide a stable oil supply system for best combustion results.

We are offering simplex pumping unit, simplex heating unit. pumping & heating unit: • model name: simplex pumping & heating unit (sph)  duplex pumping & duplex heating unit (dpdh)  transfer pumping unit • technical name: pumping station, oil handling unit, hfo booster,  on - line heater, on - line heating unit • flow rate: 50 lph – 5000lph • heater capacity: 2 kw – 120 kw • power: 0.5hp – 40 hp • product description: this unit generally used in all applications where the fuel required to be supplied at constant pressure and constant viscosity. In general, pumping unitpumping and heating unit consists of pump coupled with motor, (on-line heaters with temperature control unit), back pressure regulating valve, interconnected with seamless ms pipes, assembled on a compact tray with drain cock valve. • advantages: 0% break-down free pumping system.  compact equipment.  wastage of oil during transportation will be avoided.  ensures effective combustion.  ensures carbon-free atomizing.  avoid nozzle chocking.  maintains constant pressure irrespective to the head pressure. • optional accessories: flow meter, viscous meter, digital temperature control system. • safety: all necessary factors are incorporated to avoid any dangerous condition of the unit. Unit will shutsstops the fuel flow immediately after the signal point.

We are a One-stop Destination for Finest Quality Combustion Related Products. Manufactured from Best Grades of Raw Materials, the Combustion Heating Products Offered are Used in Large Number of Industries. Heating Pumping Units, Lap Oil Burners and Gear Pumps are Some of the Combustion Related Products that are Available At the Economical Prices. this Combustion Related Products are Known for Their Easy Handling and Effective Performance. this Makes Us One of the Illustrious Combustion Products Manufacturers from India.

In the Pumping unit parts segment we offer: • Pumping Cylinders & Accessories like Piston Ram from DN 150 – 250 sizes. • Accessories for Gate Valve and Outlet Kit – Spares like   Fixing Flange, Piston Rod, Flat Gate Valve, Cup body Shell, Fixing Flange, Pivot, Fixture, Plunger housing – Seal kits for Plunger   Differential. • Agitator Parts like Shaft, Arms, Sealing Cone, Flange Shaft, Bearing Bushing and Y type Siamese   Tube, Wedge etc. • Critical and High wear Parts like Rock Valve / S-Valve, Spectacle plate, Wearing – Insert, Wear Plate, Wear Ring, Cutting Ring, Thrust Ring, Pressure Spring etc

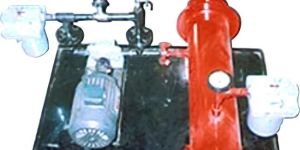

Please note that with the help of pumping heating unit, you can supply heated oil with pump pressure . As per standard the fuel is supplied to the burner through pump with the pressure of 0.55 - 0.85 kg./cm. sq. ( 8 -12 PSI) Heavy furnace oil require preheating to bring down viscosity. You can save fuel consumption with this unit.

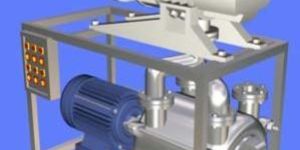

In case single Vacuum pumps (liquid ring pumps, rotary vane pumps) are not suited for a certain process due to their pumping speed and / or their ultimate vacuum, a combination with twin lobe pumps can be used. These Vacuum Pumping Units consist of rotary vane pump twin lobe pumps as fore-pump and rotary vane pump or liquid ring pump as backing pump. The fore-pump picks up oil necessary for its lubrication from the backing pump. The exhaust from the fore - pump is connected to the suction side of the backing pump thereby giving advantage of high pumping speed at higher vacuum. These units are highly energy efficient and consume less power than conventional single vacuum pumps.  These pumping units are of compact design and mounted on base frames ready for use. They are tailor - made and are offered to suit user's requirements. APPLICATIONS :- Evaporative Concentration, Vacuum Distillation, Polymerization, Crystallization, Vacuum Impregnation, Vacuum Drying, Sterilization, Vacuum Cooling, Object Metallising, Roll Metalllisation, semi-conductor Processing, Manufacture of Vacuum & Microwave Tubes, Manufacture of GLS Automotive& Miniature Lamps, Tube Light Production, Sintering, Brazing, Electron Beam Welding, Heat Treatment Ionic Nit riding, Tool Coating, Vacuum Casting, Degassing & Refining, Plasma Welding, Evaporation, Sputtering, Space Research and Development Applications.
