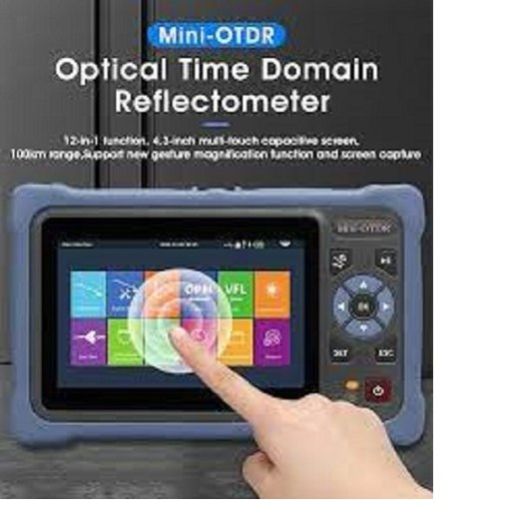

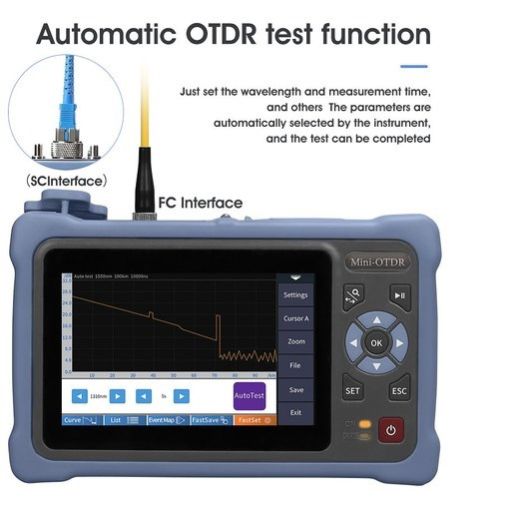

optical time domain reflectometers
45,000 Per piece
1 Piece (MOQ)

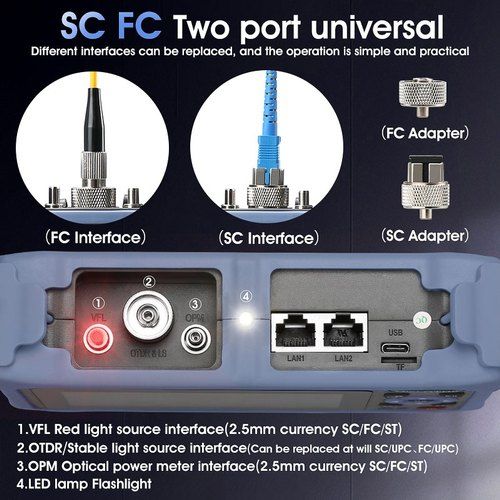

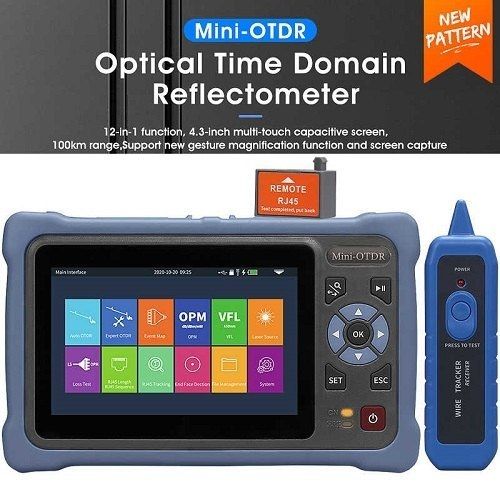

Able to generate different forms of test reports according to user need TOP : Otdr / Ls Port , Opm Port, Vfl Port, Flashlight, Rj45 Cable Tracker Port, Rj45 Sequence / Length, Tf Card, Type C Usb MAIN VIEW : Dust Cover, 4.3 inch color LCD, Function Key, Charging Indicator, Power On Status Indicator|| BOTTOM : RJ45 Sequence test remote User friendly interface, totally simulate the computer keyboard input
otdr machine
45,000 Per Pieces
Best Deals from Reflectometer
Optical Time Domain Reflectometer
95,000 - 330,000 Per piece
1 Piece (MOQ)
EURO DIGITAL OTDR 4100
Get Price Quote
event dead zone as lower as 1.5meter combined multi dynamic range and wavelengths multi measurement mode, support touching lcd and pressing keyswarning function could prevent otdr module from being damaged by optical signal in fiber.real time measuring function, convenient to monitor the splicing processintegrated 10mw visual fault locator..
KFS MAX 6537 Optical Time Domain Reflectometer
Get Price Quote
Reflectometer
Get Price Quote
The 1205CX-A provides the CATV field technician with unparalled fault finding capability. With a sub-ns pulse, a rugged and robust package and full PC connectivity, the 1205CX-A offers industry leading performance as well as having the Riserbond ease of use functionality. It is intuitive and easy to use and meets the users needs both in performance and in use. It has advanced features such as a sub-ns pulse and auto fault find and is housed in a field proven rugged and robust enclosure. The 1205CX-A is complete fault finding package for the CATV field engineer.
PLANAR Vector Reflectometer
Get Price Quote
PLANAR R54 is a Vector Reflectometer designed for S11 parameter measurement. It represents an excellent low cost solution for magnitude and phase measurements over the frequency from 85 MHz to 4.2 GHz. With the weight of just 0.25 kg it provides the user with high accuracy measurements and a variety of analysis capabilities in frequency and time domains. Frequency range: 85 MHz to 4.2 GHz Measures magnitude and phase of reflection coefficient, cable loss, DTF Measurement time per point 200 us Frequency setting resolution 10 Hz Powered via USB interface Compact size: 117х39х19 mm, lightweight: 0.25 kg
Optical Backscatter Reflectometer
Get Price Quote
Key Features In extended range mode the maximum sensing range is 2 kilometers The OBR 4600 for sensing has a dual display with an intuitive user interface that allows the user to simultaneously view a plot of temperature and strain in the upper graph and a magnification of sections of that plot in the lower graph The user interface can store and display up to five traces (two traces in desk top analysis mode) The scanning wavelength range, sensing range, gage length and sensor spacing are all user adjustable and offer the user maximum flexibility to tailor OBR 4600 measurements to the application requirements The spot scan option is available with the sensing option, offering higher spatial resolution over a user selectable 80 meter section of the total sensing range
Time Domain Reflectometer
96,999 Per Piece
Reflectometer
Get Price Quote
The AQ7277 is an OTDR module for RFTS (Remote Fiber Test Sytem), which uses the advanced technology transferred from the AQ7275 high performance OTDR.Measurement at 1650 nm (Maintenance wavelength), Built-in 13101550 nm cut filter for live-fiber monitoring, Allow to test PON system through high-port-count splitter.
Optical Time Domain Reflectometer
Get Price Quote
We are offering optical time domain reflectometer. * windows ce based (lighter/faster/virus free). * 7-inch tft touchscreen(outdoor high contrast display). * 12 hours battery backup (li-polymer battery). * usb port(2nos), rj-45(1no). * internal storage: 20,000 traces. * sampling point: 2,56,000 points. * light weight (1.29kg). * auto report generation function.
Time Domain Reflectometer
175,000 Per Piece
Yokogawa AQ7280 MODULAR OPTICAL TIME DOMAIN REFLECTOMETER
Get Price Quote
An optical time domain reflectometer (OTDR) is a precision instrument used to locate events or faults along a fiber link, typically within an optical communications network. The OTDR launches a series of high speed optical pulses into the fiber to be measured. Various events on the fiber generates a Rayleigh back scatter that returns to the OTDR and the strength of the return pulses are measured and integrated as a function of time, and plotted as a function of fiber length. The horizontal axis is the distance and the vertical axis is the loss. OTDRs are mainly used in the optical fiber installation and maintenance servicing of access networks (communications links between telephone exchanges and telephone poles) and user networks (communications links between user sites and telephone poles). Our broad lineup of OTDRs offer cost performance, field durability, and applicable dynamic range. With thirty years of innovation in reflectometry design we deliver technology solutions where you need them most.
Reflectometer
Get Price Quote
Exfo OTDR
200,000 Per Set
1 Set(s) (MOQ)
This fully featured OTDR with tablet-inspired design combines singlemode and multimode fiber testing in a dedicated and compact quad unit to allow everyday field testing in access networks, data centers and private enterprise networks. · Handy, lightweight, powerful, tablet-inspired design · 7-inch, outdoor-enhanced touchscreen–the biggest in the handheld industry · 12-hour autonomy
Optical Time Domain Reflectometer
30,000 - 36,000 Per piece
TDR1000/2
Get Price Quote
The TDR10002 is a hand held, compact Time Domain Reflectometer for locating faults on metallic cables. It has a minimum resolution of 0.1m0.3ft and a 3km9kft maximum range depending on Velocity factor selected and cable type. Four output impedances are available (25, 50, 75, and 100 ohms) and a velocity factor between 0.30 and 0.99 will meet any cable test requirements
MAX-730B-M2 OTDR line
Get Price Quote
The MAX-700B series is the first tablet-inspired OTDR line that is handy, lightweight and rugged enough for any outside plant environment. With a 7-inch, outdoor-enhanced touchscreen–the most efficient handheld display in the industry–it delivers an unprecedented user experience. Its intuitive Windows-like GUI ensures a fast learning curve. Plus, its new and improved OTDR2.0 environment offers icon-based functions, instant boot-up, automatic macrobend finders as well as improved auto and real-time modes.
Optical Time-domain Reflectometer
Get Price Quote
The MAX-710B is the first tablet-inspired OTDR that is handy, lightweight and rugged enough for any outside plant environment.With a 7-inch, outdoor-enhanced touchscreen, the most efficient handheld display in the industry, it delivers an unprecedented userexperience. Specifications : FTTx last-mile installation and troubleshooting. Short access network testing. FTTA-fi ber DAS installations. CATV/HFC network testing. S
OTDR Optical Time Domain Reflectometer
85,668 Per
