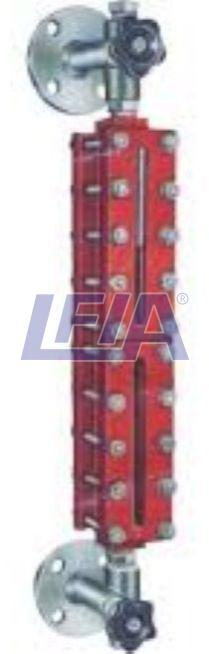

Reflex Level Gauge Indicator Dealers

We are an unsurpassed Manufacturer, Supplier and Exporter of Reflex Level Indicators from Maharashtra. The Reflex Level Indicators we make available come with precision molded prismatic grooves cut on inner surface, which comes in contact with liquid. Stringent quality-tests ensure that only defect-free Level Indicators reach the buyers. We are capable of delivering bulk orders of the Level Indicators within the promised time frame.

It is designed for most critical requirements of liquid level in vessels under high pressure & temperature condition in petrochemicals, fertilizer and pharmaceuticals & chemical industries involving inflammable toxic liquid, high temp Liquids.

Reflex level gauges applicable upto 200 kgcm2 and upto 400 deg cent cryo applications upto-196 deg cent toughened borosilicate glass with swerrations for applicability in critical, acidic, cryo and temperature zone ibr certified device available nace,h2s service compatibility applicable.

Reflex Level gauges are designed to operate based on the difference in the refractive indices of Liquid and vapor. Liquid Flows through the gauge chamber behind the viewing glass located on only one side of the instrument and which is clamped to the gauge body. When liquid is present the glass will Appear black where it is in contact with the process medium and when no liquid is present the Glass is silvery or white thus the level can be seen. SPECIFICATION Range: 0- 3000 mm Maximum Pre & Temp: 220 Kg/cm2 & 400 ºC Liquid Chamber: CS, ASTM A 105, SS 304, SS 316L, Monel, Titanium, Inconel 600, Hastelloy Cover: CS, ASTM A 105, SS 304, SS 316L Gasket & Cushion: IFG 5500, CAF, PTFE, Graphoil SS316 reinforced, Graphoil SS304 Glass: Toughened Borosilicate Size 115, 140,165,190,220,250,280,320,340 Options: Frost Free Extension, Mica Shield, NACE Wetted Part, Heating Jacketing, Cooling Jacketing, Scale, Type of Isolation Valve Type of Model: PERL-30, PERM-85, PERH-170, PERHH-220, PERLC-28, PERW - 120 APPLICATION High pressure and temperature, Storage tank, Chemical plants, Process and Power plants, Boiler Drum Level and Process Heaters, Chemical / Fertilizer plants, Bulk Carriers, Applications for viscous coloured and interface liquids

The Reflex Level Gauge we provide is made of high grade raw material. Advanced technology is used in making the Reflex Level Gauge.  We are counted among the top Manufacturers and Suppliers of Reflex Level Gauge in Navi Mumbai, Maharashtra. The top qualities of our Reflex Level Gauge are that it is strong, not prone to corrosion and is dimensionally accurate.

It is designed for most critical requirements of liquid level in vessels under high pressure & temperature condition in petrochemicals, fertilizer and pharmaceuticals & chemical industries involving inflammable toxic liquid, high temp Liquids. Other Related Products: MANOMETER Double Limb U Tube type Industrial Manometer Single limb Industrial Manometer ARCYLIC BODY MANOMETER

GAYATRI's make Reflex Level Indicators are used for visual level indication of tanks. Normally preferred over tubular LI, where tank pressure & or temperature are more. On Reflex glass, colourless liquids appears black thereby making level observation easy.

The reflex Level Indicator We Offer to the Client is in High Demand in the Market for Its High Class Quality. the Reflex Level Indicator We Manufacture is Made with the Use of Hi-tech Machinery Thus It Gives High Performance and is Very Much Trusted By the Industrialists. suitable for : inflammable Toxic, High Pressure and High Temperature Liquids why Our Reflex Level Indicator? inner Surface of Glass Has Reflecting Prismsliquid Level Shows Black in Contrast to Mirror like Surface Abovelow Power Consumptioneasy to Operateresilienteasy to Installenhances Service Life in Demand By : fertilizer Industrypharmaceutical Industryrefineries Industrychemical Industrypower Plantspetrochemical Industry and More

specifications : gauge classification : standard chamber, large chamber or weld pad gauge glass : tempered borosilicate (local, klinger / maxos) in 30mm width as standard. cushion : caf gasket : caf, ptfe body (liquid chamber) : ms, cs (en-8),astm a-105, ss304, ss316 or pp cover plate : ms, cs (en-8),astm a-105, ss304, ss316 or pp bolts / nuts : ms or grated alloy steel for high temperature service. cc distance : 1915mm for straight through / 1875mm for hook up in single length. Extended ranges through a coupler. gauge connection : straight through / hook - up. process connection (pc) : flanged to bs, asa, ansi or din / screwed to bsp or npt. orientation (pc) : top / bottom : left, right, rear, vertical isolating valves : integral offset needle valve / inline ball / globe valve. vent : plug drain : plug / needle / ball / globe valve calibrated scale : al/ ss linearly calibrated for level values in mm (lc=10mm)

With flat Reflex Glass for showing level of colourless liquids, Reflex Gauges use prism glass to provide an excellent indication of the liquid level. All liquids appear black in high contrast to the mirror like surface above. This clean line of separation can be sighted from many meters away. A reflex glass is clamped within the gauge body and seals the front opening of the liquid or vapour space.

Reflex Level Indicator that is provided by us is fabricated not only by qualified but experienced engineers. We are a celebrated Manufacturer and Supplier of Reflex Level Indicator in Tamil Nadu, India. It is precisely developed and hence is a reliable means of accurately determining the liquid level in process tanks, pressure vessels, boiler and various other types of containers with liquids varying from ordinary water to highly corrosive and dangerous chemicals.Details : Liquid Level Indicator Tubular Type Model : VKC make direct reading Liquid level gauge Construction All Wetted parts S.S. 304, 316, P.V.C & Teflon With or without ball check holder Tube Protectors 6mm O.D Steel Rod (or) Metal Protector "U" casing Scale arrangements Screwed connection 3/4" B.S.P. or Union Connection and flange connection is also available

The pharmaceutical and petrochemical industry needs the most advanced mechanisms for the success of their operations. This is because they deal with materials that are highly toxic and inflammable, and are used under high pressures and temperatures. The Reflex & Transparent Level Gauge is one mechanism that is extremely suitable for this industry. Reflex & transparent level gauges are preferred due to their ruggedness, sturdiness and low initial costs. They are installed to give easy level reading by viewing the position of liquid through tough glass panes.

Suitable for SAFE, positive visual indication of liquid level in vessel & tanks under vacuum, high press & temp.
