Reflex Level Gauge Indicator Dealers

(11 products available)

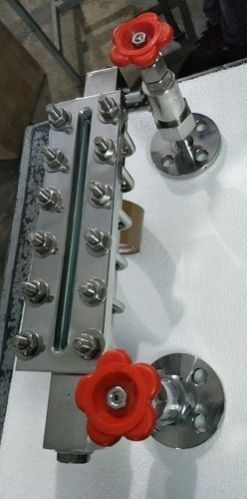

  • Reflex Level Gauge Indicator

    Reflex Level Gauge Indicator

    10,800 / Piece

    • MOQ1 Piece
    • Brand NameKabir
    • MaterialMS/SS/PP
    • DisplayAnalog
    • ConditionNew
    • Pay Mode TermsT/T (Bank Transfer)
    ...more
  • Reflex Transparent Level Gauge

    Reflex Transparent Level Gauge

    Get Price Quote

    We are offering reflex transparent level gauge. description of reflex type level gauge :- flowtech instrument offers reflex level gauge for the measurement of liquid level at a glance in tank. This is particularly using for high pressure or high temperature or toxic liquid storage tanks. these gauges have a prism glass window that uses the basic optical principles of light refraction & reflection to enhance the indication of the liquid level. In brief when the light strikes the area of glass covered by the liquid is allow passing to the interior of the gauge. So that the area appears dark (black). While the light strikes the open space, above the liquid level is reflected back to the observer so that the area appears silver-white. We can clearly see the actual liquid level in the systems. description of transparent type level gauge :- in this type of level gauge the liquid level is discriminated in the form of different specifications : type : reflex / transparent visibility : full visibility / partial visibility liquid chamber : carbon steel , s.s.304, s.s.304 (l) , s.s.316 ,s.s.316 (l), p.p cover plate : carbon steel , s.s.304, s.s.304 (l) , s.s.316 ,s.s.316 (l), p.p gasket : caf , ptfe , graphoil , other on request glass : borosilicate toughened of indigenous – temperature range upto 125oc , klinger / maxos make temperature range upto 400oc , other on request designed for high pressure & temperature liquid storage tanks in petrochemicals, fertilizers, pharmaceuticals & chemical industries. in reflex level gauges, the glass has precision groves cut inner side and mainly used for colorless liquids. in transparent level gauge, the glasses are without groves and arranged at the front and rear of a slotted liquid chamber and mainly used for colored liquids. max. 3000 mm length in single piece. imported/indigenous glasses on request. frost free arrangement on request.
    ...more
  • Reflex Level Gauge, Transparent Level Gauges

    Reflex Level Gauge, Transparent Level Gauges

    Get Price Quote

    • ConstructionStandard/Large chamber or weld pad
    • Glass PlatesTempered borosilicate (indigenous or klinger) in 30 mm width as Standard
    • Sealing Gasket/cushionCAF, PTFE (Indigenous) or Klingerite
    • BodyMS, CS, SS304, SS316, PP as standard
    • Cover PlateMS, CS, SS304, SS316, PP as standard
    • Bolts/ NutsMS or Graded Alloy steel for high temperature.
    • C/C Distance1600 mm in single length. Extended ranges through a Coupler
    • Chamber EntryTop or side/ Rear
    • ConnectionFlanged, Screwed with vertical or horizontal orientation
    • Vent/ Drain½" plug (BSP/NPT)
    • Drain Valve½" Needle/Ball/Diaphragm Type if required
    • Max. Pressure0-30 Kg/cm² (Indigenous glass), 0-65 (Klinger glass)
    • Max. Temperature0-300ºC (Indigenous glass), 0-400 (Klinger glass)
    • ScaleAl/SS scale calibrated for level values in mm/inches With LC 5 mm as standard or 1 mm on request.
    • Reflex Level Gauge (RLG-19) Reflex Level Gauge is designed for measurement of liquid level in vessels under high pressure & temperature conditions. It is a flat glass gauge, which has precision Mounded prismatic grooves cut on its inner side coming in contact with the medium. Light striking the glass covered by liquid is refracted (absorbed) into the liquid making this portion appear black, whereas light covering the vapor space is reflected back towards the viewers, making it appear silvery-white. Thus, a sharp clear line marks the liquid, eliminating all possibilities of errors in reading.   Technicals Designed for liquid level indication in vessels under high pressure & Temperature conditions. PP, CS, MS, SS 304, SS 316, SS 316L Chambers and isolation valves. Chamber machined from 40 mm square bar with 1/2" BSP drain & Vent plugs. Tempered borosilicate glass (Indigeneour/Klingerite), resistant to chemicals, thermal & mechanical shocks. Working pressure 65 kg/cm2 max and 4500 C temperature. Graded Alloy Steel U Bolts, Nuts and Studs as std and SS on demand. Flanged connection drilled to ASA 150# or as per customer's requirement. Choice of medium and high pressure designs in various body & gaskets materials to suit process media and temperature. Trouble – free operation, except for occasional cleaning. Large chamber construction available for boiling, foaming, flashing or surging liquids. Weld – Pad construction available for liquids containing suspended solids, or for situations, where piping is not acceptable or space is a limiting factor. Isolating valves, safety ball check, scale, illuminator, frost free, heating/cooling arrangement are optional. Variety of accessories & special features like isolating valves, safety ball check, scale illuminator, frost free heating/ cooling arrangements. Transparent Level Gauge (TPLG-19) Transparent Level Gauge is designed for measurement of liquid level in tanks under high pressure and temperature conditions. It consists of double flat glass mounted opposite to each other on a chamber. The glasses are held together by studs through cover plates. It is used for interface services or when the process is dirty or viscous. The chamber is available in a variety of metallurgy i.e. PP, CS, MS, SS304, SS316, SS 316L etc. The isolation valves can also be supplied in different metallurgy depending upon process fluid.   Features Tempered borosilicate glass, resistant to chemicals, thermal & mechanical shocks Choice of medium and high pressure designs is available in various body & gaskets materials to suit process conditions. Trouble – free operation, but requires occasional cleaning. Large chamber construction available for boiling, foaming, flashing or surging liquids. Weld – Pad construction is also available for liquids containing suspended solids, or for location where piping is not acceptable or space is limited. Internal Mica/ Plastic Shields for glass protection from services like caustic, hydrofluoric acid & steam drums above 250 psig. Accessories & special features like isolating valves, safety ball check, scale, illuminator, frost free, heating/ cooling arrangements are available.
    ...more
  • Reflex Transparent Level Gauge

    Reflex Transparent Level Gauge

    Get Price Quote

    The pharmaceutical and petrochemical industry needs the most advanced mechanisms for the success of their operations. This is because they deal with materials that are highly toxic and inflammable, and are used under high pressures and temperatures. The Reflex & Transparent Level Gauge is one mechanism that is extremely suitable for this industry. Reflex & transparent level gauges are preferred due to their ruggedness, sturdiness and low initial costs. They are installed to give easy level reading by viewing the position of liquid through tough glass panes.
    ...more
  • REFLEX LIQUID LEVEL GAUGE

    REFLEX LIQUID LEVEL GAUGE

    Get Price Quote

    Reflex Level gauges are designed to operate based on the difference in the refractive indices of Liquid and vapor. Liquid Flows through the gauge chamber behind the viewing glass located on only one side of the instrument and which is clamped to the gauge body. When liquid is present the glass will Appear black where it is in contact with the process medium and when no liquid is present the Glass is silvery or white thus the level can be seen. SPECIFICATION Range: 0- 3000 mm Maximum Pre & Temp: 220 Kg/cm2 & 400 ºC Liquid Chamber: CS, ASTM A 105, SS 304, SS 316L, Monel, Titanium, Inconel 600, Hastelloy Cover: CS, ASTM A 105, SS 304, SS 316L Gasket & Cushion: IFG 5500, CAF, PTFE, Graphoil SS316 reinforced, Graphoil SS304 Glass: Toughened Borosilicate Size 115, 140,165,190,220,250,280,320,340 Options: Frost Free Extension, Mica Shield, NACE Wetted Part, Heating Jacketing, Cooling Jacketing, Scale, Type of Isolation Valve Type of Model: PERL-30, PERM-85, PERH-170, PERHH-220, PERLC-28, PERW - 120 APPLICATION High pressure and temperature, Storage tank, Chemical plants, Process and Power plants, Boiler Drum Level and Process Heaters, Chemical / Fertilizer plants, Bulk Carriers, Applications for viscous coloured and interface liquids
    ...more
  • Reflex Level Gauge

    Reflex Level Gauge

    Get Price Quote

    We provide premium quality Reflex Level Gauge, which is widely used for measurement of liquid level in a vessel or tank at a glance. Designed as per the the basic optical principles of light refraction & reflection, our Reflex Level Gauge provides enhanced indication of liquid level. Working : The light strikes the area of glass covered by the liquid, the area appears dark (Black)While the light strikes the open space, that the area appears silver-white Widely used in : High pressure Storage TanksHigh Temperature Storage TanksToxic Liquid Storage Tanks Specifications TypeReflex / TransparentVisibilityFull Visibility / Partial VisibilityLiquid Chamber Carbon steel, S.S.304, S.S.304 (L), S.S.316, S.S.316 (L), P.PCover PlateCarbon Steel, S.S.304, S.S.304 (L), S.S.316, S.S.316 (L), P.PGasketCAF, PTFE, Graphoil, Other On request GlassBorosilicate Toughened of Indigenous Temperature Range upto 125oC , Klinger / Maxos Make Temperature Range Upto 400oC , Other on request FastenersAlloy Steel, S.S.304, S.S.316, Other on requestIsolation ValveScrewed OR Auto Shut of ball check Isolation valveProcess ConnationFrom 15mm to 65mm Flanged/ Upto 25mm Screwed/ Socket Weld, Other on RequestConnection OrientationTop Bottom Vertical, Side Side Right , Side Side Left , Side Side Back , Other on RequestVent / Drain½ Plug, ½ needle Valve, ½ Ball Valve. Other on Request. AccessoriesFrost- Free attachment for avoiding ice formation on glasses & clear Visibility.
    ...more
  • Reflex Level Indicator

    Reflex Level Indicator

    Get Price Quote

    Reflex Level Indicator, Level Indicators, Water Tank Float Switc
  • Reflex Indicator

    Reflex Indicator

    Get Price Quote

    Reflex Indicator, Mica Insulated Band Heater, Digital Temperature Controlle
  • Reflex Level Gauges

    Reflex Level Gauges

    Get Price Quote

    Reflex Level Gauges, Sovereign Pressure Switches, Loop Powered Indicato
  • Reflex Type Level Gauges

    Reflex Type Level Gauges

    Get Price Quote

    Reflex Type Level Gauges, Magnetic Type Level Gauge, Flow Transmitter
  • Reflex Level Indicator

    Reflex Level Indicator

    Get Price Quote

    It is designed for most critical requirements of liquid level in vessels under high pressure & temperature condition in petrochemicals, fertilizer and pharmaceuticals & chemical industries involving inflammable toxic liquid, high temp Liquids.
    ...more
