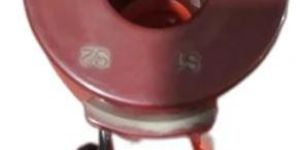

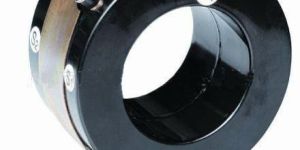

Ring Type Current Transformers Dealers (29 products available)

• Brand Name: Shiv
• Phase: Single Phase
• Frequency: 50 Hz
• Power Rating: 5 VA
• Cooling Type: Air Cooled
• Input Voltage: 660 V
• Winding Material: Copper
• CT Ratio: 600/5A

• Frequency: 50 Hertz
• Phase: Single Phase
• Core Type: Ring Core Type CT
• Rated Power: 15 KV
• Winding Material: Copper
• Operating Temperature Range: -10 to 50 Degree Celsius

We are Ranked Amidst the Chief Ring Type Current Transformer Manufacturers, Exporters and Suppliers in India. Our Ring Type Current Transformer is Available from 505 to 30005 and Thereon and is Known for Its Better Strength and Reasonable Prices.

• Phase: Single Phase
• Rated Power (VA): upto 30VA
• Rated Voltage: 415V
• CT Ratio: up to 75000 A
• Accuracy Class: 0.2, 0.5, 1 or 3, 0.2s, 0.5s, 5P10, 5P20, PS
• Rated Power: up to 30VA
• System Voltage: upto 1.1kv
• ILV: 0.66/3kV
• Type of Insulation: Tape Insulated

• System Voltage: 720V maximum

Rated Primary Rating: 30 to 600A, Rated Secondary Output: 5A, Rated Burden: 1.5 to 5VA, Accuracy: 1 to 5, Operating Frequency: AC 50Hz 60Hz.

offering quality L.V. Tape Wound & Cast Resin Transformers of multi range that is manufactured using quality components, which are procured from reliable vendors. These are acknowledged among clients for long functional life, high efficiency, hassle free performance and robust construction. These are widely used in various industries for measuring, protection & for special protections purpose (CLASS: PS) (restricted earth fault & differential protection systems)

we are adding instruments transformers, both current & voltage Transformers to our range of product. Group of Current Transformers designed & constructed in compliance with below standards: Transformers have been successfully tested in ERDA, Vadodara for type test as per IEC: 61869-2. ‘elmex’ has set up all the test facilities in- house to conduct all routine tests as well as certain type test.

Control transformers rating: from 100 VA to 20000 VA,Reference Standard : IS 12021 (1987) Input Volatge Rating: 120V-240V-380V-415V-440V,Output Voltage: 12V-24V-48V-110-120V-220V-240V,Dielectric strength : 2 KVeff ,50 Hz for 1 min,Operating Frequency :50 – 60 Hz,Temperature Class: F -155 °C

• Core Type: Bar CT, Ring Core Type CT, Split Core Type CT, Wound CT
• Brand Name: alpha
• Material: copper
• Accuracy Class: 0.2, 0.5, 1 or 3
• Size: as per buyer specification

Mahendra Electrical Works is the established name in manufacturing of Bushing CT's for almost 3 decades. These Cts are used in distribution and power transformers upto 500MVA capacity and voltage class upto 400kv. Mahendra Electrical Works has been supplying bushing CT's to all major transformer manufacturers in India like CGL, EMCO, Alstom, Bharat Bijlee, Transformers and Rectifiers India Ltd., Asea Brown Boveri. All products of Mahendra Electrical Works have been approved by major consultants, electricity boards and railways.   Features: Mounted inside the transformer tank It replaces the outdoor C.T. in the switchyard hence cost effective and maintenance free Used for protection of high value power transformers C.Ts. are manufactured in single as well as multi core, multi ratio Details required for ordering the bushing C.Ts. Transformer Ratio Number of Cores Accuracy Class Rated Burden Knee point Voltage Excitation current i.e. imag at specified % of vk Secondary winding resistance C.T. dimensions on request i.e. A, B, C

Ring type ( or rectangular type ) CT are normally preferred over other types of CT. because they are simple in construction, mechanically stronger and cheaper. In a ring type bar primary type CT the working ampere-turns are determined by the primary current and therefore necessarily, the accuracy that can be offered with these CT becomes progressively inferior as the rated primary current decreases.'-If higher accuracy and burdens are required for CT of low primary current wound types CT are used.

• Color: Black
• Core Type: Ring Core Type CT
• Rated Voltage: 220 V
• Accuracy Class: 0.5
• Usage/Application: Electric Fitting

• Features: Easy installation, Free from flaws, Rugged design.
• Range: 11 kv, 22kv & 33kv to suit National / International Standards
• Mount Type: Indoor Panel Mounting

FEATURES Motor-generator sets,Commercial Metering Current Sensing,recording,monitoring & control Control panels(VCB,AMF,APFC,MCC,PCC & Relay Panels) and Drives

We are ranked amidst the chief Ring Type Current Transformer Manufacturers, Exporters and Suppliers in India. Our Ring Type Current Transformer is available from 505 to 30005 and thereon and is known for its better strength and reasonable prices.

ring type current transformers, Instrument Transformers

Ring Type Current Transformer, Core Balance Current Transformer
