Spherical Bearings Dealers

This type features a large load rating capacity and self-aligning capability. Cylindrical and Tapered bore are available, as are Adapter assemblies and Withdrawal sleeves. Suitable for low or medium speed applications which involve heavy or impact loading.

These precision bearings are made by bimetal material,with high accuracy Machining controlling limits And tolerance make it performance excellent And durability, used in cylindrical grinding machine, HMT, LANDIS.

We are offering excel series spherical roller bearings.the spherical raceway of outer rings are manufactured and assembled focusing to the center of bearings. barrel type rollers and cages are assembled with inner rings. nachi spherical roller bearings are suitable for high axial , impulse and heavy load applications such as paper manufacturing, rolling and other large size machineries.

Product specification a spherical bearing is a bearing that permits angular rotation about a central point in two orthogonal directions (usually within a specified angular limit based on the bearing geometry). Typically these bearings support a rotating shaft in the [bore] of the inner ring that must move not only rotationally, but also at an angle. Spherical bearings can be of a hydrostatic or mechanical construction. A spherical bearing by itself consists of an outer ring and an inner ring and a locking feature that makes the inner ring captive within the outer ring in the axial direction only. The outer surface of the inner ring and the inner surface of the outer ring are spherical and are collectively considered the raceway and they slide against each other, either with a lubricant, a maintenance-free or they incorporate a rolling element such as a race of ball-bearings, allowing lower friction. Spherical bearings are used in countless applications, wherever rotational motion must be allowed to change the alignment of its rotation axis.

We have come up with the finest range of LS Radial Spherical Plain Bearings. These LS Radial Spherical Plain Bearings come from reputed vendors. Our LS Radial Spherical Plain Bearings are manufactured using best quality raw materials for guaranteed durability. Moreover, our LS Radial Spherical Plain Bearings come at reasonable prices. Our LS Radial Spherical Plain Bearings Are Known For High enduranceAccurate dimensionsPerfect makeReasonable price Grades And Standards GE..CGEG..CGEBJ..CGEFZ..CGE..NGEG..NGEFZ..TGEH..HCGEH..HCSGEC..HCGEC..HCSGE..ET-2RSGE..XT-2RSGEG..ET-2RSGEG..XT-2RSGE..ET/XGE..XT/XGEZ..ET.2RSGEC..XTGEC..XT-2RSGEH..XTGEH..XT-2RSGEC..HTGEH..HTGE..XF/QGEC..XF/QGEH..XF/QGEH..HF/Q

�M/s ETS ENGINEERING� is proud to present world class Spherical Rollers Bearings which are designed using structures of radial and axial bearings. The unique design of our Spherical Rollers Bearings allows it to work efficiently even when the shaft is misaligned due to excess load. Our Spherical Rollers Bearings are highly preferred to do work when heavy duty load carrying in involved, or in cases where establishment and maintenance of housing aligning is not possible. We offer our Spherical Rollers Bearings in complete customized forms as per the need and requirements of the clients. These durable and strong bearings have placed us among the leading Spherical Rollers Bearings manufacturer and supplier from Delhi. Features : Combination of radial and axial bearingsWorks efficiently even when the shaft is misaligned due to excess loadHighly preferred to do work when heavy duty load carrying workCustomized solutions availabledurable and strong

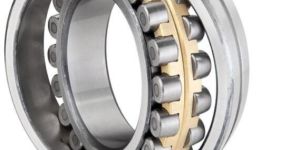

We can be contacted for procuring Double Row Spherical Roller Bearings as per the requirement. Designed with utmost care, our Double Row Spherical Roller Bearings consist of an outer ring with spherical raceway and an inner ring with double-raceway one or two cages and one group of spherical rollers. They have a high load carrying capacity of radial load and axial load in two directions. Permitting lower limiting speed, the Double Row Spherical Roller Bearings are suitable for carrying heavy loads and impact loads. Further, Double Row Spherical Roller Bearings are available in different designs and specifications to suit all industrial requirements.

With this model, a special copper alloy with high conformability is inserted between the steel outer ring and the spherical inner ring in which only the spherical area is hard chrome plated. This structure makes this model a highly rigid Spherical Plain Bearing with high corrosion resistance and high wear resistance.

Spherical roller bearings are self-aligning bearings designed for heavy radial loading. They automatically compensate for large angular errors (shaft misalignments). They are usually of the double row design, both the rows of the rollers having common spherical raceways in the outer ring. This feature of this bearing has great practical importance in those cases where it is difficult to obtain exact parallelism between the shaft and housing both axes. So these bearings are suitable where misalignment can arise from mounting errors or from deflection of the shaft. They have the ability to take static as well as dynamic misalignment. Spherical roller bearings are particularly suitable for carrying heavy loads. They are commonly found in Industrial Gear boxes, Conveyors, Cement Grinding Rolls, Sugarcane crushers and passenger coach axle boxes of Railways.

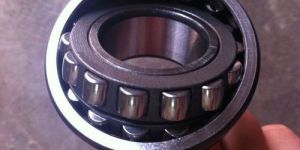

Spherical Roller Bearing has a barrel shaped roller. It has medium to heavy loads capabilities, medium friction and misalignment capabilities. It is also available withBearing dealers in oman. This bearing are commonly used in high load applications like Gearboxes, conveyors, paper machines, pulp and process equipment.

Spherical roller bearings consist of an outer ring having a continuous spherical raceway within which operates two rows of barrel-shaped rollers, which are in turn guided by an inner ring with two raceways separated by a center rib. This bearing has self-aligning properties, and therefore is suited for use where misalignment between the inner and outer rings occurs from housing installation error or shaft flexure.

Axial spherical roller bearings are single row, self-aligning roller bearings. They comprise solid shaft and housing washers and asymmetrical barrel rollers with cages. The cage holds the roller and cage assembly together with the shaft locating washer. The bearings can be dismantled. The parts of the bearings can be fitted separately. Axial spherical roller bearings can support very high axial loads and permit relatively high speeds. Both under the harshest of operating conditions. For example in gearboxes, calenders, engines in marine applications and rudder engines, lifting gear, construction machinery and rolling mills.

Spherical Plain Bearings consists of an inner ring with sphere convex outside surface and an outer ring with a corresponding sphere, but has concave inside surface. Their design makes them suitable for bearing arrangements particularly where alignment movements between shaft and housing has to accommodate, or where oscillating or recurrent tilting movements must be permitted at relatively slow sliding speeds.

Split spherical bearings are divided into two structures: Split Cylindrical Roller Bearings and Split Spherical Roller Bearings. It is mainly used for trunnion of converter on the steel-making. And this kind of bearing is easy for mounting, dismounting as well as protection and maintenance.

Our streamlined inventory system and capacious warehouse assist us in meeting the bulk requirements of the customers. Also, we ensure year round availability of the products. Due to our commitment towards providing quality approved products to the clients, we source the raw materials only from the well-known and trusted vendors of the market.

We provide some of the best quality Spherical Bearings that are available in the market. Spherical Bearing serves some of the most important of functions in the process it is used in and therefore our products are made from the best quality materials so that the efficiency of the client is not compromised. Our large scale clients include bulk buyers, dealers and retailers.

  Regular bearings Hi temperature bearings Extra large size bearings for steel plants and heavy industries
