Suspended Magnets Dealers

This unit simply suspended above the conveyor belt or the head pulley and lifts tramp metal from the product burden as it passes through the powerful magnetic field. Four eyebolts are provided for suspension (suspension chain not included). Cleaning is achieved by manually removing the collected tramp metal from the face of the magnet. E-Z CLEAN options are available to simplify cleaning. Available in permanent and electromagnetic designs. Suspension Type Magnets use is recommended for low contamination products.Over band type Magnetic Separator is recommended for this type of application. The capacity of suspended magnet is 20 inch coverage area The principal applications are for processing of bulk products such as Culets, Glass, Cofee, Cereals, Minerals, Coal and Sugar etc

Suspension magnet are designed to extract occasional tramp iron from the product stream by a conveyor belt or vibratory feeder. The magnet above a conveyor is placed at the right angle for optimum extraction. The suspension magnets are designed for the extraction of occasional tramp iron from the product steam conveyed by the conveyor belt.A suspension magnet can be suspended from the traveling trolley that can be moved away from the conveyor to be cleaned manually. Electro suspension magnet consist of aluminum or copper would coils immersed in the transformer oil. All electro suspension magnet comes along with control panel. The manually cleaned magnets should be provided with the stripper mechanism and no power consumption as well as virtually maintenance free.

PML Overband Magnetic Separators are placed above open conveyors to arrest ferrous objects and fines found in grains, feed stuffs, raw and processed products, dry chemicals, salt, ceramics, Clinkers in Cement Industry, Coal conveying in power plants and many other products. Overband Magnets are used for separating big Ferrous particles like lugs, nuts, bolts, rivets, ms plates, angles, channels and tools from moving material on a conveyor belt.

SPM is High Performance in over the conveyer belt application & also used to transporting goods one to another & also used application.

Bhupindra machines suspended permanent magnets are designed for high separation performance in over-the-belt conveyor applications. These heavy duty permanent magnets incorporation all welded construction are particularly effective in removing tramp metal in high volume applications.

We are known as the prime Manufacturer, Exporter and Supplier of the advanced Suspended Magnet. Our Suspended Magnet is used for the products that are carried by the belt conveyors. Besides, the Suspended Magnet is majorly recommended for products with low contamination and Over Band type Magnetic Separator is recommended for high impurities. Moreover, our Suspended Magnet requires frequent cleaning. Applications : SugarCoalMineralsCerealsCoffeeGlassCulets

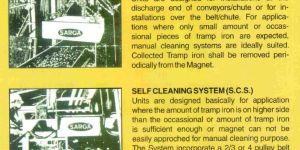

SARGA SUSPENDED MAGNETS extract large amounts of tramp iron from nonmagnetic materials moving over a Conveyor/Chute. SARGA SUSPENDED MAGNETS are most effective for positive removal of undesired tramp iron from bulk quantities of material on fast moving belts. These are ideally suited for coarse/fine, wet/dry, large/small size material. SARGA SUSPENDED MAGNETS are available in various Magnetic strengths to suit specific requirements. One can select ideally suited magnet for individual application to get desired results without oversizing the magnet. These are NON - ELECTRICAL type and hence Independent of Electric Power No Operational/Running Costs No Maintenance Costs No replacement of parts/coils required and over and above no weakeninand over and above no weakening of magnetic strength in the course of use.

Shreenath Suspension Type Magnets are most useful for products carried by the Belt Conveyors. Use of Suspension Type Magnets is recommended for products with low contamination. However if the frequency of the impurities is too high, these will make a layer shunting magnetic field. The equipment will require frequent cleaning. For such applications Over Band type Magnetic Separator is recommanded.  The main applications are for the processing of Bulk products such as Sugar, Coal, Minerals, Cereals, Coffee, Glass, Culets etc.    Installation : JMPL magnets can be installed either at the end of the belt above the head drum (Fig 1), or across the conveyor belt ( Fig. 2 ). In both cases, to avoid disturbances to the magnetic field, a magnetic parts must be placed below the surface of the magnet. The installation shown on figure 1 is preferable for high speeds. Separation is more efficient due to the trajectory of the fact that it is then "fluidized".

Use of Suspension Type Magnets is recommended for products with low contamination. However if the frequency of the impurities is too high, these will make a layer shunting magnetic field.

Heavy Power Suspended Magnets are designed for extraction of tramp iron from materials conveyed in heavy burden depths on almost any type of conveyor of chutes. This unit simply suspends above the conveyor belt or the head pulley and lifts tramp metal from the product burden as it passes through the powerful magnetic field. It Removes iron from material in process such as nut, bolt, foundry sand, glass cullet etc.     Application   Protection of processing equipment such as crushers, pulverizes, conveyors, belts, screens, etc. Useful in Stone crusher plants. Best product for Coal Handling Plant.   Features   Self-cleaning models Custom support frames Magnet's support bolts which allow vertical height adjustment over belt Rugged all-welded construction Customized sizes available as per customer's requirement

We are offering permanent suspended magnets. Erich permanent suspended magnets are widely used for removal of tramp iron from raw or finished material carrying over a belt conveyor of considerable depth but relatively small percentage of tramp iron. Since a suspension magnet needs to be cleaned periodically, it is used in installation which affords access to the magnet area. If the percentage of iron is high erich (self cleaning) over band magnetic separators should be installed. The obms is basically consists of a belt conveyor into which is fitted a suspension magnet. The trapped iron remains on the belt surface which takes it beyond magnetic path and discharge it into a chute. attributesuseful to remove undesired metaleffective on dry or wet, fine or coarse materialmaintenance freeno requirement of power source.

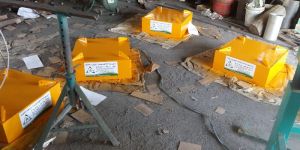

Suspended Permanent Magnet offered come in quality construction finish and provide for optimum functional usage in different industry sectors. As leading manufacturers, suppliers and exporters of Suspended Permanent Magnet in Tamil Nadu, India, we ensure that come with quality welding support from all sides that allows it to be used in mounting position on bottom plate or in hanging form through support of chain & eye bolt. Some of its features include available in customized finish as per international standards; provided with easy cleaning slider plate; makes use of powerful permanent magnets that allow effective removal of magnetic parts from flow of raw material passing through conveyor belt in production line.

We are offering suspended permanent magnets. Suspended permanent magnets are developed for high separation performance in over the belt conveyor applications. These heavy duty permanent magnets are used in welded construction and are effective in removal of tramp metal in high volume applications. Features » permanent magnet field » no electrical hook ups » compact design » heavy-duty impact plate » stainless steel angled cleats options » stainless steel plates » turn buckles » easy clean stripper pan » suspension kit for fixed mounting to conveyor frame suspended electromagnets the electro magnets are fabricated for high volume applications. The biggest advantage of this is the “deep reach” and to be turned on and off ability. Built over a vibratory bed or belt conveyor, these magnets have strength, robust and long lasting. Top features » non-combustible coolant » internal expansion tank » insulated copper/aluminium coils » heavy-duty impact plate » stainless steel angled cleats options » stainless steel wears plates » turnbuckles » voltmeters » amp meters » line fuses » disconnect switch

Suspended magnets of highly durable and reliable Suspension Magnet. Fabricated from fine quality raw material these products exhibit fine engineering.

Using the best quality materials, we produce suspended magnets. Suspended magnets are installed above the open conveyors to clear the ferrous objects and fines found in grains, feedstuffs, dry chemicals, and other particulates. The metallic contaminants are usually pulled out by the suspended magnets. The ferrous are collected on the self cleaning magnetic separator belt and are conveyed and discharged through the hopper. We manufacture suspended magnets in different sizes matching to the width of the belt. They are are outfitted with eye bolts for handling the overhead suspension. The magnets used in suspension are normally ceramic magnets or rare earth magnets which have the capability to lift the tramp-iron objects from considerable distance.

Suspended Permanent Magnet, Permanent Lifting Magnet Syste

We are offering suspended magnets for installation over conveyor belts and used for catching tramp iron pieces from the belt.
