Tablet Counting Machine Dealers

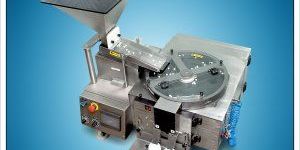

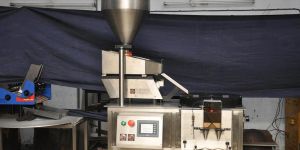

We offer tablet and capsule counting machine specification as following •machine size length 1000mm , width 650 mm , height 1100 mm. •machine weight 150 kg. Approx. •machine structure stainless steel 304. •fully automatic machine ( p.l.c based ). •air pressure 1 kg. •variable speed available. •electric power 230 volt, single phase. •tablet / capsule per mint. Counting 700 pcs. ( depend on tablet shape /size ).

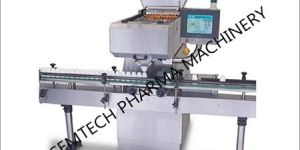

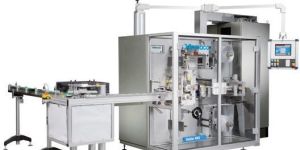

The machine is compact, easy to operate and maintain. The photoelectric scanner at the filling station counts the pre-determined quantity of the capsules/tablets and stops automatically until the next container is placed at the filling station. The machine is incorporated with two filling nozzles for continuous counting and filling.  SALIENT FEATURESPLC system with HMI. No change parts required. Glass Rotary table. No-bottle-no-fill arrangement.

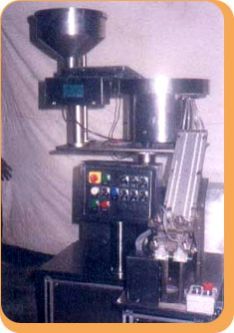

Machine counts set number of tablets. Vibratory bowl feeder feeds and fills them into 2 card packs simultaneously.   Capacity 20-25 card packs / min.

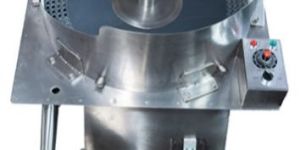

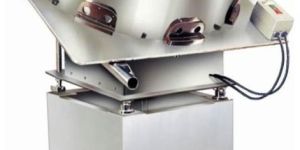

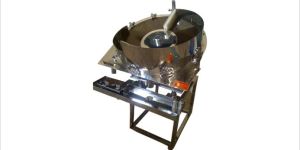

Silent Features: To count 1 to 1000 Capsules/Tablets 36" Dia Disc providing highest filling capacity Custom Designed disc to match specific needs Special Dust Extractor to remove Dust Particles from the passage of the Container Fitted with Heavy Duty Gear Box   Technical Details : Motor 440 Volts 3 Phase - 50 C/S 1 HP with Starter Speed Control Variable - Speed Drive 1440 RPM   Output: To count 1000 Tablets/Capsules in Bottles and Polybags 1000 Tablets/Capsules 5/6 Fills/Min 500 Tablets/Capsules 5/10 Fills/Min 250 Tablets/Capsules 10/15 Fills/Min 100 Tablets/Capsules 25/30 Fills/Min

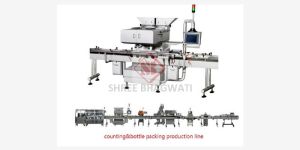

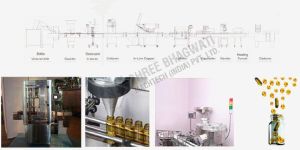

Bhagwati Pharma is leading Tablet Counting Machine and Capsule Counting Machine manufacturer specialized in Tablet Counting Machine, Tablet Counting Line, Capsule Counting Line, Capsule Counting Machine, Bottle Unscrambling Machine, Labeling Machine Manufacturer, Desiccant Inserting Machine, Cotton Inserting Machine, Capping Machine Manufacturer, Leaflet Outserter, Blister Packing Machine, and Capsule Filler Manufacturer , Desiccant Inserting Machine, Cotton Inserting Machine, Capping Machine Manufacturer, Leaflet Outserter, Blister Packing Machine, Capsule Filler Manufacturer.     Bhagwati Pharma high volume off-shore (ISO 9001- 2000 & CE Certified) manufacturing makes it possible to provide their customers with the finest and most reliable packaging systems combined with local service. Bhagwati Pharma offers total responsibility for installation, training and on-going service. Please send us your inquiry today regarding our Tablet Counting Machine, Capsule Counting Machine, Tablet Counting Line, and other products.

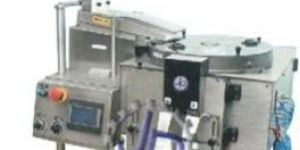

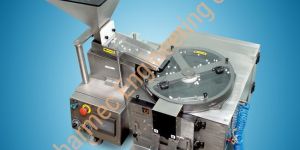

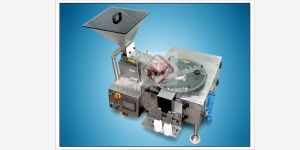

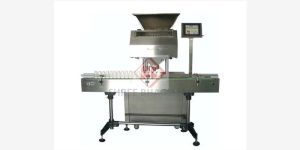

Semi Automatic capsules / tablets digital counting and filling machine is ideal for small / large scale pharmaceutical units. The machine is compact, occupies minimum space, simple to operate and easy to maintain. Operation : Filled capsules / tablets are fed into the hopper. The amplitude of vibration can be controlled to synchronize and achieve the required counting speed. The capsules / tablets move along the periphery and are aligned to enter the adjustable guide channel in single line along the track to pass through the beam of Photoelectric Fiber Optical Sensor / Scanner at the filling station. The photoelectric scanner counts the pre-determined quantity of the capsules / tablets and stops automatically until the next container is placed underneath the Filling nozzle. The machine is  incorporated with two filling nozzles for continuous counting and filling. One bottle is always in place for filling. The operator simply picks up a filled bottle and replaces it with an empty bottle. A No-Bottle-No-fill sensor is provided at the bottle holding station. Once the  bottle is filled, the machine stops automatically.     Salient Features : Product contact parts SS 304 / SS 316 / SS 316L quality (except rotary tablet ). Photoelectric Fiber Optical Sensor / Scanner for sensing capsules / tablets. Counting speed is adjustable through variable Frequency Drive. Amplitude of vibrator is adjustable to meet counting speed. Programmable Logic Control (PLC) system with HMI enables visual display of the operating parameters besides ensuring accuracy, reliability and reduced operator fatigue. No change parts required. Glass Rotary table. No-bottle-no-fill arrangement. OUTPUT (Approx) Tablets – 1000 to 1800 per minute  Capsules – 1200 to 1500 per minute   TECHNICAL SPECOFOCATOPMS : Main Drive : 0.25 HP, 220volt, 3 Phase, 50 Cycles, 1400 RPM   Overall Dimension : 1150mm (L) x 950mm (W) x 1600 mm (H)   Net Weight (Approx) : 1050 Kg.

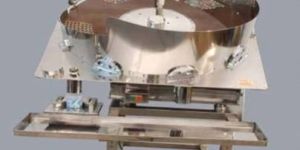

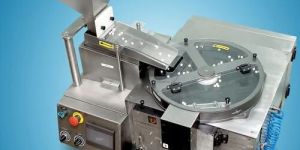

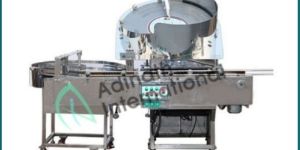

Product Description A unique machine to count &fill tablet /capsule in plastic /glass bottles in bulk quantity. Tablet Counting Machine gives promised capacity of fill. Each disc is designed and manufactured to count coated/uncoated tablets, hard or soft capsule. One bottle can be filled at a time through one single -track filler, one set of machine can fill four bottles at the same time which enhances the output. The rpm varies depending upon the product. Delivery chutes direct the product from the counting disc into filler tubes of various sizes to suit different containers. Integrated with the filler, under the hopper is the system that provides dust free passage of stocks to the containers. The special Dust Extractor system to remove dust particles from the passage to the container and enables efficient and smooth running of the disc when uncoated tablets are counted.   Application : Pharma Industries, Ayurvedic Industries, Pesticides Industries, Veterinary Industries Machine Size Length 1000 mm, Width 650 mm, Height 1100 mm Machine Weight 150 Kg. Approx Machine Structure Stainless Steel 304 Fully Automatic Machine (PLC Based) Air Pressure 1 Kg Variable Speed Available Electric power 230 Volt, Single Phase Tablet / Capsule Per Mint. Counting 700 PCs. (Depend on Tablet Shape /Size)

Packs Tablets Capsules upto 12" dia upto 38 " dia capsules "0" capsules 1,2,3,4,5 1000's 5 fills per min 5 fills per min - 5 fills per min 500's 5 fills per min 10 fills per min 5 fills per min 10 fills per min 250's 10 fills per min 15 fills per min 10 fills per min 15 fills per min 100's 20 fills per min 25 fills per min 15 fills per min 20 fills per min 50's 25 fills per min 30 fills per min 20 fills per min 30 fills per min 20's 30 fills per min 30 fills per min 20 fills per m

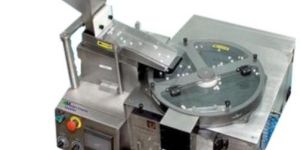

Competencies » Total CGMP model » Frame Made from SS-structure. » Sleek sturdy and compact design » All controls from panel » PLC - HMI touch screen. Features » No bottle change parts required » Quick setting to adjust to the tablet/capsule size & shape » Very high accuracy for piece counting » Tablet/capsules are filled in hopper » It is conveyed to rotating orienting disc with help of vibrator. » Vibrator will start & stop on sensing level on rotating disc » Rotating disc will orient tablet/capsule in one line » After that tablet/capsule passes to counting junction and gets filled into bottles » Auto change over flap Accessories » Production Counter » Pre/post Inspection device Utilities » 230V, I-phase, 50hz electric supply » Electricload:- 2HP APPLICATION » To count tablets and capsules and fill them in bottles » Tablet/capsule diameter-width :- up to 15mm » Bottle diameter:- 30mm to 150 mm » Bottle height:- 30 mm to 150 mm *The output of the machine depend on capsule/tablet geometry. *Specification subject to change without prior notice.

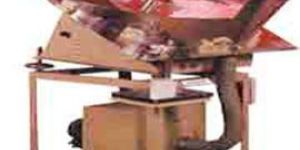

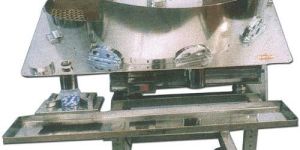

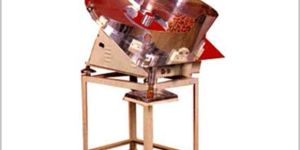

Hi-Tech Semi Automatic Counting & Filling Machine is very useful to Pack Tablets & Capsules in Loose form. It is very simple , maintenance free unique model for high accuracy & Low Labor cost . SALIENT FEATURES: •ADJUSTABLE FILLER:The Filler can be elevated from 20 to 35 degrees to facilitate                                             entry of every production to the disc holes. •GEAR BOX AND DRIVE: Heavy Duty Gear Box for long life smooth Operation, 3                                                Phase ~AC 1 HP motor 1440 RPM. •OPTIONAL: DUST REMOVING VACUM SYSTEM: That provides Dust Free Tablet                        while filling. •OUTPUT: 2 to 5 Fills per minute (Depend upon the product).

These highly efficient machines can easily count and pack capsules & tablets counting machine of any size. The trouble free operations and accurate results of these semi-automatic machines help in maintaining GMP standards. The machine is provided with adjustable filler which can be elevated from 20 to 25 degrees, to facilitate entry of the products into the disc holes Capsule counting machine is fitted with superior quality delivery chutes which direct the product from the counting disc into the stainless steel filler tubes of various sizes, to suit different containers, suitable to work on 3 phase ac, 1 HP motor, 1440 rpm with variable speed drive.

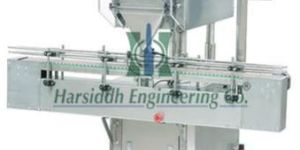

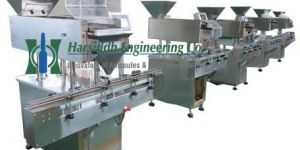

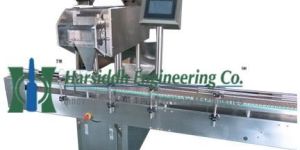

Counting of manufactured products has become of primary importance in the pharmaceuticals due to the need to account for the production volumes. In this regard, Harsiddh is pleased to offer modern state of the art tablet capsule counting and filling machines. Our product portfolio includes automatic capsule counting and filling machines, electronic tablet counting and filling machine, multichannel tablet counting machine, tablet counting and filling lines as well as tablet capsule counting and packing line. Our specially designed automatic counting machines pack and count any type and size of tablet, capsules, caplets, soft gels pills and other solids. After extensive research by experts, our company developed a new patented filling part that ensures no breakage of products when packaging. The counting is 100% accurate due to advanced sensors to detect the products even when moving at high speeds. The machine is fitted with easy to use and ergonomic HMI interface and a state of the art PLC to make control and operation easy. In addition, the control system implement “no product” “no count” as well as removing broken bottles and tablets. To minimize idle times and maximize productivity, these machines do not require change of parts when filling different products. The filling machines are compact with ether a single or double conveyor systems. The delrin type conveyor is suitably designed for smooth, vibration and noise free operation.   Salient Features   Compact design Easy stainless steel or delrin conveyor best for smooth and noise fee operation. Machine operating through touch screen HMI with and PLC, operation is very easy, counting different size tablet or capsule no need change parts. Circumvent the products jamming Counting discrepancies is less than 1% High speed filling with one filling head Product Feeding Hopper mouth of the special construction, to avoid the products jamming. Small neck or mouth bottle can quickly filling Protect products from damage Feeding evenly with vibration, special patent filling part, no breakage of the products. Detection and sorting function “No bottle No count and fill” systems Automatically remove bottles of filling irregularities and broken tablets. Self-diagnose errors and stop working to make alarm at errors. Anti-dust systems Using our own original high anti-dust sensor technology, the machine works accurately with good stability in heavy dust conditions. Single operator easy operating systems All function and operating quickly through touch screen with PLC Different models available as per diverse production capacity Working ranges from 2 to 9999 pieces per bottle Wide range of models are 8 channels, 12 channels, 16 channels, 24 channels & 32 channels
