Thermal Detectors Dealers

Thermal detectors are essential for use in areas such as bars and kitchens where optical detectors are innappropriate because of the high levels of airnorne contamination to be found.

We offer the morley-ias range of intelligent thermal detectors are used with the zx series intelligent multi protocol fire alarm control panels to measure thermal levels caused by a fire and report the analogue level of the thermal measurement to the control panel. The use of analogue information provides significant benefits to the end user, installer and serviceman in ways which are not possible with a conventional type system. Since this detector is also addressable, it will help to quickly locate a fire during its early stages. features: dual thermistors rate-of-rise fixed temperature and high fixed temperature models common base for optical, ionisation and thermal sensors addressable-analogue communication stable communication technique with noise immunity low stand-by current rotary decade 01 to 99 address switches remote led output as standard dual led design provides 360° viewing angle visible led’s blink every time the detector is addressed (optional), and illuminate steady on alarm built-in functional test switch activated by external magnet optional relay, isolator, or sounder bases.

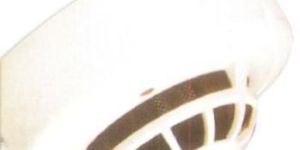

We offer high-performance Photo Thermal Detector that detects fires developing slowly or in a fast manner. Output of the thermistor and optical chamber is monitored using an onboard processor by a special algorithm. Features Detects incipient alarm quicklyOne time enabling of alarm signalUses a combination of inputsReduced nuisance alarmsExcellent response time to actual fire Demanded forMallsHotelsCollegesOfficesCinema halls

System Sensor 200 Series intelligent plug-in smoke detectors with integral communication provide features that surpass conventional detectors. Detector sensitivity can be programmed in the control panel software. Sensitivity is continuously monitored and reported to the panel. Point ID capability allows each detector’s address to be set with decade address switches, providing exact detector locations for selective maintenance when chamber contamination reaches an unacceptable level. Models 5251B and 5251RB use an innovative thermistor sensing circuit to produce 135°F fixed and rate-of-rise thermal detection in a low profile package. Model 5251H provides fixed high temperature detection at 190ºF. These thermal detectors provide cost effective, intelligent property protection in a variety of applications. Specification Height : 2.0 inches (51mm) Diameter 6.1 Inches installed in B210LP base 4.1 inches (104 mm) installed in B501 base Shipping Weight Heat 4.8 oz. (136 g) Photo/photo with heat 5.2oz. (147 g) ion 5.4 oz. (153 g) Operating Temprature Range Ion Photeo : 32-1200F (0-490C) Photo with Thermal 32-1000F (0-380C) Thermal : -4-1000F (-20-380C) High Temprature : -4-1500F (-20-660C) UL Listed Velocity Range Ion : 0 - 1200 fpm (0 - 6.1 m/sec) Photo with Thermal : 4000 fpm Suitabe For Installation in ducts Insect Screen Hole Size Photo : 0.016 inch (0.41mm) nominal Ion : 0.035 Inch (0.8mm) nominal Relative Humidity : 10-93% noncondensing Thermal Rating Fixed Temprature Setpoint : 1350F (570C) Rate of Rise Detection : 150F/min (8.30C/min.) High Temprature Heat : 1900F (880C) Voltage Range : 15-32 Volts DC Peak Standby Current (Max. Avg.) Ion/Thermal : 150 pA @ 24 VDC (without communication, LED off) 200 pA @ 24 VDC (one communication every 5 sec. with LED enabled) Photo/Photo With Thermal : 250 pA @ 24 VDC (without communication LED off), 300 pa @ 24 VDC (one communication every 5 sec. with LED Enables) LED Current (Max.) : 6.5 mA @ 24 VDC (on)
