Tilting Pad Bearings Dealers

(5 products available)

All IndiaAhmedabad Thane Kolkata Rajkot Vadodara

Round Tilting Pad Bearing

90 / Piece

MOQ50 Piece
Country of OriginIndia
Number Of FlowerTilting Pad Bearings
MaterialStainless Steel
ShapeRound
Thickness18 Mm
Rust ResistanceYes
Diameter48 mm

...more
Shree Raj Industries

Odhav, Ahmedabad

GST 4 yrs
Tilting Pad Bearings

Get Price Quote

Tilting-pad bearings deliver many advantages including: Improved dynamic performance of the rotor-bearing system and drastic reduction of instability caused by lubricating oil Bearing adaptability to shaft movements as a result of the ability of the shoe to tilt Uniformly distributed oil flow from equidistant radial feed holes Increased stability due to greater damping Lower spare parts costs and faster delivery since only the pads need to be changed In turbo machinery operating at high speeds, plain cylindrical bearings are susceptible to oil film instability. In this condition, also known as oil whirl, the shaft orbits within the clearance of the bearing. The tilting pad journal bearing uses tilting pads to provide geometries that change with variations in load or speed. This bearing offers the best stability at all conditions.
...more

Esteedee Autocom Engineers Private Limited

Wagle Estate, Thane

8 yrs

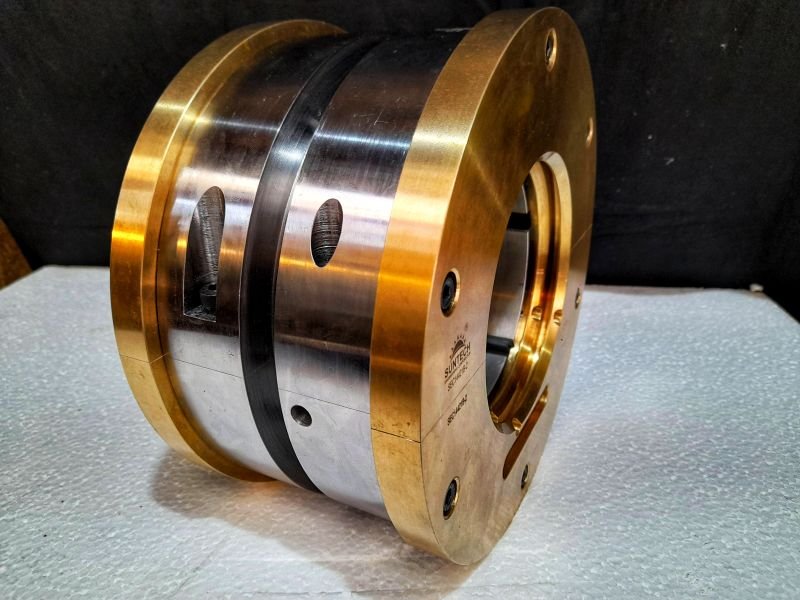

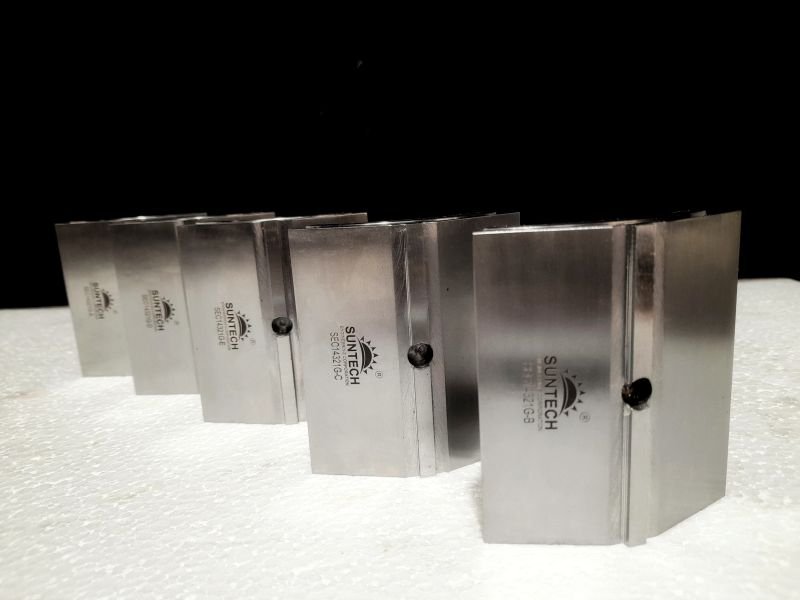

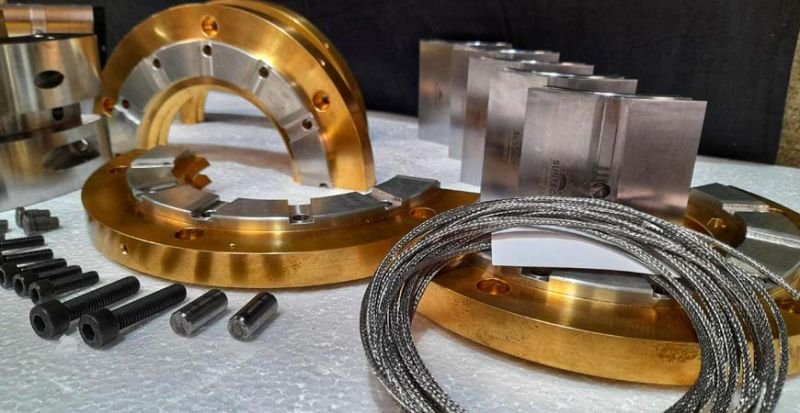

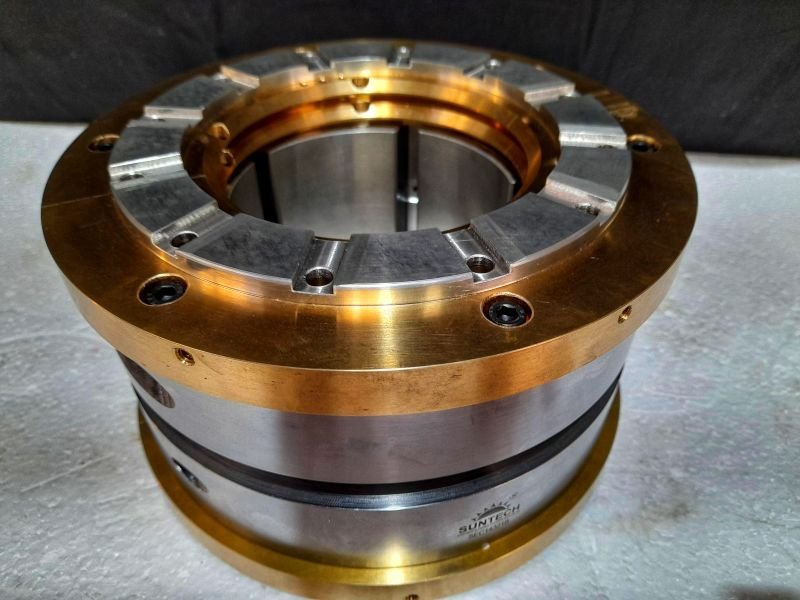

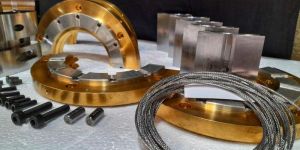

Tilting Pad Journal Bearing Assembly

50,000 - 300,000 / Set

Brand NameSUNTECH
MaterialIS 2004 / IS 25
FinishingPolished
ShapeCylindrical
ConditionNew
Automatic GradeOther
UsageIndustrial
CertificationISO 9001:2008 Certified
CapacityOther
Operating Temperature120
Packaging TypeWooden Box
Outer DiameterDIA 500
Bore Size50 TO 500
Overall Length5 INCH
Working Pressure3N/sq.mm
Packaging SizeOther
SpecialitiesShear Strength, Precise Design, Fine Finish, Precisely Designed
Dimensions (LXWXH)Other
Number Of FlowerTilting Pad Bearings
Thickness3-80mm
AvailabilityCustomized
Tensile Strength430MPa
Outside DiameterCustomized
Total Carbohydrate1 Year
Country of OriginIndia
Inside Diameter50 To 250
Number of RowBabbitt Bearing
Tolerance0.02 Mm
Corrosion ResistanceYes
Chemical ResistantYes
Rust ResistanceYES
Bearing NumberNIL
Corrision ProofYES
Babbitt BearingThrust Beating

Suntech® slide bearings are usually designed based on the principle of hydrodynamic lubrication which increases its reliability. When the calculation design and manufacturing conditions permit this type of lubrication, the slide bearings will fulfil all the requirements expected of them.It has been proven that plain cylindrical bearings built-up its carrying oil wedge by making possible clearance between bearing shell and shaft due to its eccentric position (converging film). Now a days various special geometry design has been implanted which are also based on hydrodynamic calculation as per DIN 31657. Tilting Pad Journal Bearing operations and it’s limits. The angle of pad tilt and the maximum film pressure and temperatures are directly take effect on Thrust Bearing operational excellence . The pads leading edge tilts open to provide a converging wedge to produce hydrodynamic load. The resultant load vector passes through the pad pivot As the maximum pressure is located not at the pad pivot location, but at some angle with rotation from the pivot. Thus, temperature sensors should be placed downstream from the pivot. A good rule-of-thumb is to locate the sensor at the 75 percent position as in Tilting Pad Journal Bearings. That is, at 75 percent of the total pad arc length from the leading edge, Suntech® Designed Tilting Pad Journal Bearings have all required advantages to fulfil all hydrodynamic effect. Advantage of Suntech® Tilting Pad Journal Bearing. Hydrodynamically stable at high speeds Accommodate varying conditions Less sensitive to load direction or shaft misalignment than fixed profile bearings Optimized lubrication for minimum power loss and pad temperature.

...more
SUNTECH ENGINEERING CORPORATION

Lenin Sarani, Kolkata

GST 9 yrs
Babbitt Tilting Thrust Pad Bearing

200,000 / perunit

Babbitt Tilting Thrust Pad Bearing, Babbitt Journal Cum Thrust Bearin

Metatek Engineering Pvt Ltd

Ajwa Road, Vadodara

GST 1 yr
Tilting Pad Bearings

Get Price Quote

Tilting Pad Bearings, Bearing Shells, Bronze Forging, Brasswar

Patel Brass Works

Bhaktinagar, Rajkot

21 yrs
