SpecialitiesShear Strength, Precise Design, Fine Finish
Dimensions (LXWXH)Customized
Number Of FlowerTilting Pad Bearings
DiameterCustomized
ThicknessCustomized
AvailabilityCustomized
Tensile Strength430MPa
Outside DiameterCustomized
Total Carbohydrate1 Year
Country of OriginIndia
Number of Row4- 5 Padded
Tolerance0.02 Mm
Corrosion ResistanceYes
Chemical ResistantYes
Rust ResistanceYES
Bearing NumberNIL
Corrision ProofYES

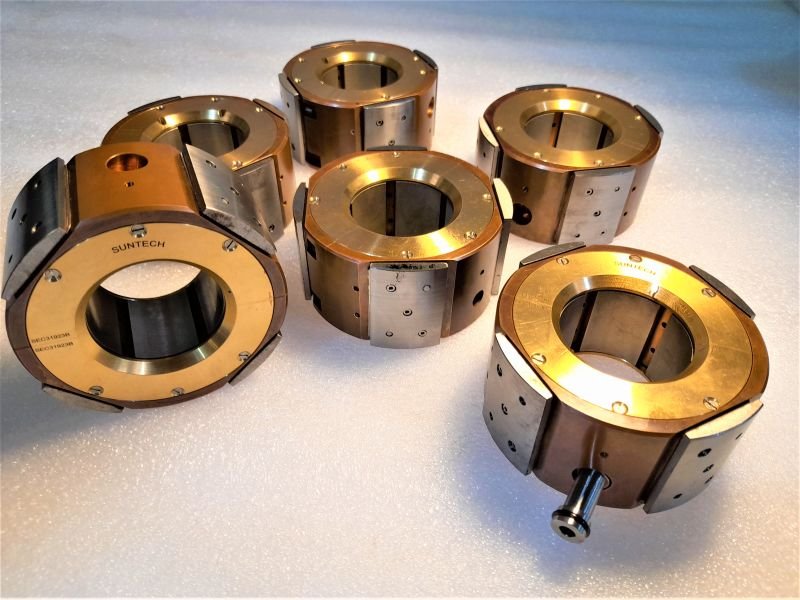

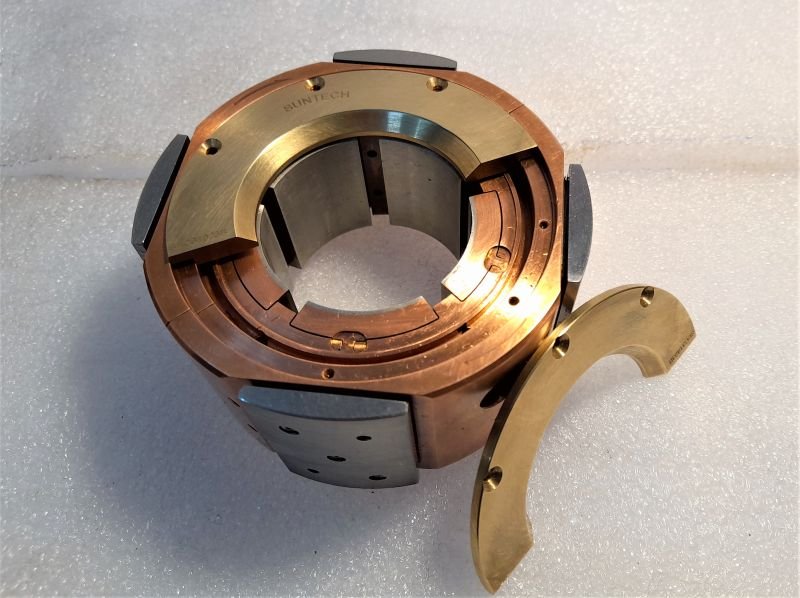

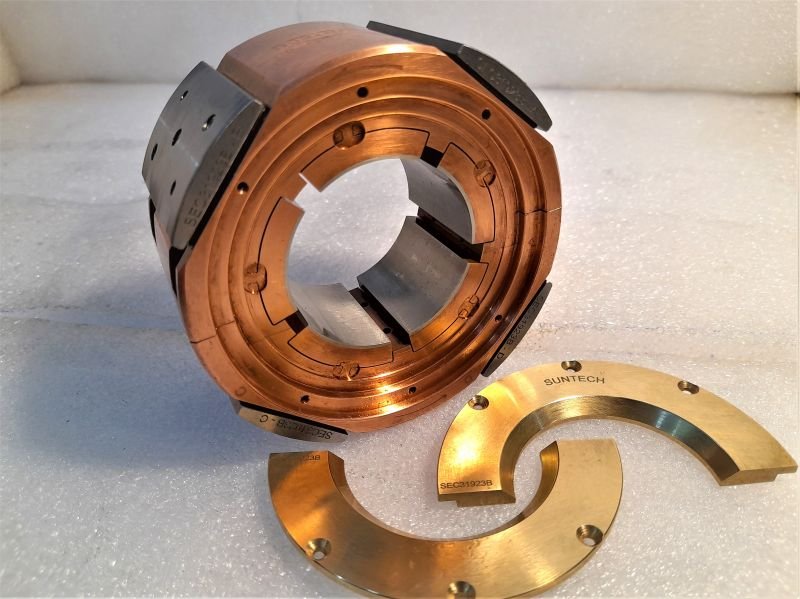

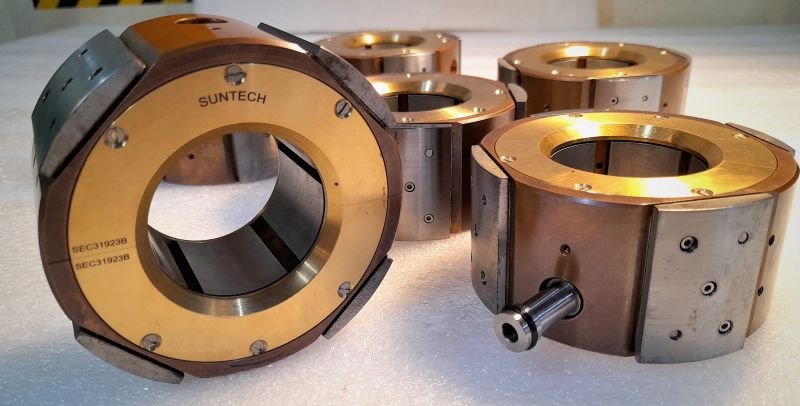

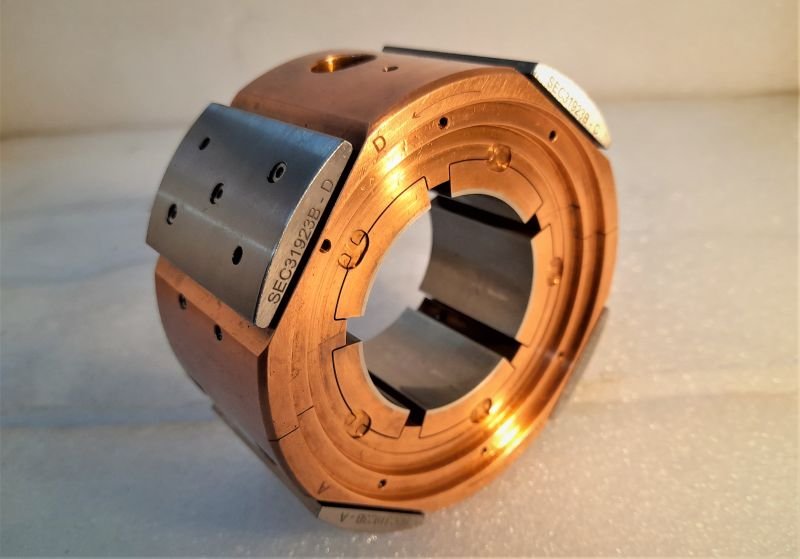

to handle high load and high speed input , suntech® maked flexifix pivottm tilting pad journal bearings are used worldwide by renowned oem’s and end user’s . they achieve low cross-coupling and high stability as well as eliminating high contact stresses, pivot wear and pad flutter.
high accuracy level of production and instrumentation facility enable suntech® to deliver flexifix pivot tm tilting pad bearing to the oem’s with customized feature
· flexifix pivot tm resulted in a lower oil temperature rise and frictional power loss.
· eliminates the complexities multipiece design.
· one-piece design offers better reliability due to the absence of relative pad movement that could lead to fretting corrosion due to high contact stress.
· the integral pad-pivot-retainer design of the flexifix pivot tm bearing eliminates most of the manufacturing tolerance stack up .
