Electronica Machine Tools Limited NIT, Faridabad, Haryana

Travel X x Y x Z : 300 x 200 x 250 mm Work tank : 800 x 500 x 350 mm Programmable Z axis 99 programs, 50 steps per program Hand-held remote control Built-in ‘Ez – GURU’ Head orbital (optional)

Robust Design CD Wide base bed with large span guide ways Full featured Advance CNC System Precise Fast Reliable

CNC VERTICAL LATHES TWIN STAR VERTICAL CNC LATHES CNC ULTRA PERFORMANCE VERTICAL TURNING CENTERS WITH C AXIS HEAVY DUTY VERTICAL LATHES CNC ULTRA PERFORMANCE HEAVY DUTY VERTICAL TURNING CENTERS WITH C AXIS TWIN TURRET CNC VERTICAL TURNING CENTERS DOUBLE COLUMN 5 AXES MACHINING CENTERS SPECIAL PURPOSE MACHINES

Spindle Taper R8 Rigid Construction with optional accessories- Digital readout – Power Feed for axes – Chip tray – Coolant System Variable Speed – 16 steps Table Sizes: 224 x 1370 Spindle power 3HP Head Stock Swivel & Incline – R & L 90o F & B 45o Guide ways – “V” Type for X & X axes, “Flat” for Y axis

Travel X x Y : 250 x 350 mm Max. work-piece height : 150 mm Max. table size : 370 x 600 mm Max. cutting speed : 70 mm2 min Taper : ± 5° over 50 mm Best surface finish : 1.2 µ Ra Compact Footprint e-Pulse technology

Travel X x Y x Z : 350 x 250 x 350 + 300 mm(Rapidrill) 400 x 500 x 350 + 300 mm (Smart drill) Work Tank : 450 x 300 mm(Rapidrill) 420 x 540 mm (Smart drill) DC Servo with speed-up function Integral design with compact footprint Ergonomically designed control panel Day Night mode for 24 hours operation Reverse servo for reverse sparking Reverse polarity for easy operation

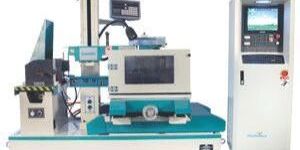

Lowest running costs Closed loop X, Y with linear scales Reciprocating Brass Molydenum wire Max. cutting speed : 60 mm2 min on Steel (HCHCr WPS) 120 mm2 min on Aluminium Surface finish : 1.2 ~ 1.5 µ Ra (with multi-pass) Taper : ± 3° 100 mm Inbuilt 2 axes DRO

Pallet Size — 320 x 320 (LH 300) 350 X 350 (LH 350) Pallet Changer — Rotary CNC System — Mitsubishi Fanuc Siemens. Ball Screw Cooling Spindle Oil Cooling System Roller LM Guide ways Efficient Chip management High Rapid Feed Optimize Foot Prints Quick & Easy Access for Maintenance

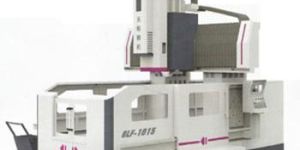

Robust Design & Rigid Construction Available in various sizes from X stroke = 1500 to 8000 Square shape Gantry Ram to increase the rigidity

Travel X x Y x Z : 300 x 200 x 250 mm Work tank : 800 x 500 x 350 mm Moving table type design Definable erosion axis High speed jump 1500 mmmin. Built-in ‘GURU’

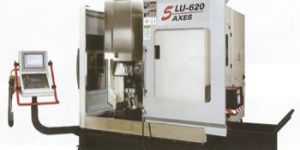

Innovative design. state of art technology Powerful 5-axes machining, excellent machining capabilities High-rigidity structural design, precision 5 axes machining High speed XYZ axes and high rigidity B and C axes Built in precision measurement system
