A.N Enterprises Sector 37, Faridabad, Haryana

Available in the following sizes (inches) : BW 12/ BW 15 BW 19/ BW 1215 BW 1519/ BW 17/ BW 21 BW 27

Self-Locking Available in the following sizes (inches) : BW 12/ BW 15 BW 19/ BW 1215 BW 1519/ BW 17/ BW 21 BW 27

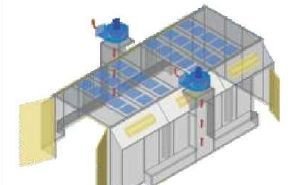

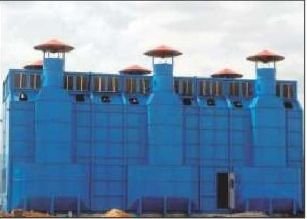

The spray painting is carried out by operator with the help of spray painting gun (Buyer to arrange spray panting gunj. The paint fume particles are sucked by the partial vacuum created by exhaust fan through a water curtain. The air is cleaned by scrubbing action in turbulent water. The particulate matter remains flowing on water tank Is periodically removed manually. The air discharged Into the atmosphere is clean and thus keeps the environment clean and friendly. Construction & Design The practical expertise enables us to design the Water Curtain Spray Booth with superior performance. The spray booth is modular in construction so that booth can be easily installed, modified or integrated into complete plant. The additional middle suction, deafly provides improved air guidance and better suction of hazardous paint fume particles. The water film thickness on the drain wall can be adjusted individually via throttle valves. Moreover, the unit meets OSHA's safely requirements. Essential Elements of Water Curtain Spray Booth : Exhaust Fan Motor - Paint spray booth is mounted with high efficiency centrifugal exhaust fan and motor to suck the fume and particulate matter in air. Water Pump & Piping - Paint spray booth provided with water pump and suitable piping arrangement for proper circulation of water. Throte Valve - To control water film thickness on the drain wall.

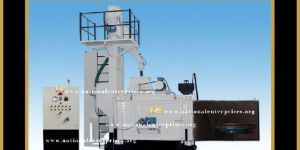

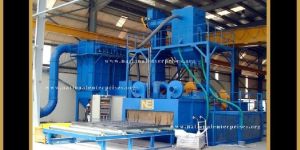

The machine consists of the following : Blasting Chamber Blast Wheel Assembly Abrasive Circulation System Pulse Jet Type Dust Collection System Roller Conveyor

Features : Sturdy, rugged & are proven across a wide variety of working conditions. Designed to carry out the multifarious jobs of cleaning & peening in faster time comparatively. The latest deign of Blast Wheel keeps the maintenance cost significantly low. The rubber conveyor belt is rugged & gives a long life.

Details : Max working pressure – 4000 PSI Clears Clogs Spray Spraying Pulverisation Can hold turn clean nozzle in 45 and 90 degree in horizontal as well as vertical spraying position.

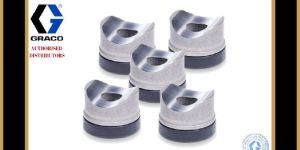

Code - 243281 Rac 5 ONEseals - 5 Pack. Use only with RAC 5 SwitchTip and

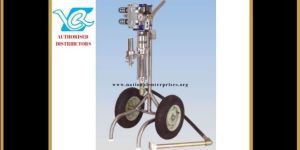

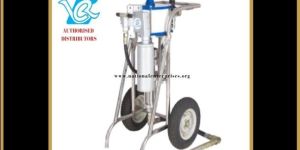

The range is suitable for tough working conditions and suitable for high viscosity, solvent-less low solvent coating, semi solid coating, marine coating etc. . FEATURES: Pneumatically sensed High Performance Air Motor High Flow Rate Stainless Steel Rust Proof Hydraulic Body Easy Maintenance Ice free motors Light & Easy to handle Compliance with EC Norms

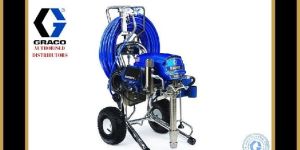

Texture spraying is all about high productivity, and that’s where the Mark IV sprayer really delivers. Designed to save time and money by enabling you to spray more square footage in a day drywall mud in an orange peel, splatter or knockdown finish or even the wide range of primers and paint, this sprayer can do it all!   Details : Max Tip Size - .033 Max GPM (LPM) - 1.10 (4.1) Max PSI (BAR) - 3300 (227) Motor - 2.2 HP Brushless DC Flex Plus Gun LT X" 425 Switch Tip" And Guard 3/8 in X 50 ft (9.5 mm x 15 m) Blue Max II Airless Hose 1/4 IN X 3 FT (6.4 MM X 0.9M) Blue Max ll Whip Hose

Applications and Features : Attain smooth complexion. Aesthetic finish on Die Castings of Aluminium, Zinc & Alloy Steel. De-sanding & descaling of castings and forgings. Preparation of Surface for Protective coating. Removal of heat treated scales.

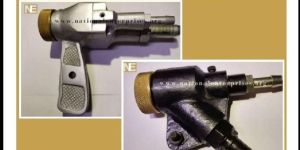

Features : Removal of corrosion Removal of mill scale Removal of coatings Removal of heat treatment residue Removal of carbon buildup Removal of tool marks Removal of burrs etc. Applications : Provides comfortable grip for operator Allows precise control of blast pattern Renders uniform texture Creates an etched finish to increase bonding strength for coatings Guns accept a  variety of nozzles and extensions - suitable for your application.

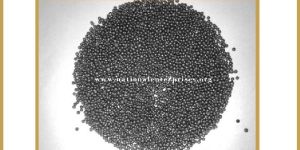

Salient Features : Steel shots are spherical grains made of molten steel through an atomisation (granulation) process. These cast steel shots are available in different sizes & hardness. Applications : Widely used for Shot Blasting & Shot Peening          Shot Blasting of Cast Steel Sand Removal          Surface Preparation Scale Removal etc.

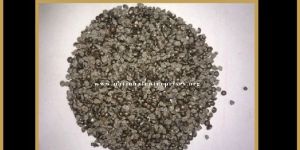

Salient Features : Steel grits are manufactured in conformity with standards IS-4606/1983, SAE-j827, BSS & DIN. Steel Grit characterises under grains with a predominantly angular shape. These grains are obtained by crushing steel shots. They exhibit sharp edges and broken sections. These are harder than steel shots and are also available in different sizes & hardness. Applications : Surface Preparation Stone cutting Air Blasting

Material : Steel

Application : Machinery Items

Availability : 0-2kg

Automatic Grade : Manaul

Feature : Light Weight

Working Pressure : High

The Semi Down Draft (the direction of flow of air is towards the side walls of spray booth) Paint Spray Booth is suitable for conventional. air-less and electrostatic spray painting and its consists of painting chamber, Inlet Air Filter, Paint Trap Filters, axial flow Fan, electric motor, duct and canopy etc. The design of the paint booth will be of semi down draft type paint booth with disposable paint trap filters on side walls. The intake air Into the paint booth is filtered by intake filter to avoid foreign particle deposition on the painted surface. The intake air is sucked into the room by the extraction modules located on the side walls. Enclosure : Spray booth is of rectangular shape rigid bolted construction. The structure is self-supporting and will not need supporting foundation except fixing bolts. Fabricated out of 18swg M.S. Sheet panels bolted with structural steel for rigidity. Functions : Maintains dust level to minimum, prevents spreading of paint and maintains clean air at the operators breathing level. Collects over sprayed paint, solid and discharge solvent fumes outside the building. Reduces the fire hazard.

Material : Steel

Application : Machinery Items

Availability : 0-2kg

Automatic Grade : Automatic

Feature : Durable, Light Weight

Working Pressure : Medium

Material : Steel

Application : Machinery Items

Availability : 2-4kg

Power : Gas

Feature : Easy To Hold, High Performance, Light Weight

Working Pressure : High

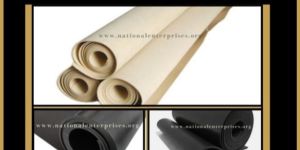

Details : Protection against abrasion. Color – Off  White Shore Hardness 55 +/- 5 A Specific Gravity – 1.32

Rubber Hand Gloves Details : Shield to operator’s hands Provide prevention against damage through high flying abrasive media and static charge if any.

The range is suitable for tough working conditions and suitable for high viscosity, solvent-less low solvent coating, semi solid coating, marine coating etc. . FEATURES: Pneumatically sensed High Performance Air Motor High Flow Rate Stainless Steel Rust Proof Hydraulic Body Easy Maintenance Ice free motors Light & Easy to handle Compliance with EC Norms

Salient Features : Remote ON/OFF of Machine Provide added safety to operator Saves abrasives & air consumption when operator change position
