MACHTIG ENGINEERING COMPANY LLP Nh 33, Jamshedpur, Jharkhand

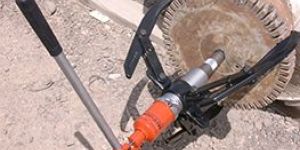

All types of hydraulic and manual pullers for pulling gears,baearings and pulleys for maintainence purpose.

The hmj range of hydraulic machine lifting jacks are designed specifically for lifting heavy equipment and machinery where a minimum low height lifting access point is available. The low height lifting toe is precision guided throughout its lifting stroke to reduce friction and prevent the hydraulic cylinder from potential side loading. Both models are 700 bar maximum working pressure and incorporate a 150mm hydraulic lift with a lifting toe, which can be preset at three different initial lifting positions, for even greater flexibility. Suitable manual or powered pumps for use with hmj jacks can be supplied as package.

Number Of Flower : Hydraulic Piston Based

Brand Name : Hi-Force

Application : Machine Lifting

Certification : 2006/42/EC

Max Height : 480mm

Min Height : 24mm

Country of Origin : Daventry -United Kingdom

We offer self propelled scissor lift that is used for high range vertical movement. It features non-marking rough terrain tires, platform work lights and pothole guards.his type of aerial work platform is ideal for indoor or outdoor construction or maintenance tasks.these scissor lifts are a good alternative for booms and portable aerial platforms. These scissor lifts are powerful and allow a unique narrow access capability. It also has a slide-out platform extension for easy access. We can scissor lifts these lifts with quiet electric drives and variable heights ranging between 21 to 59 feet. This scissor lift is accessible on varied specifications keeping in mind the customer�s requirements. We provide this scissor lift at nominal rates in a given time frame.

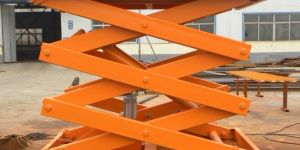

Hydraulic Scissor Lifts are used for various application in manufacturing industries and also finds its place in garage applications. We manufacture and supply tailored Lifts as per customer's requirement on Made to order basis.

Brand Name : MACHTIG

Power : As per requirement

Total Carbohydrate : 12 Months

Max. Lifting Height : As per requirement

Country of Origin : Pune

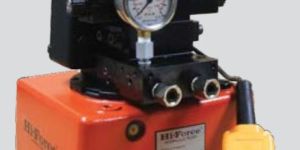

High flow hydraulic power pack is automatic version of manual hand pump for better ease of operation.

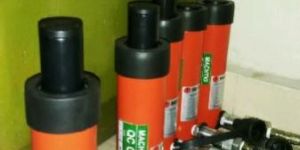

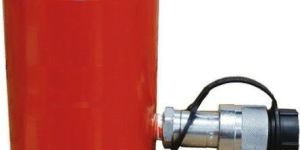

The hss single acting multi-purpose cylinder range offers the widest choice of stroke lengths and lifting capacities available, and provides an excellent choice for maintenance, production, fabrication and construction applications. All models are provided with a collar thread and thread protector, cylinder base and piston rod mountings for easy fixturing, making the hss range the most versatile and adaptable multi-purpose cylinders available. Major user industries include power generation, railways, steelworks,mining, shipyards and oil & gas.

Manual hydraulic hand pump used to actuate the hydraulic cylinders mostly purchased along with the jacks as accessories.

The hss single acting multi-purpose cylinder range offers the widest choice of stroke lengths and lifting capacities available, and provides an excellent choice for maintenance, production, fabrication and construction applications. All models are provided with a collar thread and thread protector, cylinder base and piston rod mountings for easy fixturing, making the hss range the most versatile and adaptable multi-purpose cylinders available. Major user industries include power generation, railways, steelworks, mining, shipyards and oil & gas. Features: 1.spring assisted return 2.nitro-carburised piston rod 3.low friction bearing surfaces 4.anti-extrusion seals 5.collar threads withstand full load 6.piston rod thread on all models up to 30t 7.base mounting holes on all models (except hss308) 8.optional piston rod saddles (see pages 26 - 27) 9.collar thread protector supplied as standard

Number Of Flower : Hydraulic Piston Based

Material : Stainless Stee

Body Material : Stainless Steel

Power : 700 bar 10000psi

Structure : Linear

Shaft Diameter : 35mm

Hi-force high pressure couplers and fittings are designed for easy system connection and assembly of your hi-force hydraulic equipment. All hi-force couplers and fittings are suitable for 700 bar maximum working pressure. Hi-force recommends the use of threaded dust caps with quick connect couplers to protect the thread of the coupler and at the same time prevent any contaminants entering your hydraulic system. Always specify hi-force couplers and fittings for use with your hi-force hydraulic tools.

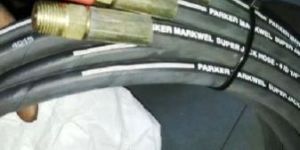

Hi-force high pressure hydraulic hoses provide the vital, high quality, safe connection for your hydraulic equipment. Available in black and red and supplied complete with an ergonomically designed protective strain reliever at both ends, hi-force high pressure hoses are suitable for working pressures up to 700 bar with a 4 : 1 factor of safety.

The hp manually operated pump range offers a choice of single or two speed operation and all models are supplied complete with a pre-filled oil reservoir, ready for immediate use. All models have a maximum working pressure of 700 bar and the range includes pump models suitable for use with either single acting cylinders or tools. The hp range offers the ideal solution for applications where completely independent, portable hydraulic power is required. With low handle effort characteristics for easy operation, all models are of strong durable construction. Hi-force hp manually operated pumps have a proven track record industry wide and offer excellent value for money in portable hydraulic power

Number Of Flower : Manual

Brand Name : Hi-Force

Country of Origin : UK

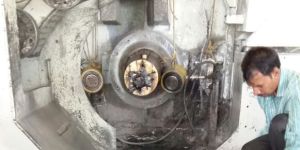

We provide hydraulic tool rental services for various industrial maintenance like - coupling extraction from the shaft( coupling removal services). Various machine lifting and movement services.
