Weight VariationWithin +/- 1%** of the filled quantity
FEATURES
Provision for Two Rolls on unwind
Sealers are both end supported
End roll detection synchronized with PLC & Filling
Provision for batch cutting & counting
Temperature Control and Heater Failure Indication is through PLC hence, eliminating the need for temperature controller
Paper break detection sensor
Joint detection sensor (optional)
Hopper level controller
FEATURES
Provision for Two Rolls on unwind
Sealers are both end supported
End roll detection synchronized with PLC & Filling
Provision for batch cutting & counting
Temperature Control and Heater Failure Indication is through PLC hence, eliminating the need for temperature controller
Paper break detection sensor
Joint detection sensor (optional)
Hopper level controller
48-50 cartons /min. (depends upon product and pack size)Power consumption
8KW to 10 KW (depending upon equipment configuration)Electric Supply
3 Phase, 415V, 50HzMain Motor
1.5KW, 415V, 3 Phases 1440 RPMWeight
2000 Kg.Packing Limit
50 gms- 1000gms (Depends on Product Density)Temp. Controller
PID basedMachine Colour
Shell GreyProduct to be packed
Any type of Non- free flow powderCoding Unit
Embossing station provided (digits not included)Packing Material
Duplex carton with heat sealable liner attached insideFloor Space
FEATURES
SPM 80 is an operator friendly and a low maintenance machine
It is an intermittent machine and can be used for packing a wide range of products such as Coffee, Tea, Spices and other Dry Products
The basic machine is extremely robust and all operations are driven mechanically
All Contact Parts are of Stainless Steel
A variety of filling devices are available for virtually any type of product
Includes a double track conveyer at carton exit
FEATURES
SPM 80 is an operator friendly and a low maintenance machine
It is an intermittent machine and can be used for packing a wide range of products such as Coffee, Tea, Spices and other Dry Products
The basic machine is extremely robust and all operations are driven mechanically
All Contact Parts are of Stainless Steel
A variety of filling devices are available for virtually any type of product
Includes a double track conveyer at carton exit
Speed70 Strokes / minute maximum
(Depends upon the type of product & quantity to be filled)
No. of TracksDepends upon the width of the pouch
Laminate SpecificationWidth - 1000 mm max.
Roll Dia - 600mm. max.
Reel Core I.D.- 150/76 mm
Packing MaterialLaminates with one side heat sealable
Filling Capacity1gm-300gm

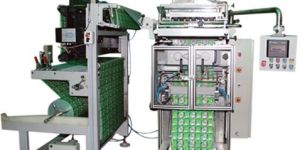

Product To Be PackedAny type of free flowing powder
Sealing DrivesMechanical – Cam driven with individual sealing jaw setting
Filling MechanismSlide Filler
Perforation and CuttingAs per customer requirement
Laminate Roll UnwindMotor driven – Bonfiglioli Geared Motor.
Laminate Draw Off SystemPLC based Servo Driven
ControlThrough Touch Screen Panel (HMI)
Laminate Tracking SystemE+L web aligner – Digital.
Main Control PanelAir cooled panel – BCH make or Rittal
Contact PartsSS 316 L
Indirect Contact PartsSS 304 / 316
Batch CuttingCan be programmed through PLC
Mat FormatIn built feature of the Machine.
FEATURES
Sealers are both end supported
End roll detection synchronized with PLC & Filling
Provision for batch cutting & counting
Temperature Control and Heater Failure Indication is through PLC hence, eliminating the need for temperature controller
Paper break detection sensor
Joint detection sensor (optional)
Hopper level controller
FEATURES
Sealers are both end supported
End roll detection synchronized with PLC & Filling
Provision for batch cutting & counting
Temperature Control and Heater Failure Indication is through PLC hence, eliminating the need for temperature controller
Paper break detection sensor
Joint detection sensor (optional)
Hopper level controller
