Sidsam Formilan Machines Pvt.Ltd Mathura Road, Faridabad, Haryana

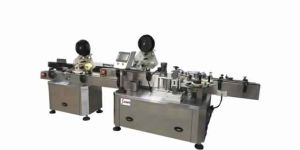

This       is       fully       automatic       Horizontal       Sticker       Labeling     Machine     suitable     for       round      containers.       The containers      are    fully/     partially     wrap    around     with     self-­‐adhesive      label.     The    containers    pass    thru’     the    machine    in    the    horizontal    orientation.    The    machine    can    label    different    sizes    of    labels,    which    are    fed    in    the    roll    form.    The    containers    are    automatically    spaced    on    the    conveyor. The  container    is    sensed    and    a    corresponding    label    is    pulled    from    the    label    roll    and    peeled    off    and    fed    in       the     direction     of     the     container.     The     label     front     sticks     to     the     container     and     the     complete     label     is    pulled     out   from     the   roll.   The   container   with   partially   stuck   label   moves   to   the   label   pressing   system.    The     container    is    rotated     with     the     label   and     is     pressed     between     rubber     pressing     belt   and     stationary    rubber    pad.    The    label    is    pressed    on  the    container    and    rolled    around.   SPECIFICATIONS:  -­‐   Can  diameter-­‐ 35mm.    to    100mm.        Can    height-­‐    20mm.    to    100mm. Output:-­‐ up    to    50    per    minute    depending    on    the    container    size    and    the    label    size Label  size:-­‐  Length    30mm    to    150mm,    width    16mm    to    100    mm..    Max.    Roll    dia.    300mm.  Electric    Power  -­‐  400    V,    3   ph,    4   wire   50    C/s. Compressed  air  ­‐  135    Liters    Per    Minute    @    5    Bar  pressure

Mechanical model of Vertical Form Fill & Seal Machine fitted with Hopper type Liquid Suction pump to pack thick viscose liquids / paste in pouches. Filling range : upto 200ml Products : Sauce, paste, grease, liquid chocolate etc.

Mechanical model of Vertical Form Fill & Seal Machine fitted with Liquid Suction pump to pack Free Flowing Liquids in pouches. Filling range : upto 200ml Products : hair oil, shampoo, lotion, perfume, edible oil, fruit juice, 2T oil, car polish etc.

The machine frame and tabletop is made from Stainless Steel. The conveyor   SPECIFICATIONS: – Can diameter- 35mm. to 100mm. Can height- 20mm. to 100mm. Output:- up to 20 per minute depending on the container size and the label size Eletric Power:-  400 V, 3 ph, 4 wire 50 C/s. 16 KW Compressed Air:-170 LPM, @ 7 bar constant pressure   Cans will be linked on conveyor, where the pusher will push and form in 5/10/12 Cans in lines. The line will go further and will turn 90degree  (in rolling position). Then it goes to web sealing machine, (The Sleever) where film will be wrapped  around the specified number of cans and then it will pass through the shrink tunnel. The sleeved can will pass through shrink tunnel and will be shrink wrapped

  Machine use Servo control can make the machine stable and durable High Accurate CPU count ,can be tolerance less than 0.001% Adjustable End seal Mode can avoid cutting can set the incense sticks No. on Touch Screen Bag Length Can be Adjust From Touch Screen

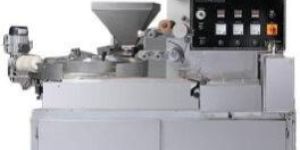

Omron Japan brand AC Drive, Bonvario Italy geared Motor, Omron Japan PID digital temperature controllers Digital Volt Meter, Digital Ampere meter, Solid state relays, Chain driven pushers, Adjustable forming Unit, Horizontal track for smooth movement of “Product”, Photo cell, photo electric control panel, Main control panel etc. Speed of pouch packing: Approx. 30-40 pouches per minute. Motor with gearbox: 1.5HP with AC Drive. Total load : 4KW Voltage : 220 volts Dimension: approx. 3200x1525x1830mm Weight : net 600kg /Gross:750kg

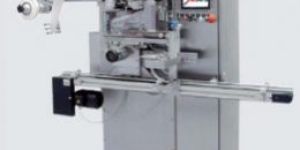

Speed: – 300 pouches/minute approx for  weight 0.35 gms, (depending on flow rate of snus & size of pouch. And moisture content in the product) Moisture up to 32.5% PLC Mitsubishi Japan HMI Mitsubishi Japan

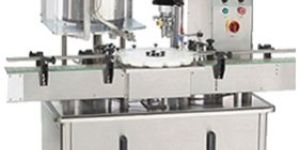

Utilizes heavy duty self lubricated and enclosed indexer for the turret movement. A single three-phase motor and gearbox drives the full machine. VFD for variable speed drives the motor.   An adjustable torque non-contact magnetic clutch is provided for long life without wear and tear. The cap tightening chuck needs to be changed when cap changes. The chuck changing is very easy and quick.   All the electrical is mounted in the control panel. The control console is ergonomically placed for convenient operation The machine is provided with adjustable SS legs for leveling the machine in line with other machines.   (Depending on Can and cap sizes and shapes.) Can diameter:     – 35mm to 80mm. Can Height:  – 20mm to 60mm. Cap diameter –20 to 45mm with suitable change parts.. Power requirement:- 0.75KW

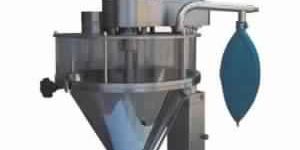

Single Phase Power Load :  5KW Motor :  Servo Auger S Screw & Pipe Power Supplied : 220V/50Hz, 110V/60Hz
