Bucket Elevator Dealers

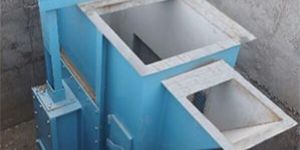

Bucket Elevator Used in conveying solid food such as rice, chips, potato, candy etc., This elevator has a robust constructed of stainless steel and high quality plastics.

Due to our vast experience in designing bucket elevators for Boilers and Thermopac we have developed technology that saves labour and time required for filling the fuel storage bunkers.

Bucket Elevators handle a variety of free flowing material such as Rice, Wheat, Corn, Sunflower Seed, Malt, Grain, and even Saw Dust. Our Bucket Elevators handle grain very gently having very negligible fall back. Our Bucket Elevator has many unique characteristics which have made it popular amongst its users: Its modular design ensure perfect fitment. It keeps the system rigid, resulting in absolute alignment and easy operation.   The inspection cover is readily removable and provides ease for maintenance.  High speed pulleys discharge material by centrifugal action.  UHMWPE Lining minimizes any type of wear and increases the efficiency.  Zero Speed Switch and Hold Back device ensures 100% safe operation.  Self cleaning, self aligning pulleys supported by flanged bearing units at both the ends ensure very low maintenance.  High speed operation moves larger volumes in optimum size.  Drive through Geared Motor ensures low power consumption

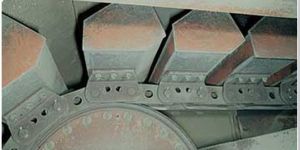

FRIGATE specializes in Belt Bucket Elevator as well as Chain Bucket Elevator. FRIGATE also offers conversion from Chain Bucket Elevator to Belt type and vice Versa FRIGATE belt bucket elevators are characterized by steel - reinforced belts. A self - adjusting parallel tension device maintains straight running of the belt. Longitudinal steel ropes from the traction elements. Together with the additional cross ropes, they form a rigid structure ensuring high resistance. In the elevator boot, a bar - type drum ensures the guided return of the belt. Precise parallel guidance is obtained with the parallel tensionong device. Belt splicing is made by clamping the steel ropes in a casting compound box. The rope ends are connected by means of clamps and then cast with a special casting compound. All drive pulleys features exchangeable friction linings. The segments can be easily exchanged without opening the belt. Special heavy-duty chains and sprockets, duly customized in Europe, are supplied for chain type bucket elevators.

Bucket elevators are designed to move flowing powders or bulk solids vertically. Bucket elevators use an endless belt or chain and have a series of buckets attached to it. Bulk material is spread into an inlet hopper. Buckets (or cups) dig into the material and convey it up and over the head sprocket/pulley, and then throw the material out a discharge throat. Bucket elevators are not self-feeding, and are fed at a controlled rate. The buckets are usually where the chain or belt path is vertical or steeply inclined in a single plane. The buckets are returned back down to a tail pulley or sprocket at the bottom.There are four broad classifications of bucket elevators: centrifugal, continuous, positive, and internal discharge. The most commonly used are the centrifugal and continuous discharge elevators. Orthman Conveying Systems' industrial bucket elevators are made in a variety of shapes, weights and sizes, all utilizing centrifugal buckets or continuous buckets Continuous bucket elevators are used to handle friable, fragile materials because they minimize product damage or are used to handle light fluffy materials where aeration of the product must be avoided. Continuous bucket elevators have buckets spaced continuously and operate at slower speeds. The continuous bucket placement allows the force of gravity to discharge their load onto the inverted front of the proceeding bucket. The bucket then guides that material into the discharge throat on the descending side of the elevator.

BHP Bucket Elevators are designed to handle all types of critical applications of the process industries. BHP Bucket Elevators equipment combine the most advanced design with optimum selection of components and world class manufacturing techniques to meet all application and capacity requirements. The complete line of bucket elevators include large capacity centrifugal discharge elevators, continuous discharge slow speed elevators and combined discharge RP design bucket elevators and industrial duty elevators for light duty applications. This range of elevators can meet any application requirement. The high capacity centrifugal discharge BHP bucket elevators are built specifically for  severe service and round the clock operation requirements for process industries like cement, for handling materials up to 50 mm lump size. Whenever there is a requirement for elevating large lump bulk material or high volumes of friable materials at slow speeds, BHP continuous discharge bucket elevator with twin strand chains is offered. For elevating materials with the large variation in particle size from fines to 75 -100 mm lumps, we provide combined discharge RP bucket elevators. For medium duty applications, a wide range of industrial duty bucket elevators are available. BHP bucket elevators are available both with Chain and Belt designs. Inherent characteristics of the material being elevated and the application requirements determine which type of bucket elevator is best suited for the application. BHP has supplied chain bucket elevator with lifts in excess of 75 meters and belt bucket elevators with lifts in excess of 105 meters. Capacities up to 1500 metric tones per hour are feasible. BHP has supplied more than 600 bucket elevators in India and other countries for a variety of applications and industries.

We have well-organized warehouse that is divided into specified areas according to technological operations in order to automate inbound, outbound and in-stock operations. This helps us in making quick deliveries in the shortest time span. This is due to our cordial associations with the logistic companies that we are able to reach any preferred Faridabad(India) with ease, thus meeting the delivery schedule.
