Bucket Elevator Dealers in Kolkata

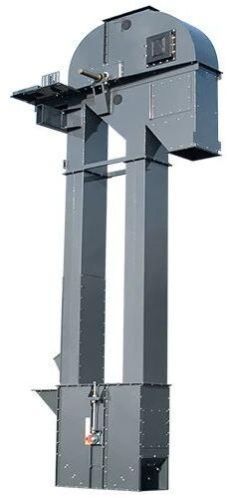

Bucket Elevators are used in industry to elevate bulk material to desired levels. The typical Bucket Elevator consists of a series of Buckets mounted on a chain or belt operating over head and boot terminals. A steel casing usually encloses the bucket line. Discharge Types: Centrifugal Discharge Type Continuous Discharge Type Positive Discharge Type Buckets made of Carbon Steel, Stainless steel, Plastic Construction are available with various designs, capacities, reinforced wear lips etc. Economic and simple design, generally suitable for free flowing materials, fines to small lump size, Buckets fixed on elevator chain or belt at regular intervals, with special fasteners. Correct speed of Buckets over the head wheel ensure proper discharge of materials by centrifugal action from the bucket to the discharge chute. .

The buckets are of seamless type made of 3.15mm thick steel sheet. Bucket elevator if fabricated from Ms material of 5mm thick at boot section 3.15mm thick at trunk and top section, respectively. A one-piece cast iron pulley, which has been crowned for tracking & rubber lagged to prevent slippage, are located in the boot & head section of the elevator to drive the belt.

A Bucket Elevator can elevate a variety of bulk materials from light to heavy and from fine to large lumps. A centrifugal discharge elevator may be vertical or inclined. Vertical elevators depend entirely on the action of centrifugal force to get the material into the discharge chute and must be run at speeds relatively high. Inclined elevators with buckets spaced apart or set close together may have the discharge chute set partly under the head pulley. Since they don’t depend entirely on the centrifugal force to put the material into the chute, the speed may be relatively lower. Nearly all centrifugal discharge elevators have spaced buckets with rounded bottoms. They pick up their load from a boot, a pit, or a pile of material at the foot pulley. The buckets can be also triangular in cross section and set close to on the belt with little or no clearance between them. This is a continuous Bucket Elevator. Its main use is to carry difficult materials at slow speed. Early Bucket Elevators used a flat chain with small, steel buckets attached every few inches. Current construction uses a rubber belt with plastic buckets. Pulleys several feet in diameter are used at the top and bottom. The top pulley is driven by an electric motor. Best Bucket Elevator Manufacturers Bucket Elevators have proven themselves for vertical transport of many and diverse bulk materials for decades. As a market leader, Devcon Group successfully established the belt bucket elevator technology in the market decades ago.

A Bucket Elevator can elevate a variety of bulk materials from light to heavy and from fine to large lumps.   A centrifugal discharge elevator may be vertical or inclined. Vertical elevators depend entirely on the action of centrifugal force to get the material into the discharge chute and must be run at speeds relatively high. Inclined elevators with buckets spaced apart or set close together may have the discharge chute set partly under the head pulley. Since they don’t depend entirely on the centrifugal force to put the material into the chute, the speed may be relatively lower.   Nearly all centrifugal discharge elevators have spaced buckets with rounded bottoms. They pick up their load from a boot, a pit, or a pile of material at the foot pulley.   The buckets can be also triangular in cross section and set close to on the belt with little or no clearance between them. This is a continuous Bucket Elevator. Its main use is to carry difficult materials at slow speed.   Early Bucket Elevators used a flat chain with small, steel buckets attached every few inches. Current construction uses a rubber belt with plastic buckets. Pulleys several feet in diameter are used at the top and bottom. The top pulley is driven by an electric motor.   Best Bucket Elevator Manufacturers   Bucket Elevators have proven themselves for vertical transport of many and diverse bulk materials for decades. As a market leader, Devcon Group successfully established the belt bucket elevator technology in the market decades ago.   Belt Bucket Elevators were consistently developed in the past and enable the highest possible conveying capacities with maximum centre distances today. Chain Bucket Elevators are the preferred conveying systems for the transport of hot bulk materials and coarse-grained materials. With its central chain bucket elevators, Devcon Group offers efficient and proven solutions even for the highest conveying capacities.

Bucket Elevators, Conveyor Systems, Truck Loading Conveyo

Belt Bucket Elevator, Paddy Parboiling Dryer, Bends, Fittings, Flange

Screw Conveyor, Vibrating Feeder, Diaphragm Pump, Rod Mill, Pug Mil

Material Handling Equipment, Screw Conveyo

Hopper Elevator, Chute Elevator, Material Handling Equipment, Screw Conveyo

Material Handling Equipment, Screw Conveyo

Deep Bucket Elevators, Conveyor Roller Chain, Ratchet Lever Hoist, D Shackl

Chain Conveyor, Crumbler Machine, Industrial Blowers, Mixer, Screw Conveyo

Bucket Elevators, Bus Bar, Engineering Products, EOT Crane, Jib Crane

Bucket elevators have proven themselves for vertical transport of many and diverse bulk materials for decades. As a market leader, DECOL successfully established the belt bucket elevator technology in the market more than decades ago.

Bucket Elevators, Customized Software Developme Servic

Bucket Elevators, Ling Elevator, Chain Elevators, High Speed Elevato

Bucket Elevators, Drag Conveyor

Well Developed Research Services, Electrostatic Precipitator, Dust Collector
