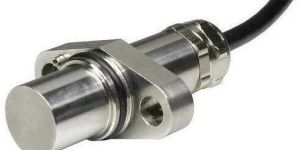

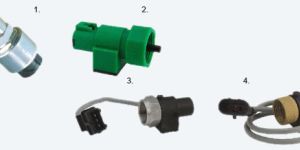

Feature
▪ Hall Effect type.
▪ Open collector type.
▪ Suitable for JIS and DIN type.
▪ Output: square wave, 8 pulse per revolution.
▪ With dust and water proof connectors.
▪ Available in different threading.
The sensor works using a iron cored coil with a magnet attached to one end. When a peice of ferrous metal is moved towards the end of the sensor it changes the shape of the magnetic field in the coil, this changing magnetic field then induces current to flow in the windings of the coil resulting in a small amount of electricity being generated. Yuvatech- With best web solutions.
