D. K. Fiber Glass Industry Gandhinagar, Gujarat

FRP GPO3/Polyester Sheet 1. Introduction:GPO3 is also called UPGM203 plate (Unsaturated Polyester Glass). UPGM203 is IEC standard and GPO-3 is NEMA grade. It is kind of rigid plate insulating material, made of alkali-free fiberglass mat impregnated with unsaturated polyester resin, adding relevant chemical agents in heating and pressing to cure into rigid plate.Standard Color: Red Color, White color. 2. Characteristic: Strong and stiff Impact resistant Excellent electrical properties ( under high humidity) Good flame and smoke characteristics Dimensional stability Good arc resistance and tracking resistance. 3. Application:Widely used in the low voltage electrical industries such as rail transportation, power generation, wind energy, power transmission and distribution, metallurgy, mining, petrochemical, public transportation and other fields.It always made into insulating structural parts as follow products: phase and end barriers, insulating supports, bus bar supports, mounting panels in switch-gear, switch cabinet, motor, frame breaker, safety plate, arcing plate, slot wedge, shifting cover spacer, gasket, cable clamp, other types of electrical apparatus. 3. Further processing GPO3:It can be machined, punched, drilled, milled, sawn, sanded, sheared or routed.Processing steps:Firstly, use the scale milling cutter to process, according to the different precision requirements, use the processing precision to carry on the finishing. Secondly, assembly by bonding, metal screws or rivets are also possible. Usually, the thinner thickness sheets just use the bonding tapes, big thickness one needs metal screws and rivets to holding the material steady with the CNC table. Thirdly, processing according the drawing by CNC machine into the different products. Product Details Model NO. GPO3 Certification ISO9001, RoHS, CE Brand D.K. FIBERGLASS INDUSTRY Custom Can CNC Machine According to Your Drawing Specification 1250*2000mm, 1250*2500mm, 1040*2500 Density 1.8 g/cm3 Thickness Up to 100 mm Color Red, white, yellow, blue Flame retardant grade UL94 HB

Brand Name : DKFI

Material : Polyester, FIBERGLASS

Packaging Type : Multicolor

Application : Industrial

Size : Multisizes

Feature : Anti Wrinkle, Anti-Shrink

Technics : Woven

frp epoxy g10 cnc machined components fr4 is a fire rated electrical-grade, dielectric fiberglass laminate epoxy resin system combined with a glass fabric substrate.the abbreviation “fr4” means: f (for flame) and r (for retardant).fr4 grades material offer excellent chemical resistance, flame ratings (ul94-vo) and electrical properties under dry and humid conditions. fr4 also features high flexural, impact, superior mechanical strength and bond strength at temperatures up to 130°c. g10 material is a composite material made of glass cloth and epoxy resin. it was developed as an aircraft material when it was invented, it can withstand great strength. g-10 is not permeable with water and liquid, and it has the characteristics of insulation, anti-acid and alkali, and the weight is light.a continuous woven glass fabric laminated with an epoxy resin. this grade is extremely high in mechanical strength, has low water absorption and dissipation factors and has superior electrical characteristics, which are exhibited over a wide range of temperatures and humidifies. product details thickness up to 75 mm max withstanding temperature 180 usage/application insulators, electrical winding insulation, electrical base, shell, switch baseplate, etc. color as per customer requirement size as per drawing electrical conductivity 20kv~100kv chemical basis ansi(nema) grade nema li-1 fr-4

Brand Name : DKFI

Material : FIBERGLASS

Finishing : Coated

Packaging Type : MULTICOLOUR

Application : Machinery Use

Size : AS PER DRAWING

Feature : Shocked Resistance, Rust Proof, Light Weight, Heat Resistance, Fine Finished, Durable, Anti Sealant

An FRP angle is a structural component made from fiberglass-reinforced plastic (FRP). They are used to build walkways, supports, and other structural elements. FRP angles are durable, cost-effective, and low maintenance.   Features Corrosion resistant: FRP angles are designed to withstand heavy loads in corrosive environments. Flame resistant: Some FRP angles are flame retardant. Ultraviolet protection: FRP angles have a surfacing veil that increases UV resistance. Highly insulated: FRP angles are electronically transparent and do not interfere with radio frequency transmissions. Applications Chemical industries Water treatment plants Oil gas refineries Cooling towers Ladder rails Step stringers Horizontal supports Pump housing units Columns Stair treads

Material : FRP EPOXY

Finishing : Polished

Shape : L Shape

Surface Treatment : Polished

Application : Construction, Constructional, Manufacturing Unit, Marine Applications, Oil Gas Industry, Pharmaceutical Industry, Water Treatment Plant

Certification : ISI Certified

Grade : ASTM

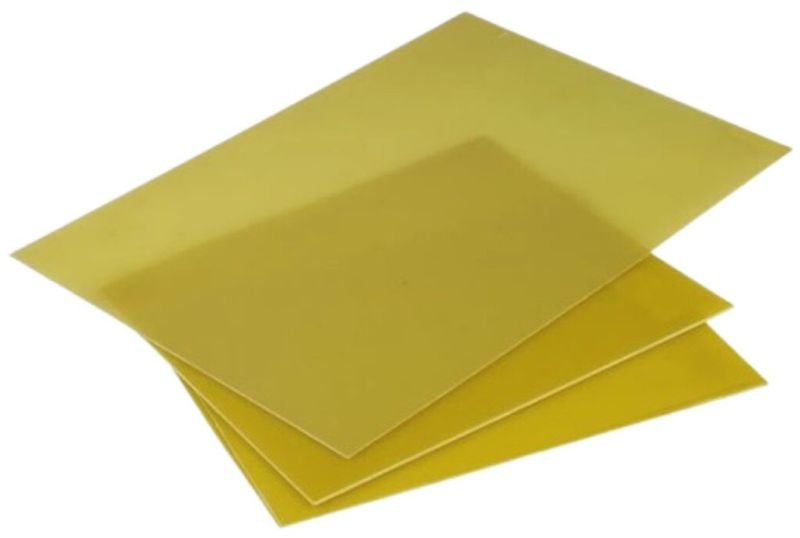

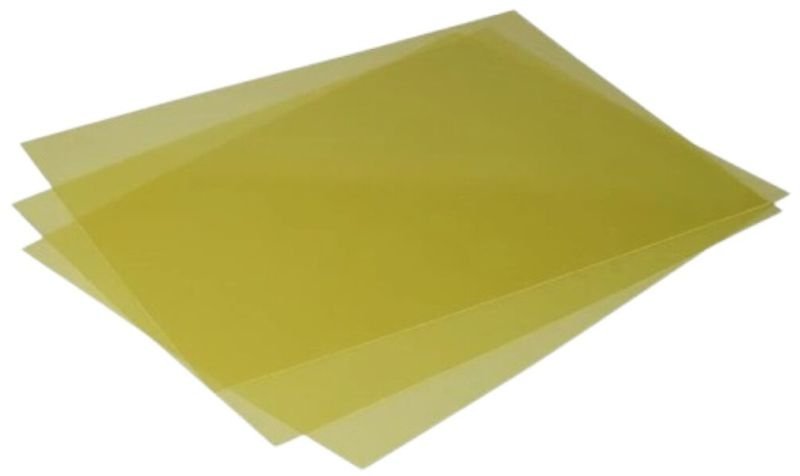

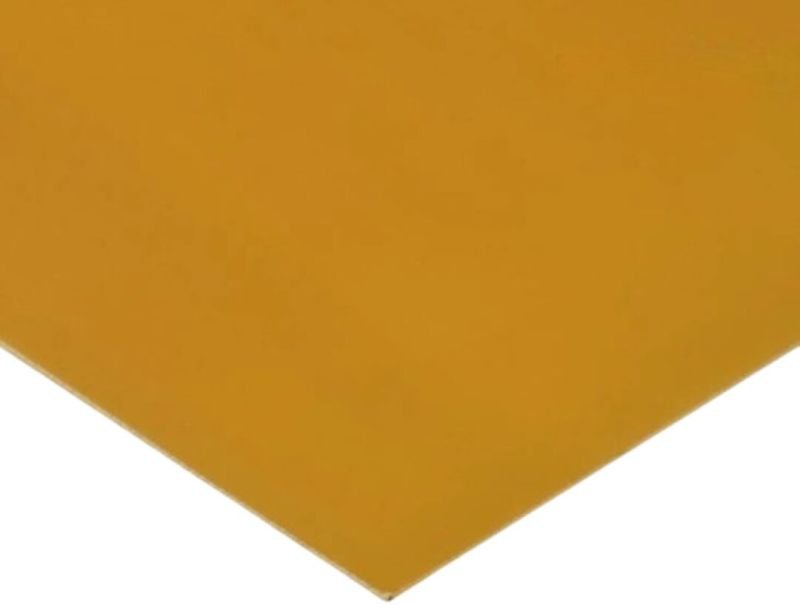

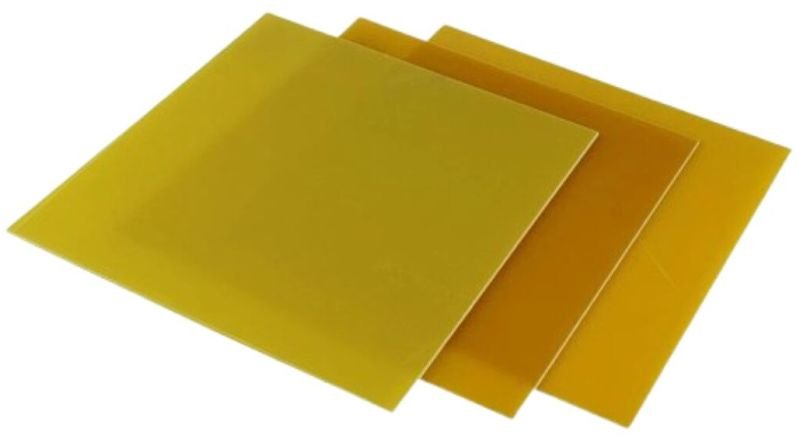

FR-4 insulating fiberglass sheet plastic laminated plate, plastic fiberglass sheet1) FR-4 epoxy glass cloth was the plate laminated products which made of the special electronic materials such as cloth dipped in epoxy phenolic resin by high-temperature, high-pressure and hot pressing2) Thermal grade: grade-B3) Thickness: 0.2-50mm4) Sizes: 1020*2040mm, 1020*1200mm5) Colors: green/black6) Temperature grade: B-grade (130°C), A-grade (200 to 250°C) Processing customized of G10/ FR4 epoxy sheet:Factory direct sale, different sizes and parts are availableContact withour sales department directly with supplied CAD or 3D drawings, our professional engineering team will quote for you G10 and FR4 epoxy glass laminated sheet:G10/EPGC201 and FR4/EPGC202 epoxy glass laminated sheet are electrical alkali-free glass woven fabric base impregnated epoxy resin binder by processing under pressure and heat, which have extremely high mechanical strength, good dielectric properties, good electric strength properties and fine heat and humidity resistanceIn addition, the FR4 sheet has anti-fire property Product Details Base Material Epoxy Resin + Fiber Glass Color Green\Yellow\Red\Black\White,etc Color can be customized according to customer requirements Thickness 0.1mm – 100mm More than 80mm can be produced according to product requirements Dimensions Regular size are 1020x1220mm,1020x2040mm,1220x2440mm; Special size, we can produce and cut according to customer’s requirements. Density 1.97g/cm3 – 2.2 g/cm3 Maximum Voltage 20KV~100KV

Material : FRP

Shape : Square, Rectangular, AS PER REQUIRMENT OR DRAWING

An "FRP Coil Support" refers to a component made from Fiber Reinforced Polymer (FRP), typically fiberglass, designed to physically support and hold a coiled metal structure, most commonly used in industrial applications like induction furnaces to support the heavy copper coils within the furnace; it provides both structural support and electrical insulation due to the insulating properties of FRP material.   Key points about FRP Coil Supports: Material: Primarily made from glass fiber cloth bonded with a resin like polyester or epoxy, creating a strong and lightweight composite material. Function: Used to elevate and stabilize the copper coils within an induction furnace, preventing them from sagging or contacting other components. Benefits: High strength-to-weight ratio: FRP offers excellent structural support while remaining lightweight. Electrical Insulation: The composite material provides good electrical insulation, preventing short circuits. Heat Resistance: Depending on the resin used, FRP can withstand high temperatures encountered in furnaces. Corrosion Resistance: Resistant to corrosion, unlike traditional metal supports. Design Variations: G10 Grade: A high-performance FRP often used for coil supports due to its superior mechanical strength and electrical insulation properties. Custom Shapes: Can be molded into specific shapes and sizes to fit different coil configurations.

Material : FRP

Application : Industrial

Length : 1000-3500 Mm, 3 Mtrs, 3-6 Mtrs

Pattern : Plain

Number Of Flower : Frp Coil Support Bar

An "FRP Coil Support" refers to a component made from Fiber Reinforced Polymer (FRP), typically fiberglass, designed to physically support and hold a coiled metal structure, most commonly used in industrial applications like induction furnaces to support the heavy copper coils within the furnace; it provides both structural support and electrical insulation due to the insulating properties of FRP material.   Key points about FRP Coil Supports: Material: Primarily made from glass fiber cloth bonded with a resin like polyester or epoxy, creating a strong and lightweight composite material. Function: Used to elevate and stabilize the copper coils within an induction furnace, preventing them from sagging or contacting other components. Benefits: High strength-to-weight ratio: FRP offers excellent structural support while remaining lightweight. Electrical Insulation: The composite material provides good electrical insulation, preventing short circuits. Heat Resistance: Depending on the resin used, FRP can withstand high temperatures encountered in furnaces. Corrosion Resistance: Resistant to corrosion, unlike traditional metal supports. Design Variations: G10 Grade: A high-performance FRP often used for coil supports due to its superior mechanical strength and electrical insulation properties. Custom Shapes: Can be molded into specific shapes and sizes to fit different coil configurations.

Brand Name : DKFI

Material : FRP

Finishing : Polished

Raw Material : EPOXY

Shape : Rectangular, Square

Condition : New

Size : 1220X2440X0.5 TO 100 MM

Feature : Corrosion Resistant, Durable, Fine Finish, Good Quality, Tamper Proof, Water Proof

Number Of Flower : Frp Sheet

Country of Origin : India

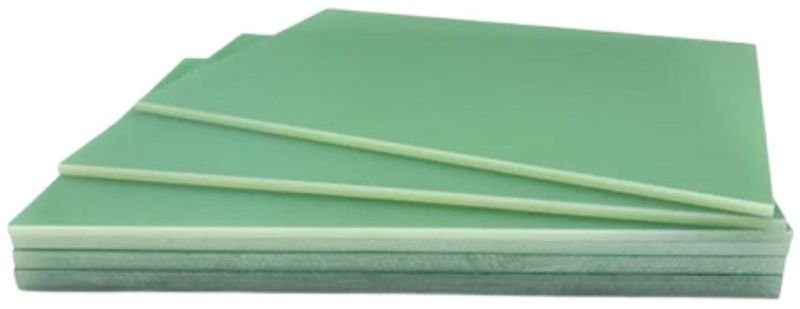

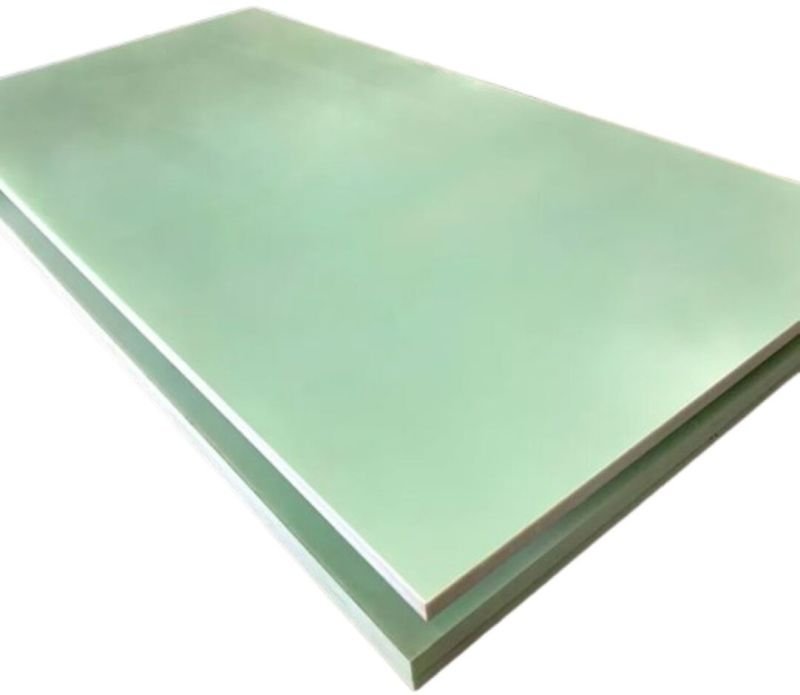

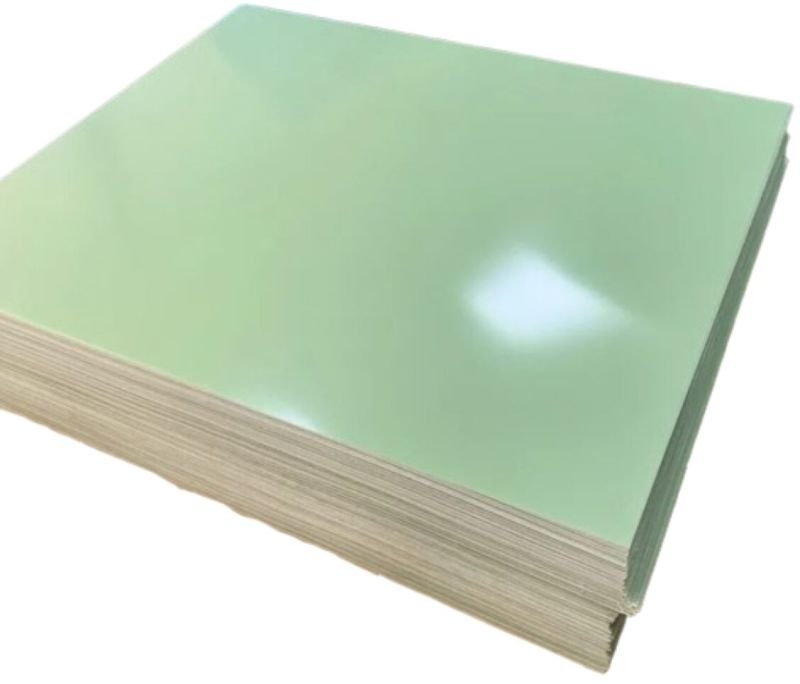

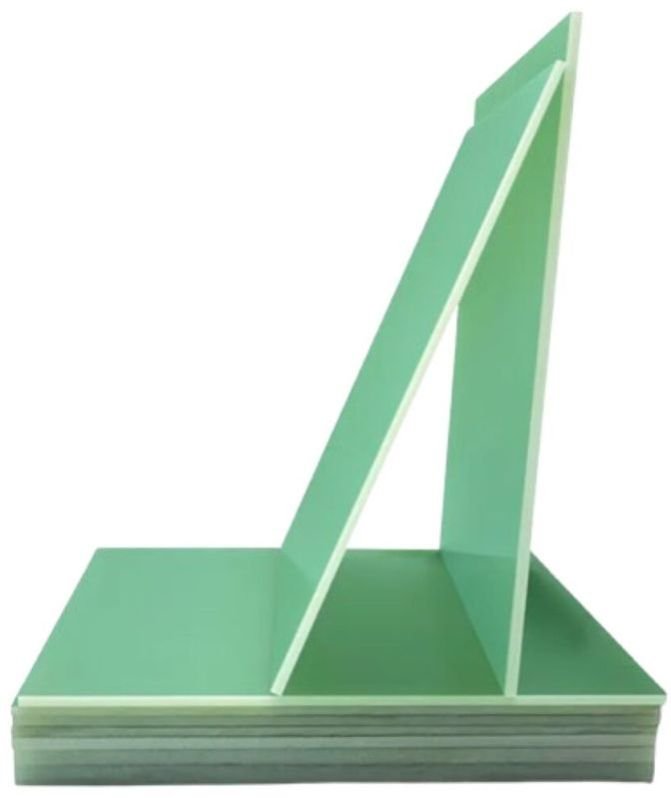

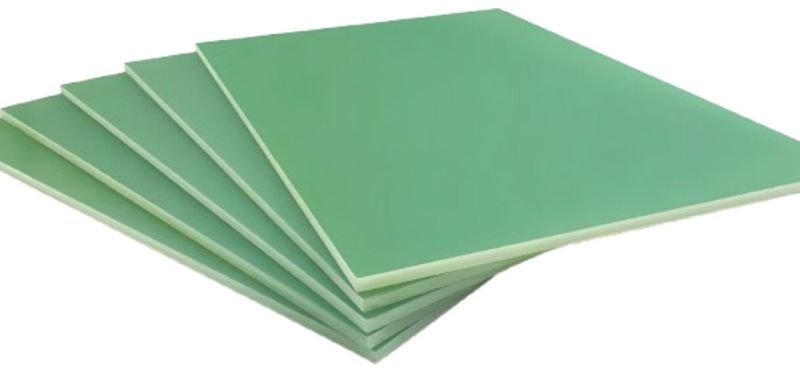

FRP EPOXY FR-4/G10 GREEN SHEET FR-4 insulating fiberglass sheet plastic laminated plate, plastic fiberglass sheet1) FR-4 epoxy glass cloth was the plate laminated products which made of the special electronic materials such as cloth dipped in epoxy phenolic resin by high-temperature, high-pressure and hot pressing2) Thermal grade: grade-B3) Thickness: 0.2-50mm4) Sizes: 1020*2040mm, 1020*1200mm5) Colors: green/black6) Temperature grade: B-grade (130°C), A-grade (200 to 250°C) Processing customized of G10/ FR4 epoxy sheet:Factory direct sale, different sizes and parts are availableContact withour sales department directly with supplied CAD or 3D drawings, our professional engineering team will quote for you G10 and FR4 epoxy glass laminated sheet:G10/EPGC201 and FR4/EPGC202 epoxy glass laminated sheet are electrical alkali-free glass woven fabric base impregnated epoxy resin binder by processing under pressure and heat, which have extremely high mechanical strength, good dielectric properties, good electric strength properties and fine heat and humidity resistanceIn addition, the FR4 sheet has anti-fire property Product Details Model NO. 3243 FR4 Brand D.K. Fiberglass Industry Usage for Transformer/Batteries/Lithium Batteries Flammability UL94 V0 Thickness 0.2mm-50mm Specification 1020*2040mm / 1020*1220mm Production Capacity 2000ton Color Green Color Customization White, Black,Yellow,Green Width 1020*2040mm / 1020*1220mm Other Epoxy Sheet Fr4 G10 G11 Fr5 Origin Gujarat,INDIA

Brand Name : DKFI

Material : Laminated Glass

Finishing : Coated

Shape : Rectangular, Square

Application : INDUSTRIAL

Size : 4 FT X 8 FT, 4 FT X 3 MTR, 4 FT X 8 FT

Feature : Crack Proof, Durable, Fine Finishing, High Quality, Optimum Strength
