Resistance Meters Dealers in Gandhinagar

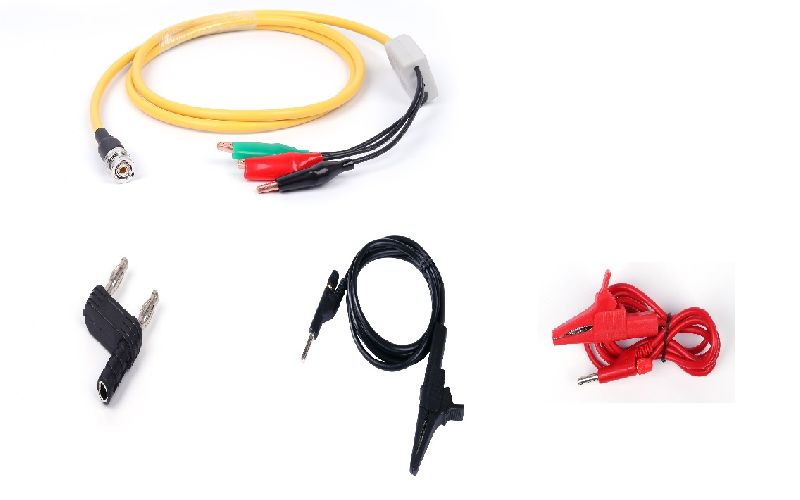

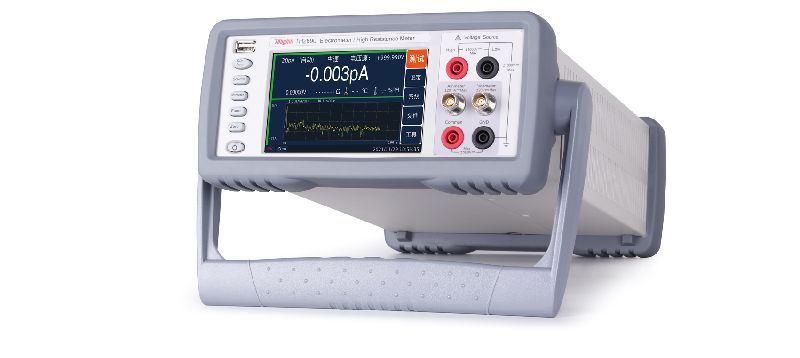

TH2690 fA meter/ Electrometer/ High Resistance Meter Current Range: 0.1fA-20mA Resistance Range: 10PΩ Voltage Range: 1uV-20V Electric Charge Range: 1fC-2uC Built in Voltage Source +/-1000V Temperature measurement Humidity measurement Features ■ 5.0-inch capacitive touch screen ■ 6½-digit measurement resolution ■ Four measurement modes: high resistance meter, voltmeter, ammeter, electrometer independent current and voltage measurement ■ Built-in voltage source: ±1000V, resolution: 700μV ■ Current range: 2pA-20mA, current resolution up to 1fA (10-15A), the internal resistance voltage drops in the lowest current range 200TΩ ■ Support voltage measurement up to 20V, temperature and humidity measurement ■ Time domain view, capture transient signal effects and select specified measurement data to support data recording ■ With dedicated shielding test box   Application ■ Material Science Biomaterials, ceramics, rubber, films, dielectric materials, electrochemical materials, ferroelectric materials, graphene, metals, organic materials, nanomaterials, polymers, semiconductors, etc. ■ Electronic Component Types of transistors such as capacitors, resistors, diodes, sensors, TFT and CNT, photoelectric devices, solar cells, etc. ■ Electronic/non-electronic system Ion beam, electron beam, sensor system, particle measurement, embedded precision instrument, etc.   Specifications Model fA meter/ Electrometer/ High Resistance Meter pA meter/ Insulation Resistance Meter fA meter pA meter TH2690 TH2690A TH2691 TH2691A Measurement resolution 6½ Digit Current measurement 0.1fA - 20mA 0.01pA - 20mA 0.1fA - 20mA 0.01pA - 20mA Minimum range 20pA 2nA 20pA 2nA Resistance measurement 10PΩ 10TΩ ------- ------ Voltage measurement 1μV - 20V 1μV - 20V ------ ------ Input resistance >200TΩ >200TΩ ------ ------ Charge measurement 1fC - 2μC ------- ------ ------ Temperature measurement √ √ ------ ------ Humidity measurement √ √ ------ ------ power source ±1000V ±1000V ------ ------ Minimum resolution 700μV 700μV ------ ------
