Temperature Gauges Dealers in Gandhinagar (18 products available)

Application : Chemical and Petrochemical, Plastic and pap er, Air conditioning and Food & beverages

Nominal Size (mm) : 40,50,63,80,100,150

Scale Range : -50..to..0..to..600˚ C

Accuracy (FSD) : 1 %

Thread Connection : 3 /8″, ½ “, BSP & NPT

Mounting of Gauge : Bottom, Back, Surface, Panel

Case and Bezel : Drawn steel and SS 304

Pressure Elements : Bimetal helix

Diaphragm : Nil

Wetted Parts : Ss 304 and Ss 316

Optional : Thermowell

Accuracy : ±1% of F.S.

Display : 15mm High 5 Full Digit Seven Segment Customised LCD

Calibration : Possible, Password Protected

Wetted PArts : AISI 316 SS

Enclosure : AISI 304 SS Snap Action Bayonet Type IP 65

Sensor Diameter : 4 mm / 6mm / 8 mm / 10 mm / 12 mm

Sensor Length : 300 mm Standard or As required Upto 10 Meter

Instrument Weight with battery : 650 Grams for Standard Version

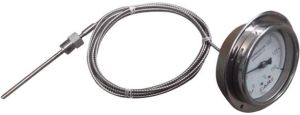

Features : Micro Controller based Available in Rigid Stem type either Horizontal or Vertical Mounting or every angel type Feather Touch keypad for easy operation Also available in distant type (capillary type) up to 10 Meter Extension length. Wide temperature range -100°c to 450°C in RTD and -50°c to +1000°C in “K” type Thermocouple. Available in 180° adjustable type in one plane. Battery operated, (1.5x4 alkaline battery) Battery life 2 years in Continuous Operation Application : Ideal for all types of Process Industry “ DIGITHERM” can replace the conventional mercury-in-steel, Inert Gas System, Vapor Pressure and Bimetallic Temperature gauges. The most important plus point of this instruments that It can be easily calibrated, repair by changing the Sensor.

Application : Chemical and Petrochemical, Plastic and paper

Nominal Size (mm) : 63, 80,100,150

Scale Range : -40˚ C to 650˚ C

Accuracy in FSD : 1%

Thread Connection : 3\8", ½ ", BSP & NPT and other on request

Mounting of Gauge : Bottom, Back, Surface, Panel

Case and Bezel : Drawn steel, SS 304

Pressure Elements : Mercury In Metal and Gas in Metal

Diaphragm : Nil

Wetted Parts : Brass, SS 304, SS 316 & other material on request

Optional : Thermowell, Electric contact & Liquid Filled

Accuracy : Class 1 (EN-13190)

Size : 63mm, 100mm, 150mm

Range : -50 to 400 °C, -80 to 750°F

Features Rugged stainless steel construction Fast responseProtection IP65External zero adjustment Dry & liquid filled Silicon damped coil Application Chemical & petrochemical industry, machine & apparatus construction, offshore installations, pulp & paper industry, food & beverage industry, Waste water treatment, etc.

Brinda Industries is a manufacturer of "LA" brand Temperature Gauges since 1994. Brinda produces temperature gauge with all measuring principles (contact type): Bi-Metal Temperature Gauges, Liquied Expansion Temperature Gauge , Gas Expansion Temperature Gauges.      BRINDA make Bi-Metal Temperature Gauges available from -50 °C to 500 °C, also available with vertical mount, horizontal mount and all angle design, with 1% accuracy to 2% accuracy, .      Brinda Industries produce Liquied/Gas Expansion Thermometer available from temperature range: -5 °C to 650 °C, with horizontal, vertical mount with/without extension capillary with 1% accuracy to 2% accuracy, Liquied Fillied Temperature Gauges available with electric contacts for on and off control and alarm porpose.

We are offering bi-metallic temperature gauges (abt) nominal size (mm) 40,50,63,80,100,150 scale range -50.to..0..to..600˚c accuracy (fsd) 1% thread connection 38", ½ ", bsp & npt mounting of gauge bottom, back, surface, panel case and bezel drawn steel and ss 304 pressure elements bimetal helix diaphragm nil wetted parts ss 304 and ss 316 application chemical and petrochemical, plastic and paper, air conditioning and food & beverages optional thermowell.

Connection : 1/2" BSP / NPT (MALE)

DIAL : 40 / 63 / 100 / 150 MM

RANGE : 0 TO 50... UP TO 300 DEG C

MOUNTING : BOTTOM / BACK / ALL ANGLE MOUNTING

STEM OD : 6 / 8 / 10 / 12 MM

STEM LENGTH : ANY FROM 50MM UP TO 600 MM

MOC : SS 304

THERMOWELL : OPTIONAL

Brinda Industries is ISO 9001:2008 certified manufacturer and exporter of all types of Analog Pressure and Temperature measuring instruments as well as accessories like thermwell, syphon, gauge cock, needle valve, snubber or dampnerer, gauge saver, manifold valve. Brinda Industries is based at Gujarat in India since last 22 years.

Being one of the major manufacturers in india, the company offers thermocouple gauges to the clients. Made from top quality raw materials, these thermocouple gauges are largely used in automobile industries. Our team of experts intricately designs these thermocouple gauges, in accordance to meet the set quality standards. Avail from us these thermocouple gauges in various specifications, that too at pocket friendly prices. attributes resistant to corrosionresistant to chemicalsprecisely designedhighly durable
