Welding Machine Parts Dealers in Gandhinagar

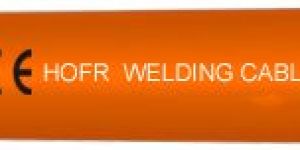

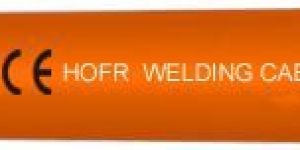

Cable Structure generally conforms to, Based on CENELEC HD 22-6 , DIN VDE 0282 ,IEC 245-6 Conductor: Extra-fine class 5 conductor for H01N2-D & class 6 for H01N2-E conforms to IEC 60228, DIN VDE 0295 Separation: Polyester tape Outer Sheath: HOFR Sheath (Polychloroprene), black and oil resistant Cable Marking: We are providing sequential marking on cable.*Any other Color on specific request can also be supplied Cable features Ultra high performance flexible welding lead, double insulated for longer life and added safety Excellent flexibility to last longer in flex applications RoHS Compliant Based on CENELEC HD 22-6 31, VDE 0282, IEC 245-6, IS 473, BS 638-4 Outstanding toughness & durability High resistance to cuts, tears & abrasion Resistance to oil, solvents and chemicals Excellent ozone and weather resistant Technical Data Fixed installation: -30°c to max.+90°C   Nominal voltage: 100/100 V   Test voltage: 1000 V   Min. bending radius: 4 x cable diameter   Flame propagation: Flame retardant test as per IEC 60332-1   Application H01N2-D / H01N2-E (HOFR)H01N2-D / H01N2-E Designed for the secondary (high current) connection to automatic or hand - held metal arc welding electrodes. It is suitable for flexible use under rugged conditions, on assembly lines and conveyor systems, in machine tool and automatically operated line and spot welding machines...Standard length cable packing:Coils 100, 200,300 and 500 m. in wooden reels

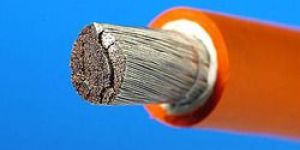

We are offering welding cables. Our welding cables are according to is, bs & international parameters. We focus in manufacture of rubber insulated flexible welding cables to connect welding machines. They are offered with aluminum & copper conductors to suit different welding process (duty cycle) applications. Our welding cable are heat, oil and flame retardant.

We are offering thermax powder. A highly exothermic material yielding metal up to 35% of its weight. The product is used to improve feed efficiency of smaller sleeve when correct riser size is not available. fluxtherm-1 is suitable for steel castings. fluxtherm-2 is suitable for iron castings as it is more sensitive.

Plastic Welding Machin

Plastic Welding Machin

Stainless Steel Strips, Stainless Steel Coils, Stainless Steel Circle
