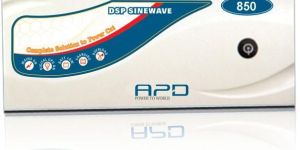

Apd Global Pvt Ltd Ahinsa Khand, Ghaziabad, Uttar Pradesh

TECHNICAL SPECIFICATIONS OF 650VA,850VA & 1450VA UPS DESCRIPTION 650VA 850VA 1450VA INVERTER MODE OUTPUT VOLTAGE AT NO LOAD: 220 VAC ± 7 VAC OUTPUT FREQUENCY: 50.0 Hz ± 1.0Hz OUTPUT WAVE FORM: Sine Wave NOMINAL BATTERY VOLTAGE: 12 VDC 24 VDC MAX. NO LOAD CURRENT @ FULLY CHARGED BATTERY: 1.7A 1.4A BATTERY LOW ALARM: 10.6 ± 2 VDC 21.2 ± 0.2 VDC BATTERY LOW PROTECTION: 10.4 ± 2 VDC 20.8 ± 0.2 VDC EFFICIENCY: > 85% > 85% NO LOAD CURRENT @ SWITCH OFF/MAINS OFF: 0A TOTAL HORMONIC DISTORTION: < = 2.5% @ resistive UPS MODE INPUT VOLTAGE RANGE: 180 to 270 VAC ± 10 VAC CHANGEOVER TIME MAXIMUM: < = 10ms NORMAL MODE INPUT VOLTAGE RANGE: 90 to 280 VAC ± 10 VAC INPUT VOLTAGE RANGE FOR CHARGING:90 to 280V ± 10 VAC MAXIMUM CHANGE OVER TIME: < = 10ms CHARGING MODE CHARGING CURRENT @ 220VAC (NC): 8A +/- 1A 10A +/- 1A CHARGING CURRENT @ 220VAC (HC): 11A +/- 1A 13A +/- 1A BOOST CHARGING VOLTAGE: 14.2 ± 0.2 VDC 28.4 ± 0.2 VDC FLOAT CHARGING VOLTAGE: 13.7 ± 0.2 VDC 27.4 ± 0.2 VDC PROTECTIONS PROTECTIONS:WIRING FAULT, BATTERY VOLTAGE LOW (4 AUTO RETRIES), OVER LOAD (6 AUTO RETRIES) BATTERY OVER CHARGE, OVER TEMPERATURE, SHORT CIRCUIT (ONE RETRY), BATTERY DEEP DISCHARGE PROTECTION DISPLAYS LCD DISPLAY: Mains on, Main Voltage, Output Voltage UPS ON / OFF Short Circut, Overload, Battery Low, Load % Mains ON / OFF, Battery Charging / Charged / Battery Low WEIGHT AND DIMENSIONS WITH PACKAGING LXWXH IN MM: 350x290x135 365x320x125 WITH OUT PACKAGING WXDXH IN MM: 310x215x85 310x240x85 NET WEIGHT: 3.2Kg 3.9Kg GROSS WEIGHT: 3.9Kg 4.5Kg GENERAL COMMUNICATION 4 PIN Serial interface for calibration of various parameters OPERATING TEMPERATURE RATE: 0 Deg to 45 Deg RELATIVE HUMIDITY: 0-90% Non Condensing Note : The charging currunt can be increased / decreased using the unieque and first-in-class On Site Charging Rate Control (OSCRS) features

Technical Specifications of 650va,850va & 1450va Ups description 650va 850va 1450va inverter Mode output Voltage At No Load: 220 Vac ± 7 Vac output Frequency: 50.0 Hz ± 1.0hz output Wave Form: sine Wave nominal Battery Voltage: 12 Vdc 24 Vdc max. No Load Current @ Fully Charged Battery: 1.7a , 1.4a battery Low Alarm: 10.6 ± 2 Vdc 21.2 ± 0.2 Vdc battery Low Protection: 10.4 ± 2 Vdc 20.8 ± 0.2 Vdc efficiency: > 85% > 85% no Load Current @ Switch Off/mains Off 0a total Hormonic Distortion: < = 2.5% @ Resistive ups Mode input Voltage Range: 180 to 270 Vac ± 10 Vac changeover Time Maximum: < = 10ms normal Mode input Voltage Range: 90 to 280 Vac ± 10 Vac input Voltage Range for Charging : 90 to 280v ± 10 Vac maximum Change Over Time: < = 10ms charging Mode charging Current @ 220vac (nc) :8a +/- 1a 10a +/- 1a charging Current @ 220vac (hc): 11a +/- 1a 13a +/- 1a boost Charging Voltage: 14.2 ± 0.2 Vdc 28.4 ± 0.2 Vdc float Charging Voltage: 13.7 ± 0.2 Vdc 27.4 ± 0.2 Vdc protections protections: wiring Fault, Battery Voltage Low (4 Auto Retries), Over Load (6 Auto Retries) battery Over Charge, Over Temperature, Short Circuit (one Retry), Battery Deep Discharge Protection displays lcd Display mains On, Main Voltage, Output Voltage Ups On / Off short Circut, Overload, Battery Low, Load % Mains On / Off, Battery Charging / Charged / Battery Low weight and Dimensions with Packaging Lxwxh in Mm: 350x290x135, 365x320x125 with Out Packaging Wxdxh in Mm: 310x215x85, 310x240x85 net Weight: 3.2kg 3.9kg gross Weight: 3.9kg 4.5kg general communication: 4 Pin Serial Interface for Calibration of Various Parameters operating Temperature Rate: 0 Deg to 45 Deg relative Humidity: 0-90% Non Condensing note : the Charging Currunt Can Be Increased / Decreased Using the Unieque and First-in-class On Site Charging Rate Control (oscrs) Features
