Bhawani Steel Fabricators Sahibabad, Ghaziabad, Uttar Pradesh

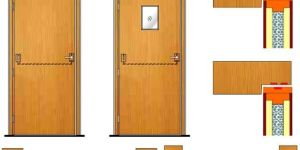

Construction Details Wooden door Frame made out of Hardwood Mirandi Teak/Teakwood / Ivory coast Teak as per requirement. Door Shutter – Internal Frame made of Hardwood Teakwith facing of 3 mm thick commercial ply or veneered plyon both face . Shutter Insulation – Sandwich type Fire rated mineral wooltreated with fire retardant paint & Calcium silicate board. Vision Panel – 1hr/ 2hrs. Fire rated clear Glass ( Optional) Shutter Thickness – 50/55 mm. Intumescent fire/smoke seal 20 X 4mm or 10 X 4mm atall three sides of door frame and shutters excepts bottom. Recommended Hardware SS Ball Bearing Hinges – SS 304 ofSize 100mm x 75mm x 3mm Door Closer – Fire rated Tower / Flush Bolt Optional Hardware Mortise Dead Lock Set with Cylinder- complete withD Shape Pull handle for Push / Pull Operations Mortise Sash Lock with Cylinder –Complete with Lever Handle for Push / Pull Operations 6. Fire Rate Panic Bar – Push Side OperationFire rated Panic Trim – Pull Side Operation

We are the manufacturers of a complete line of low-maintenance, high-end, steel-clad windows and doors. We at Bhawani Steel manufactures customs stock and semi-custom steel Window Frames & Sash; Windows of Special Architectural Shapes. We are specialised in premium entry doors, patio doors, movable and fixed windows in many styles. We also manufacturer of custom steel security windows, steel doors, fire rated windows steel windows and other architectural products.

Bhawani Steel manufactures the Stainless Steel Doors for residential, small commercial and for commercial purpose. Our custom designed; high-end doors are with modern or a classic look. We have different beautiful door options for you residential and commercial safety. We manufacture our doors using only stainless steel components, so they won’t warp or rust, inside or out. Stainless steel naturally resists corrosion and oxidation and does not split or buckle. Our doors stand up to time beautifully.

Stainless steel railings are formed from metal combinations like copper & brass with guarding options of glass panels, perforated & sheet metal & structural glazing. They are used in various types of commercial, corporate & residential buildings, hotel & leisure parks.

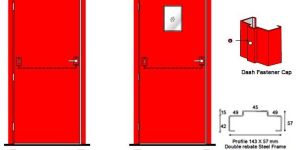

Construction Details Steel Frame Profile Design Frame Thickness – 1.20 mm/ 1.60 mm Galvanized Steel Shutter Sheet Thickness – 1.0 / 1.2 mm Galvanized Steel Vision Panel – 2hrs. Fire rated Toughened clear Glass( Optional) Shutter Thickness – 46 mm Shutter Infill Insulation – Fire Rated Insulation Finish powder coated finish in desired shade Recommended Hardware SS Ball Bearing Hinges – SS 304 ofSize 100mm x 75mm x 3mm Door Closer – Fire rated Tower / Flush Bolt Optional Hardware Mortise Dead Lock Set with Cylinder- complete withD Shape Pull handle for Push / Pull Operations Mortise Sash Lock with Cylinder –Complete with Lever Handle for Push / Pull Operations Fire Rated Panic Bar – Push Side OperationFire Rated External Panic Trim – Pull Side Operation

Insulated Doors are suitable for all applications where hygiene, temperature control and reliability are of paramount importance such as: cold rooms, freezers, chillers, food processing areas, etc. With our range of insulated doors, the customer can expect a quality product at competitive price, manufactured to a critical deadline.

Our Rolling Shutter provide maximum durability and protection and combine excellent designs, careful workmanship, superior materials and constant refinement. The internal structure comprises of the curtain of interlocking slats of heavy gauge material, stronger and neater machine pressed guide channels, robust steel bracket plates, the elegant pressed top cover as well as refined counterbalance assembly, torsion springs, steel pipe shaft and ball bearings for smooth, trouble free operation. We can custom engineer them to meet desired mode of operation like manual pull and push type, mechanical gear operated or electrically operated fire-resistant type.

Construction Details Steel Frame Profile Design Frame Thickness – 1.6 mm Galvanised Steel Shutter Sheet Thickness – 1.6 mm Galvanised Steel Class – 2 hrs. Fire Rated Clear Doors Shutter Infill Insulation – Mineral Wool Insulation Recommended Hardware SS Ball Bearing Hinges – SUS 304 ofSize 102mm x 89mm x 3mm Door Closer – Fire rated Tower / Flush Bolt Optional Hardware Mortise Dead Lock Set with Cylinder- complete withD Shape Pull handle for Push / Pull Operations Mortise Sash Lock with Cylinder –Complete with Lever Handle for Push / Pull Operations Fire Rate Panic Bar – Push Side OperationFire rated Panic Trim – Pull Side Operation

Construction Details Wooden door Frame made out of Hardwood Mirandi Teak/Teakwood / Ivory coast Teak asper requirement. Door Shutter – Internal Frame made of Hardwood Teakwith facing of 6 mm thick commercial ply or veneered plyon both face . Shutter Insulation – Sandwich type Fire rated mineral wooltreated with fire retardant paint & Calcium silicate board. Shutter Thickness – 77 mm. Intumescent fire/smoke seal 20 X 4mm or 10 X 4mm atall three sides of door frame and shutters excepts bottom. Recommended Hardware SS Ball Bearing Hinges – SS 304 ofSize 102mm x 76mm x 3mm Door Closer – Fire rated Tower / Flush Bolt Optional Hardware Mortise Dead Lock Set with Cylinder- complete withD Shape Pull handle for Push / Pull Operations Mortise Sash Lock with Cylinder –Complete with Lever Handle for Push / Pull Operations Fire Rate Panic Bar – Push Side OperationFire rated Panic Trim – Pull Side Operation

Door Type : : Wooden Fire Rated Door
