Boilers Dealers in Gt Road Industrial Area, Ghaziabad

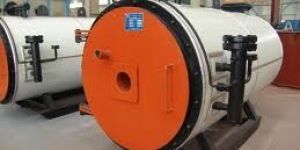

This is the conventional forced-circulation type water tube coil type boiler incorporating the unique principle of combustion known as ‘Reverse Flow. This increases the combustion efficiency and allows a high rate of heat release. It can be offered in both IBR and Non-IBR designs. Construction The boiler comprises of a jacketed MS shell housing a helical coil. The combustion air is forced through the jacketed shell by means of a centrifugal blower thereby getting pre-heated. The flame travels downwards inside the coil and the flue gases reverse upwards thereby giving two passes in the radiant zone ensuring complete combustion and higher heat flux. The third pass of the flue gases is in the convective zone between the coil and the inner shell. Flue gases then travel to the Economiser forming the fourth pass. Advantages Fully Automatic unit Unique four pass design High efficiency and low running cost Minimum site-work, low installation costs Instant steaming within 5 minutes of cold start Built-in economiser increases the operating efficiency Fail-safe design and dependable operating instruments Capacity Range Water Tube Coil Type Boiler is available in capacities from 100 Kg/hr to 1200 Kg/hr

We offer our clients with the superior quality Hot Water Boiler. Hot water boiler is been used to heat the water as per the requirements of process. The capacity of the boilers manufactured by us varies from 500 kcal/hr to 1000 kcal/hr, they are made scale resistant & rust resistant. These boilers are mainly used in automobile, hotel and chemical industries.

Description   The output capacity is sufficient and continuous:   Because of adopting the high efficiency heat transmits spiral gas tube, so the real output capacity of boiler is 10%-15% higher than rated. And either output capacity or thermal efficiency will not decline as extended the running time.   No need special protection when power off:   The hot water is mixed cycle and the water capacity is large, so the special protection is no need for damage caused by vaporization when power off.   The efficiency of the boiler is higher:   The spiral gas tube is placed inside the boiler, so there will be no cool air entre. This can reduce heat loss and the working rate of this boiler is highest.   Heating fast:   There many spiral gas tubes in the boiler and almost half of the boiler shell can be heated, so the temperature can up soon and the time was shorter than the water-tube boilers.   Safe and reliable:   The special structure and materials make the boiler being with high safety.   Primordial dust emissions density is low:   The volume of the boiler is large and there is a dust separation device, so the primordial dust emissions density will be controlled much lower than the standard allowed.
