Dashmesh Switchgear Mohan Nagar, Ghaziabad, Uttar Pradesh

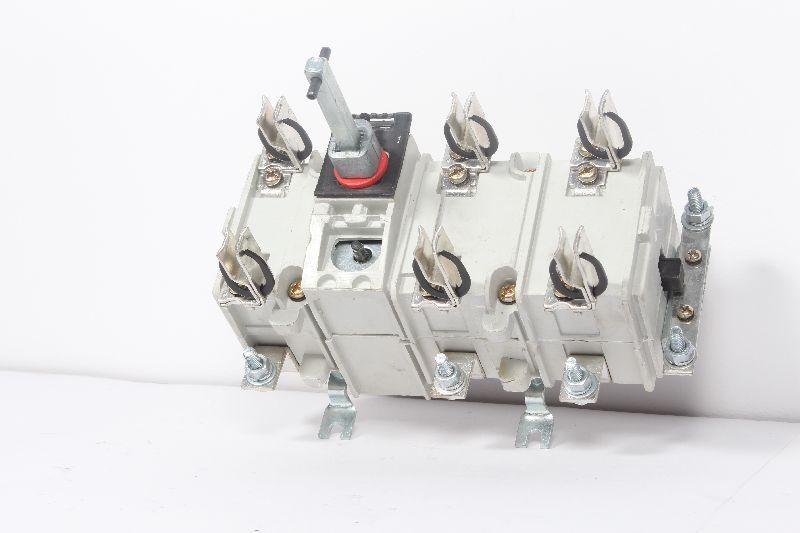

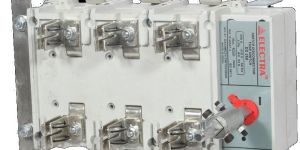

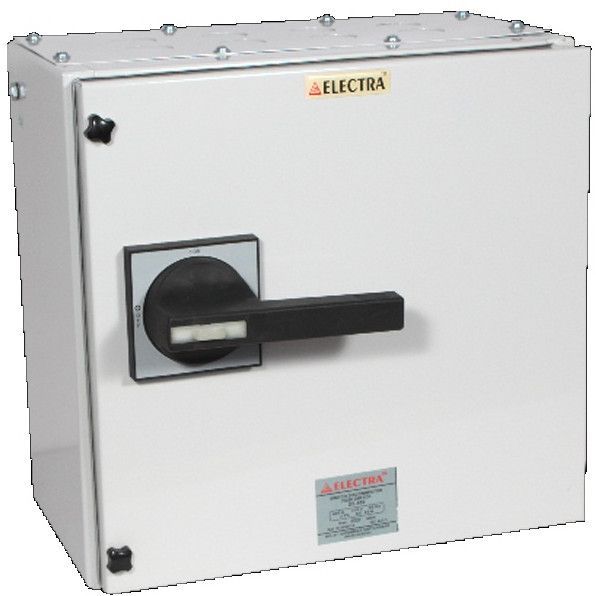

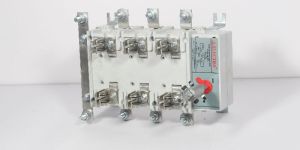

Switch Disconnector Fuse combines the properties of disconnector and load switch. These are designed to carry and break current under normal circuit condition and isolate downstream electrical installation. Available in range from 32 Amp to 630 Amp - T.P.N with Utilization Category AC23 as Per IEC 60947/ IS13947 standards. Available in Both Open Execution and in Sheet Steel Enclosure. Available in Both DIN (Knife Type) & BS (Bolted) Type Fuse Holders. Quick make and Break Mechanism ensures high reliability of product

Number Of Flower : Switch Disconnector Fuse

Material : Sheet Steel

Packaging Type : Depends On The Enclosure Type

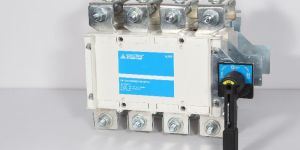

Onload changeover switch open type and with enclosure both available.

Number Of Flower : On Load Changeover Switch

Brand Name : Electra

Material : DMC SMC

Certification : CE Certified

Condition : New

Country of Origin : India

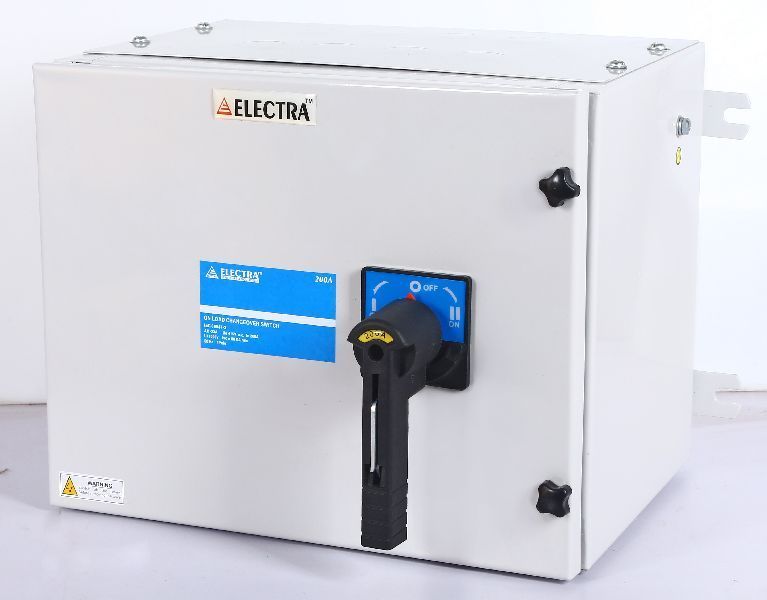

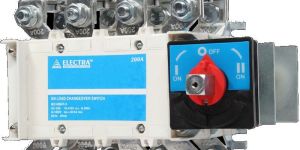

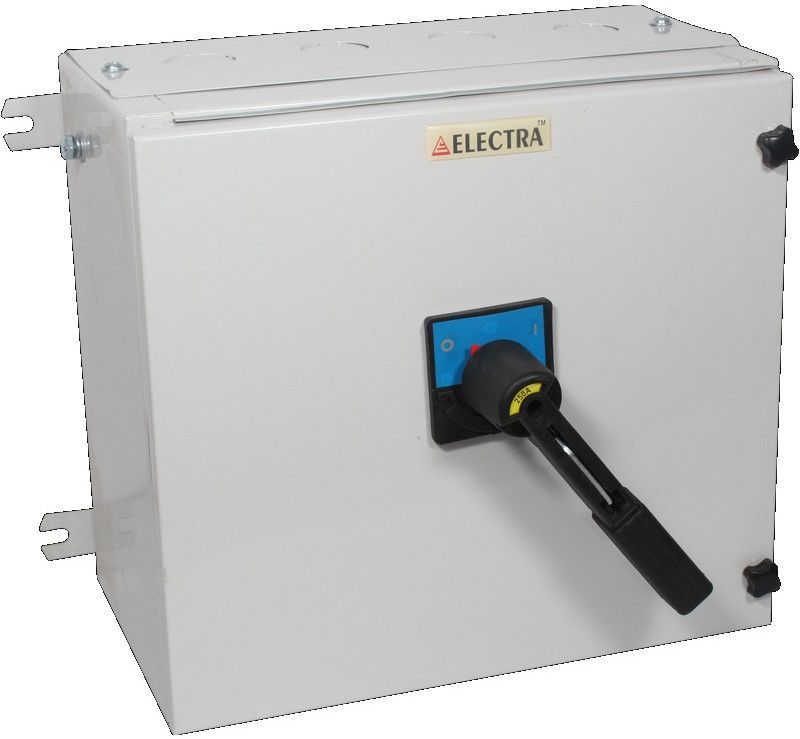

Onload Changeover Switches also known as transfer switches are designed to deliver high performance and durability. These Changeover are used to transfer electricity from main source to alternate source and vice versa when under load between two low voltage power circuits. It also provides source inversion or switching when onload. Available in Open Execution and Sheet Steel Enclosure (S.S). Available in rating from 63-1000 A, 415V, AC23A in 4P version. Designed to be wall mounted in horizontal and vertical position. Comes with Phase barrier as a standard safety feature. Comes with safety handle with door padlock facility. Any pole suitable for neutral.

Material : Sheet Steel Enclosure

Onload Bypass Switch conforms to IS/IEC 60947-3. These switches are used to bypass electrical load to normal supply in low voltage power distribution circuits in case if U.P.S or Servo Fails. Available in 63-1000A, 415v in version 4P version. DMC body with high mechanical and dielectric strength. Available in Open Execution and Sheet Steel Enclosure (S.S). High grade copper with silver plating. Safety from short circuits and Overcurrent.

Number Of Flower : Onload Bypass Switch

Country of Origin : 415v

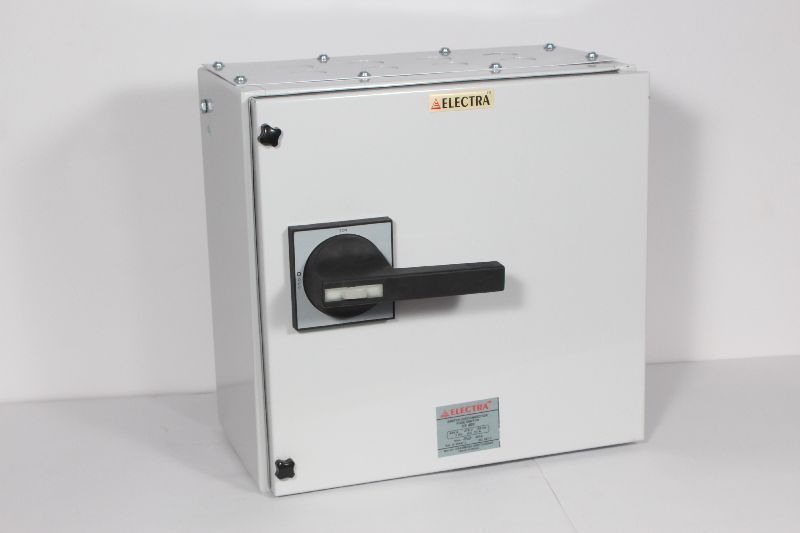

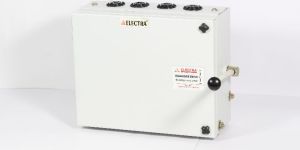

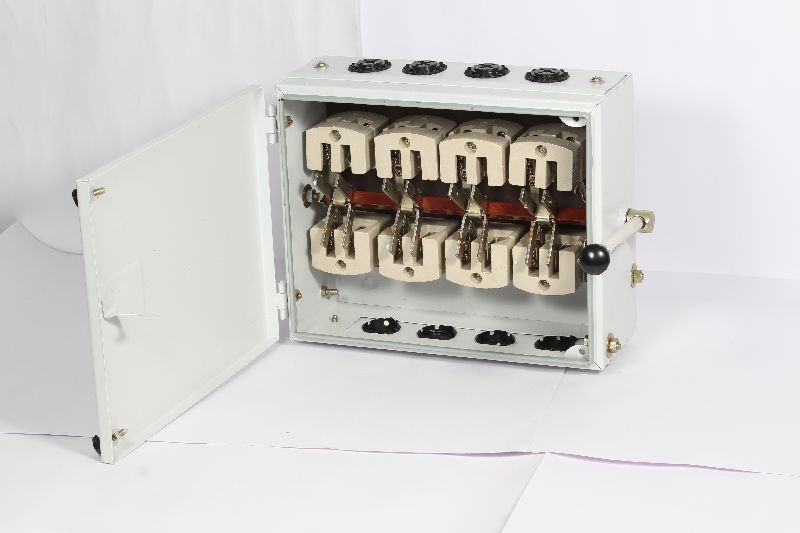

Offload changeover provide reliable and safe changeover between the two sources. The load connected to the other source is supplied after a time delay provided with a help of a unit. It avoids surges or sparking which can occur due to sudden connection of load after changeover. Conforms to IEC 60947/ IS13947-3 standards. Available in 63-1000A, 415v in 4P version. Designed for high endurance and dielectric strength. Comes with Door interlocking provision as a standard safety feature.

Number Of Flower : Changeover Switch

Offload changeover provide reliable and safe changeover between the two sources. The load connected to the other source is supplied after a time delay provided with a help of a unit. It avoids surges or sparking which can occur due to sudden connection of load after changeover.

Packaging Type : Box

Usage : INDUSTRIAL

Brand Name : ELECTRA

Material : COPPER

Shape : Rectengular

Certification : ISO 9001:2008 Certified

Design : Standard

Condition : New

Max. Voltage : 440 V

Mechanical Life : 5 Year

Surface Finishing : Power Coated

Phase : 3 PHASE

Country of Origin : India

Corrosion Resistance : Yes

Current Rating : 32-1250 AMP

Rust Proof : Yes

Switch Type : Regular

Switch Operation : ON-OFF-ON

Metal clad plug and sockets are used for connection of all types of application where there is a need of possible connect/disconnect. These plug keeps the socket safe from continuous use by providing a safe, reliable and fast way of connection. Majorly used for complete distribution portfolio for MCB. Breaking capacity of 6kA Conforms to IEC 60898 Use as a protection device to provide safe and fast cutoff. Available in the below range Single phase 20 amp (2P+E) 220v Three phase 20 amp & 30 amp (3P+E+N) 440v

Material : Metal

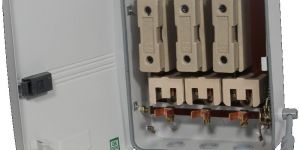

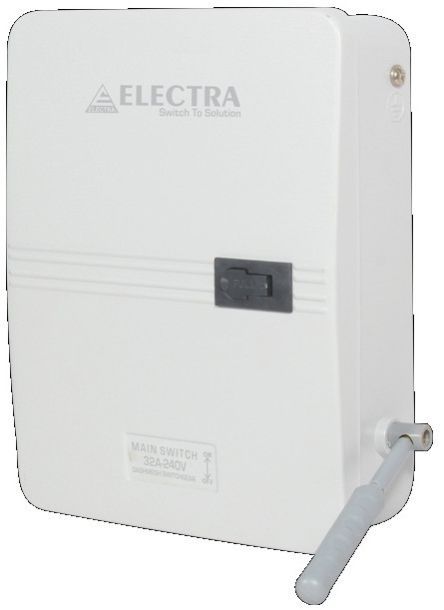

Rewirable main switch provides additional safety to the circuit from overload by blowing off the fuse wire. These fuses can be re-wired again. These switch are fitted with sturdy side operating handle for quick make and break mechanism. Available in range from 32 Amp to 200 Amp - T.P.N Conforms to IEC 60947/ IS13947-3 standards. Designed for high mechanical, thermal & dielectric properties. Comes with Door interlocking provision as a standard safety feature.

Number Of Flower : Main Switch

Material : Sturdy Materials

Packaging Type : Assorted Colors

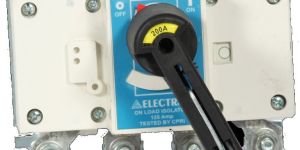

Load Break Switch/ Isolator is a safety switch used to connect or disconnect low voltage power supply circuit. They are manually operated multipolar device. Our load break switch are tested by Central Power Research Institute (C.P.R.I). Available in ratings from 63-1000A, 415V. Comes with door interlock feature Quick make and break mechanism Double breaking per pole for providing short circuit protection High Mechanical and thermal resistance Improved breaking performance via rapid switching

Number Of Flower : Isolator

Rated Voltage : 415V

HRC Main switch are used to provide stabilize load to the circuit. These switches are fitted with BS type fuse which blows on overload. Once blown they can be replaced. Designed to be wall mounted in horizontal and vertical position. Available in range from 63 Amp to 1000Amp - T.P.N Conforms to IEC 60947/ IS13947-3 standards. Comes with Door interlocking provision as a standard safety feature. Quick make and break mechanism ensures high reliability of product.

Number Of Flower : Main Switch

Application : Stabilize Load To The Circuit

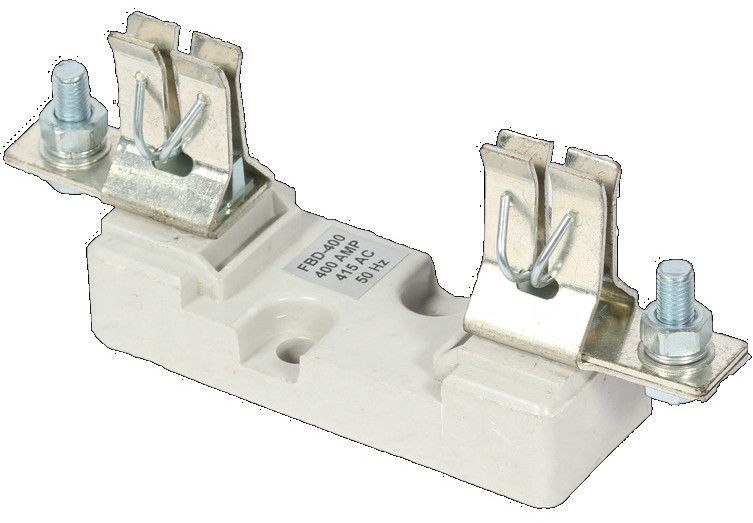

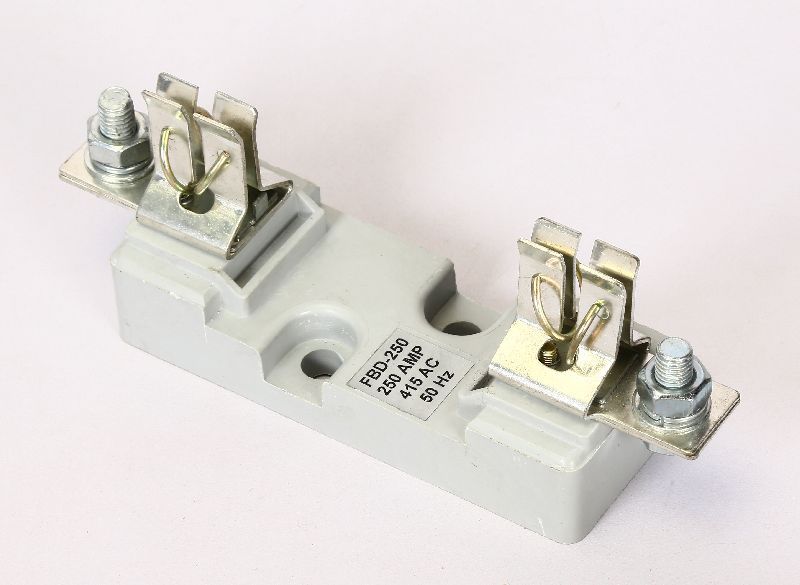

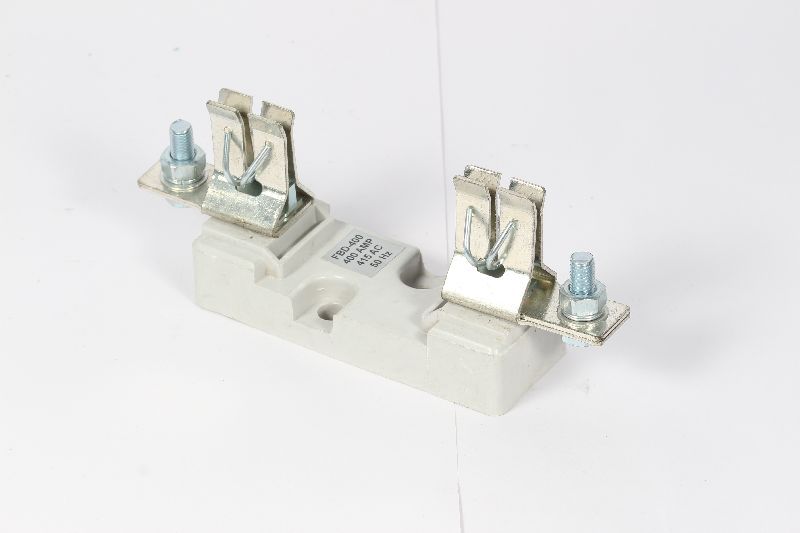

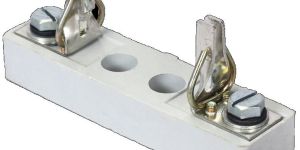

High Rupturing Capacity (HRC) Fuse Bases are designed to meet the modern requirement of Industrial Installation for safety. The fuse carries heavy short circuit current for a considerable period of time to protect the circuit. When the short circuit current flows through the fuse elements causing it to melt and vaporized. The chemical reaction between the silver vapor and filling powder forms a high resistance substance suitable to quench the arch and thus protecting the circuit. Available in 32-630A,415V Cheaper than other fuses. Easy installation and use with zero maintenance Break up capacity upto 10x the fuse trip current High durability and reliability due to longer rupture time. Low watt loss and 80kA breaking capacity.

Number Of Flower : Switch Disconnector Fuse

Certification : IAF Certified

Application : Residential

Country of Origin : 440V

Condition : New

Power : 5-10Kw

Country of Origin : India

Breaking Capacity : 80k

High Rupturing Capacity (HRC) Fuse Bases are designed to meet the modern requirement of Industrial Installation for safety. The fuse carries heavy short circuit current for a considerable period of time to protect the circuit. When the short circuit current flows through the fuse elements causing it to melt and vaporized. The chemical reaction between the silver vapor and filling powder forms a high resistance substance suitable to quench the arch and thus protecting the circuit.

Frequency : 50-60Hz

Packaging Type : Carton Box

Brand Name : ELECTRA

Certification : ISO 9001:2008

Country of Origin : 440V

Condition : New

Display Type : Manual

Usage : INDUSTRIAL POWER SUPPLY, PANELS

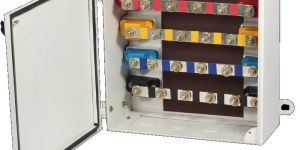

Busbar chambers provide safe, reliable & economical distribution of power to the various types load as per requirement of system. These busbar are capable of avoiding sparking, heating, wire to wire joints and power leakage in the supply/circuit. Available in range from 32 Amp to 630 Amp – 4 Pole Fitted in electrolytic copper ensures temperature rise within permissible limits Designed to be wall mounted in horizontal and vertical position. Liberal space between live parts for easy installation.
