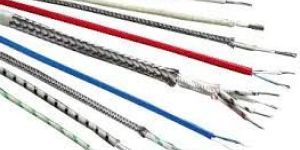

A thermocouple is a junction of two dissimilar metals which generate a voltage proportional to the temperature of the junction (called seebeck effect). For many industrial heating processes, particularly those carried out at high temperatures, a thermocouple is the most accurate, convenient and simple method of temperature measurement. In some instances, it is the only feasible method.

High Performance from -200°C to 260°C (Peak 300°C) Unaffected at soldering temperatures; Autoclavable Suitable for High-Density wiring; Smooth Internals allow closer fit Superior Tape-Wrapping-Sintering (TWS) Method provides good mechanical stability, high burst pressure, superior tear resistance; and long flex-life High Dielectric Strength Resistant to UV Radiation; Freedom from Ageing, Fungus, Water Absorption Fire non-propagating Inert to almost all chemicals, solvents, fluxes, oils (few exceptions); Biocompatible; Zero extractables 100% Inspected

Greater stability, accuracy, repeatability in some cases than thermocouple cables, The product referenced above represent the most popular constructions. Other constructions can be manufactured to meet individual specification and application requirements. Contact us for additional information.They serve as an extension from the thermocouple to the measuring device. Thermocouple Extension cables must be of the same material as the thermocouples and compensating cables of material having the same thermo-electric characteristic as the thermocouple within the given temperature range.

In terms of industry applications we cover Defence, Aerospace, Navy, Medical, Automotive, Telecommunication and other electromechanical applications.Garg Associates produce a wide variety of Fluropolymer wires, PTFE , ETFE , FEP equipment and multicore cables, coaxial cables, thermo couple cable, high powered shielded Multicore cables, flat cables and high speed data cables.

100% physical and electrical testing for conformance to applicable MIL and ASTM standards, Proprietary TWS (Tape wrap sintered) material is free of pinholes and offers the highest uniformity and concentricity, Well Equipped lab for measurement of resistance, capacitance, impedance, attenuation, spark test and dielectric test.

Evaluation of design and supply of technical data such as OD and weightmeter Can meet stringent requirement of twistinch which affect common mode rejection ratio (CMRR) Wire of Insulation ratings up to 2500 V AC can be embedded in a multi core cable High-reliability in high-temperature interconnections for signal and control applications Production of Small lengths ( e.g. 50 meter) of complex cables are our specialty Experience in producing a great variety of multi-core cables ranging from shielded twisted pairs of AWG 34 to AWG 12 Versatile equipment to produce multiple kind of shields (foil, braid, served) in a single cable

Kapton isolator , with or without SPC or NPC braid, PTFEFEP jacket of prescribed standard colours, with or without S.S. over braid. Standard jacket colours- for type T-Brown, type J- Black and type K –Green.We offer different core and jacket colour, 14 0.2 mm conductors, parallel lay design, special tolerances and other types of thermocouples wires and customized construction for thermocouple cables. Contact us for additional information.High reliability, small size and highly fire resistant.

Excellent resistance to corrosion.Excellent chemical, electrical and high energy radiation resistance properties.Highly transparent and resistance to sunlight.Designed for application with wide temperature range.

The size and weight of electronic and electrical equipment has drastically reduced overs years, requiring smaller and smaller high voltage interconnections in such professional equipment and devices. The reduced life of insulating materials under corona imposes limitations on miniaturisation and choice of materials. Long life at high temperatures and voltages with significantly smaller diameters and weights HVCR cables are free from ageing, tracking and mechanical stress-cracking failures. GARG designs permit much higher CW and even higher PeakImpulse power rating. In some recent tests on long samples of AWG 181930 X 10 CR, rated at 16 KV AC36 KV DC, repeated application of HV DC of 140 KV did not cause any breakdown

Insulated heating wire with parallel-laid temperature sensor wire of pure Copper or Silver Plated Copper having high temperature coefficient of resistance, under a common PTFE jacket (with zero moisture absorption) for floor heating.

Country of Origin : 9 V - 1000 V

Apart from round multi-core cables, FLAT Bonded Woven Ribbon cables are also available with plain cores, or with twisted pairs, or with shielded wirescoaxial cables as cores. In many situations, flat cables provide neat solutions for interconnections. When the space is limited, the flat cable can be set against the wall and take much less space than a round multi-core cable with same number of cores. Also, where a repeat movement back and forth is desired (for example a drawer or door, opening and closing, or a printer head etc), flat cables are quite useful. In some applications, the spacing between adjacent cores of flat cables can play an important role, say for deciding the capacitance. An example is the TV antenna cable.

Country of Origin : 250 Volts as voltage also 600 V , 1000 V

PTFE Jackets over Coaxial Cables are difficult -- But They are our specialty Characteristic Impedance tested on 100% length by on a Time Domain Reflectometer Attenuation (signal loss) measured on samples Attenuation of cables processed by us is 10 to 25% lower than the permissible maximum given in US MIL-C-17. Low micro-phonic noise cables (less than 5 micro-volts) for sensitive transducer interconnects and very low capacitance cables for instrumentation (e.g. 1.8 mm OD with 40 pFm). Miniature & Subminiature RF Coaxial And Triaxial Cables Designed to customer specifications Over forty years experience in PTFE coaxial cables field Supplier for many critical applications requiring high reliability

GARG has utilized superior temperature stability of PTFE (-200°C to 260°C) to develop safe, efficient and long-life PTFE insulated heaters. GARG heating elements are made of various applications, Remote area heating elements: Fixed wattage and fixed length heating elements with integral heating leads under common PTFE cover with same or different colour to identify the heating zone, for heating of remote areas.
