DETAIL: DISTANCE BETWEEN CENTRES 2,000 MM HEIGHT OF CENTRES, APPROX. 280 MM MAX. LENGTH OF WORKPIECE 2,200 MM GRINDING LENGTH 2,000 MM WORKPIECE �, MIN.MAX. 10 - 550 MM GRINDING � ON THE TOTAL LENGTH 400 MM WORKSPINDLE BORE ENLARGED TO 105 MM LEAD RANGE, MIN.MAX. 1 150 MM MAX. HELIX ANGLE, RIGHT LEFT 30 40 � GRINDING WHEEL, � X WIDTH 500 X 50 MM PROFILE SIZE: MODULE 14 MM BALLSCREW THREADRADIUS 12.5 MM WORKPIECE SPEEDS, STEPLESSLY ADJUSTABLE 0.1 - 25 RPM QUICK FEED 60 RPM GRINDING WHEEL SPEEDS, APPROX. 1,700 - 2,540 RPM SPINDLE DRIVE 8 KW TOTAL ELECTRICAL LOAD, APPROX. 20 KW - 380 V - 50 HZ WEIGHT, APPROX. 15,000 KG

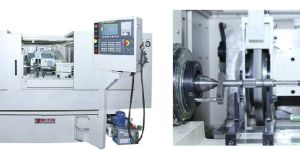

This machine designed for precision Thread Grinding application with higher productivity. Ideally suitable for all type of threads with different Helix angle.Compact Foot print.
Motorized dressing and wheel spindle as optional.
Higher pitch accuracy.
More flexible Helix angle up to ± 25⁰
Helix angle tilting with manual auto.
