Tapes Dealers in Giridih

Rooted in Giridih(India), the company is providing qualitative products and that too at the most reasonable prices. We are the most demanding entity when it comes to MICA TAPES!

Ruby Mica® Glass / MI. Resin-Rich Tape is a lamination of uncalcined muscovite mica paper with glass cloth. A thermo setting tri-functional epoxy novolac resin is used as a bonding agent making it a Class F insulation product. lhe tape is tack-free in cold conditions. An LDPE film interleaving Is used to prevent the tape interlayers from sticking to each other during ambient temperature fluctuations.   Our resin-rich mica tapes make the coils electrically-stronger, and gives superior coil-heat dissipation capabilities. The homogeneous insulation produced after pressing and curing has a temperature-index of at least 155. APPLICATION Main slot wall insulation of bars / coils in HT motors and turbo-generators.. molded rigid larninate form can also be used to insulate commutators and form electro-thermal sleeve insulation for various applications. AVAILABILITY Tape roll / Folium /Wrapper:Length : 25 – 500 mWidth : 20 – 1000 mm STORAGE 6 months at ≤ 20°C • 12 months at ≤ 5°C

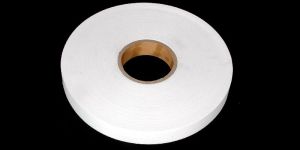

  The double-side semi-conductive laminated water- blocking tape is composed of semi-conductive polyester non-woven fabric, polyacrylate swelling powder, along with corrosion inhibitor. It is used for water-blocking armouring/between cable components.

We are offering pe film mica tape. Firwo ® pj5460-f pe film mica tape for fire-resistant wire & cable, a band-shape electrical and thermal insulating material, consist of phlogopite mica paper banded to supporting materials of pe film, impregnated with high temperature resistant silicone resin. Details :- 1. Highest dielectric strength 2. Higher tensile strength for high speed winding or lengthwise wrapping 3. More excellent flexibility

Mica Tape, Mica Shield, Mica Linings, Mica Washers, Mica Scra

In development of the Mica tapes, we use mica paper, woven E grade fiberglass fabric and laminated with polyester film on one or both sides.

We offer the best quality Glass Mica Polyester Tape. Glass Mica Polyester Tape is suitable for generator field and armature coils requiring maximum resistance to high voltage and temperature.
