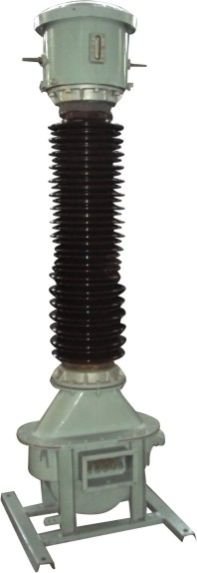

We manufacture top tank outdoor oil immersed potential (voltage) transformer upto 132kv system voltage. The top tank acts as an expansion chamber for the transformer. This kind of design has two tanks. The core and windings are contained in the lower tank. The primary winding is taken through the ht insulator to be connected to the primary terminal arranged on the top tank. The secondary windings are connected to secondary terminals placed on the lower tank. In this design, the top tank provides space for expansion of oil

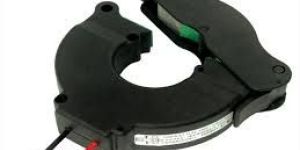

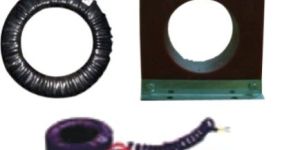

split core current transformers are just like the typical current transformer, the split-core current transformer measures alternating current flowing through a conductor. The electrical performance of split-core current transformers is as good as the continuous toroidal core transformer. split core current transformers may be either ring type or rectangular type. Suitable for higher ratio cts, ring type construction is preferred from the economical point of view. These type of transformers are usually insulated with pvc casing and are primarily used in electrical systems for metering and protection. The standard secondary output from such transformers are 1 ampere or 5 amperes. split core current transformers are widely used in switch gears, distribution systems, electrical generators, indoor or outdoor control panels and control instruments.   macroplast manufactures split core current transformers of 1, 0.5, 0.2, 0.2s accuracy class. Our cts are constructed with only a single secondary winding. We possess the expertise to manufacture these cts depending on client specifications and requirements.

Number Of Flower : Current Transformers

Usage : Control Panels

Frequency : 200-400Hz, 50-100Hz

We are the main supplier of this product.

Number Of Flower : Servo Voltage Stabilizer

Certification : ISO 9001:2008

Country of Origin : 380V, 440V

Output Type : AC Single Phase

Automatic Grade : Automatic

Feature : Auto Cut, Easy Operate

Cooling System : Air Cooling

Produce Power : 5-10kw, 50-100kw

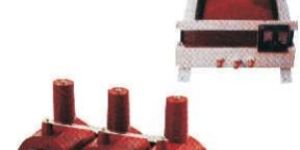

The resin cast PTs are normally used fo indoor application inside the panels.The  resign cas PTs cab be used for outdoor application also provided it is enclosed in hermetically sealed metal tank.

Phase : 2

Usage : Machines, Control Panels, Industry

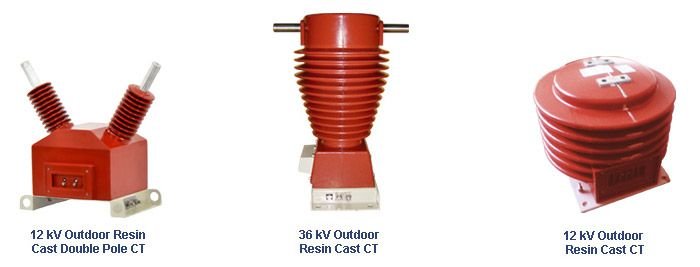

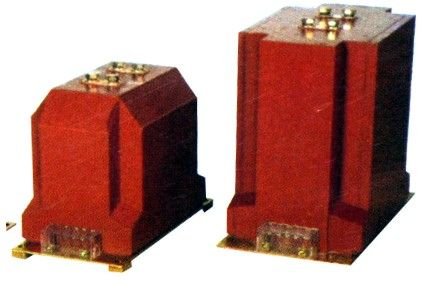

The Resin Cast Cts Are Normally Used For Indoor Application Inside The Panels .the Resign Cast Cts Can Be Used For Outdoor Application Also Provided It Is Enclosed In A Hermetically Sealed Metal TankConstruction Features : Secondary Terminal Ct Body Mounting Plate Primary Terminal Earthing Terminal

Phase : Single Phase

Total Carbohydrate : 1 Year

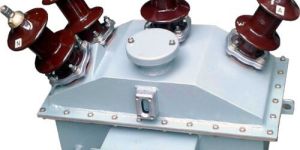

Residual Voltage Transformers (RVTs) are category of instrument transformers which are in electrical systems to protect capacitor banks from earthing faults and prevent damage. The main function of these class of instrument transformers is to detect neutral to ground fault conditions and discharge the capacitor banks as and when required automatically. In an electrical system in normal working conditions, the windings of an RVT will have no voltage output. On the other hand, in the event of an earth fault a voltage will be developed across the open delta winding of the transformer which will activate the relays and cut the power connection thereby protecting the measuring equipments from damage. The function of RVTs is similar to voltage transformers in some areas. However their and utility is different from one another. It is probably one of the reasons why many people consider RVTs as a sub-group of voltage transformers.   Macroplast manufactures Residual Voltage Transformers for varied system voltages. The most common systems voltages are 11 KV, 33 KV system voltages in which five limb core construction is employed instead of conventional three limb construction. The outer two limbs carries the residual flux and the secondary windings are connected in open delta fashion.

Number Of Flower : Residual Voltage Transformer

Certification : ISO 9001:2008 Certified

Residual Voltage Transformers (RVTs) are a category of instrument transformers which are used in electrical systems to protect capacitor banks from earthing faults and prevent damage. The main function of these class of instrument transformers is to detect neutral to ground fault conditions and discharge the capacitor banks as and when required automatically. In an electrical system in normal working conditions, the windings of an RVT will have no voltage output. On the other hand, in the event of an earth fault a voltage will be developed across the open delta winding of the transformer which will activate the relays and cut the power connection thereby protecting the measuring equipments from damage. The function of RVTs is similar to voltage transformers in some areas. However their and utility is different from one another. It is probably one of the reasons why many people consider RVTs as a sub-group of voltage transformers. Macroplast manufactures Residual Voltage Transformers for varied system voltages. The most common systems voltages are 11 kv, 33kv system voltages in which five limb core construction is employed instead of conventional three limb construction. The outer two limbs carries the residual flux and the secondary windings are connected in open delta fashion.

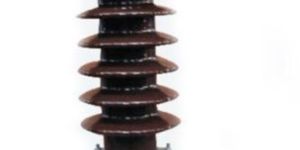

Macroplast manufactures Potential transformers with top tank (expansion chamber) upto 132 Kv system voltage. This design has two tanks. The core and windings are contained in the lower tank. The prima, winding is taken through the HT insulator to be connected to the primary terminal arranged on the top tank. The secondary windings are connected to secondary terminals placed on the lower tank. In this design, the .Top Tank provides space for expansion of Oil.Construction Features : Primary Terminal Oil Level Indicator Pressure Release Device Oil Expansion Tank Bushing Bushing Clamp Secondary Terminal Box Main Tank (3 Mm Thk) Name & Rating Plate Earthing Terminal Lifting Lug

Total Carbohydrate : 1 Year

Voltage Ratio : 25 KVA to 5 MVA

Number of Phase : Three Phase

Usage : Industrial

This Design Has Only One Tank. The Cores And Windings Are Arranged In The Tank And The Primary Windings Are Taken Through Ht Insulators To Be Connected To Primary Terminals. In This Design, Unlike Dead And Live Tank Design, Two Ht Insulators Are Provided For Incoming And Outgoing Conductors. Lt Terminal Box Is Also Provided On The Same TankFeatures : Bushing Cap Bushing (Cji/ge/tayal/re Etc.) Bushing Clamp Earthing Terminals Lifting Lugs Secondary Terminals Box Cable Gland Mounting Hole Oil Level Gauge Gasket Core & Windig

Usage : 33Kv Voltage System

Live Tank type Current Transformers have cores, primary and secondary windings arranged in the top tank. The primary windings are then connected to primary terminals which are also arranged in the top tank. The secondary windings are taken through the HT insulator to the bottom mounting base. The mounting base has arrangement for secondary terminals inside the secondary terminal box.Construction Features : Pressure Release Diaphram Oil Filling Plug Oil Level Indicator (Back Snow White) Primary Terminal Oil Tank With Cover Name And Rating Plate Bushing Clamp Bushing Secondary Terminals Box Earthing Terminals Lifting Hole Base

Phase : Double Phase

Total Carbohydrate : 1 Year

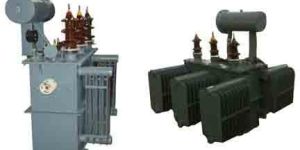

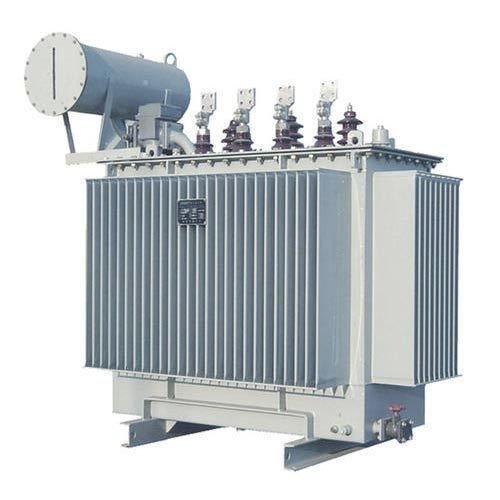

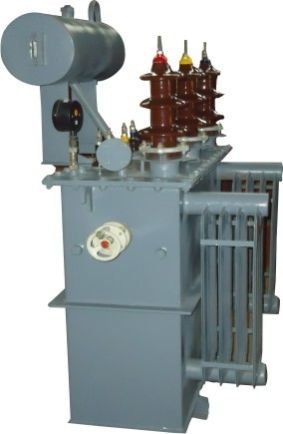

Distribution transformer derives its name from its usage in the electricity grid where its function is to step down the electrical voltage in the distribution line to a level that can be used by electricity consumers. Distribution transformers are used by power utilities to distribute electricity to domestic and commercial customers at a voltage that can be used by them for various purposes. Distribution transformers refer to a large family of transformers and includes pole mounted transformer, pad mounted transformer, single phase transformer, three phase transformers and underground transformer. The design, construction and functionality of each of these sub-category of distribution transformers are different from one another. Distribution transformer manufacturers follow their own design and construction features to manufacture distribution transformers. The overall objective is to meet client objective and customize it according to the requirements in the electrical system. Macroplast is amongst the leading names of distribution transformer manufacturers India. We manufacture outdoor ONAN Cooled Distribution Transformers upto 2500 KVA with system voltage of upto 33 KV. In the few years, we have supplied distribution transformers to several state utilities, government bodies, and leading private organizations. We have the right knowledge, years of experience and technical capabilities in distribution transformer manufacturer in India. The key features of our Distribution transformers are: • Stack core surrounded by Primary and Secondary windings housed in a steel tank• Primary and Secondary terminals or studs• High Voltage and Low Voltage Insulators• Off-load tap switch• Silica Gel Breather• Expansion Tank or Conservator• Oil Level Indicator• Thermometer Pocket• Oil Filling Plug• Oil Drain Valve• Arcing Horns

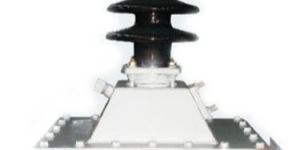

We manufacture outdoor oil immersed potential (voltage) transformer without top expansion tank upto 33kv system voltage. This design has a single tank. The core and windings are contained in the lower tank. The primary winding is taken through the ht insulator to be connected to the primary terminal arranged at the top of the ht insulator. The secondary windings are connected to secondary terminals placed on the lower tank.

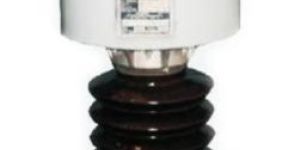

Outdoor Oil Immersed Live Tank Current Transformer is a type of electrical current transformer in which the core of the transformer along with its secondary windings is placed in the top tank. They are also known an outdoor oil filled current transformers. Live Tank Current Transformers are different from Dead Tank Current Transformers in their design and tank fabrication. At a macro level, the basic functionality of both remain the same, which is to step down high voltage current to low voltage current for measurement by energy meters or other such instruments. In an outdoor oil immersed live tank current transformer, the core and secondary windings are insulated from high voltage with insulating material and placed in the top tank. In Live Tank CTs, the primary conductor is shorter in length which makes it stronger to withstand high short circuit currents. Also, the primary winding in Live Tank Current transformers is homogeneously distributed around the core to create a current transformer which has low reactance and excellent transient performance. Live Tank Current transformers are smaller and compact in size compared to Dead Tank Current Transformers. They are also more economical to be produced and are hence cheaper than Dead Tank CTs. Macroplast manufactures oil filled live tank Current transformers upto 132 KV system voltage. The Live tanks CTs manufactured by us have cores, primary and secondary windings arranged in the top tank of the transformer body. The primary windings are then connected to the primary terminals which are also arranged in the top tank. The secondary windings are taken through the HT insulator to the bottom mounting base. The mounting base has arrangement for secondary terminals inside the secondary terminal box

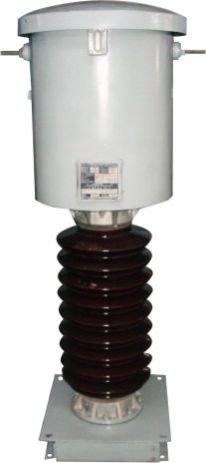

Outdoor Oil Immersed Dead Tank Current Transformer is a type of current transformer in which both the core and secondary windings of the transformer are placed in the bottom tank. This bottom tank is then earthed to make it dead, and hence the name dead tank transformer. In Dead Tank CTs, the primary winding is made to pass through an insulator constructed of porcelain material. It is then connected to the bottom tank and insulated from the tank and the cores of the transformer. The internal design of Dead Tank Current Transformers ensure the primary conductor produces maximum mechanical force during short time dynamic current to prevent damage to internal insulation. Outdoor oil immersed dead tank current transformer is also known as outdoor oil filled current transformer. Both have same functionalities. The biggest advantage of Oil Filled Dead Tank Current Transformers in comparison to Live Tank Current transformer is its high seismic strength. Since the core and secondary windings are place in the lower tank, the stability of Dead tank CTS is much stronger. Also, it is easier to transport them from the place of manufacturing to the place of installation with lesser chances of breakage or damage. Dead Tank Oil Filled Current transformers are however expensive and heavy compared to Live tank current transformers. Macroplast manufactures outdoor oil filled dead tank current transformer of various system voltages. In our Dead tank CT design, the cores, primary and secondary windings are arranged in the lower tank. The primary windings are taken to the top tank through HT insulators and connected to the primary terminals. The secondary windings are connected to the secondary terminals arranged inside the secondary terminal box placed on the bottom tank. The Dead Tank design is preferred where the No. of CT Cores are more because more cores means more weight and lesser stability. In such cases, Live Tank CTs are not preferred from Technical Point of view.

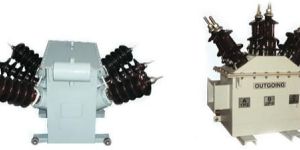

Current and potential transformers are usually used as single phase units. However nowadays, combined ct-pt units are the most commonly used variant of current and potential transformers, especially while being used for metering purposes for single or multiple ratios. At times, an additional core is provided too for protection purpose. The combined ct-pt units is used for - 3 phase 3 wire metering system or for 3 phase 4 wire metering system. In case of combined ct-pt units we use a single unit consisting of 23 single phase cts and one 3 phase pt in place of 23 single phase cts and 3 single phase pts.

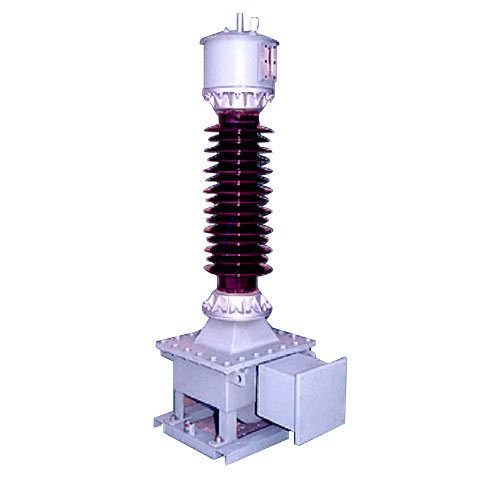

outdoor oil filled potential (voltage) transformer is a voltage transformer design in which there are two tanks. This is a special kind of voltage transformer and is used generally for higher system voltages upto 132 kv. the lower tank consist of primary windings, secondary windings & core. The upper tank is used due to the bushing limitations to withhold graded insulation of hv windings. Other purpose to provide a conservator tank is for oil expansion during high temperatures. macroplast manufactures top tank outdoor oil filled potential (voltage) transformer upto 132kv system voltage. The top tank acts as an expansion chamber for the transformer. This kind of design has two tanks. The core and windings are contained in the lower tank. The primary winding is taken through the ht insulator to be connected to the primary terminal arranged on the top tank. The secondary windings are connected to secondary terminals placed on the lower tank. In this design, the top tank provides space for expansion of oil oil filled voltage transformer is a type of instrument transformer whose function is to step down voltage in an electrical system to a level measurable by various metering instruments. we manufacture outdoor oil filled potential (voltage) transformer without top expansion tank upto 33kv system voltage. This design has a single tank. The core and windings are contained in the lower tank. The primary winding is taken through the ht insulator to be connected to the primary terminal arranged at the top of the ht insulator. The secondary windings are connected to secondary terminals placed on the lower tank.   the outdoor oil filled potential transformer without top conservator tank is generally used for medium system voltages like 11, 33 kv etc. In such lower system voltages, uniform insulation is sufficient to withstand high voltages and is feasible from both technical & economical point of view.

Number Of Flower : High Voltage Transformers

Certification : ISO 9001:2008 Certified

Frequency : 60hz

Operating Type : Automatic

Cooling Type : Air Cooling

Power : 500-750kw, 750-1000kw

We are the main supplier of this product.

Number Of Flower : Oil Filled Transformer

Certification : CE Certified

Application : Industrial Use

Availability : 100-1000kg

Country of Origin : 440V

Automatic Grade : Automatic

Power : 6-9kw, 9-12kw

Driven Type : Electric

Phase Type : Single Phase

Production Power : 250-500kw, 500-750kw, 750-1000kw

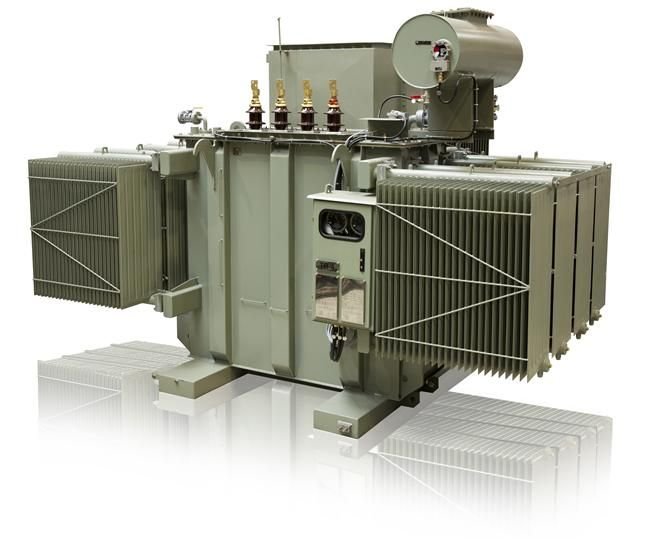

distribution transformer derives its name from its usage in the electricity grid where its function is to step down the electrical voltage in the distribution line to a level that can be used by electricity consumers. Distribution transformers are used by power utilities to distribute electricity to domestic and commercial customers at a voltage that can be used by them for various purposes. distribution transformers refer to a large family of transformers and includes pole mounted transformer, pad mounted transformer, single phase transformer, three phase transformers. The design, construction and functionality of each of these sub-category of distribution transformers are different from one another. Distribution transformer manufacturers follow their own design and construction features to manufacture distribution transformers. The overall objective is to meet client objective and customize it according to the requirements in the electrical system. macroplast is amongst the leading names of distribution & power transformer manufacturers in india. We manufacture outdoor onan cooled distribution transformers upto 2500 kva with system voltage of upto 33 kv. In the few years, we have supplied distribution transformers to several state utilities, government bodies, and leading private organizations. We have the right knowledge, years of experience and technical capabilities in distribution transformer manufacturer in india. the key features of our distribution transformers are:   stack core surrounded by primary and secondary windings housed in a steel tank primary and secondary terminals or studs high voltage and low voltage insulators off-load tap switch silica gel breather expansion tank or conservator oil level indicator thermometer pocket oil filling plug oil drain valve arcing horns

Number Of Flower : Oil Cooled Power Transformer

Certification : ISO 9001:2008 Certified

Application : Industrial Use

Condition : New

Output Type : AC Single Phase, DC

Automatic Grade : Automatic

Tensile Strength : 175-200Mpa, 75-100Mpa

Cooling System : Oil Cooled

Production Power : 750-1000kw

Temperature Capacity : High Temperature, Low Temperature

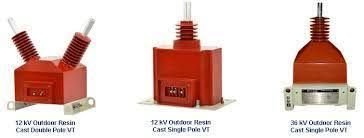

Cycloalliphatic Resin Cast Potential (Voltage) Transformers are dry type transformers and are used for outdoor applications. Their key function is to step down voltage in an electrical system. These class of transformers are manufactured using high quality resin which is a strong synthetic polymer developed from epoxide chemicals. The scientifically proven insulation properties of resin make it an excellent material for manufacturing dry type transformers. Both the Potential Transformer & Voltage Transformer are one and the same. We may use either Potential instead of Voltage and vice-versa.   Macroplast manufactures cycloalliphatic resin cast voltage transformers up to 33 KV system voltage. Our cycloaliphatic resin cast PTs are used outdoors. They are used for Outdoor applications. The energy meter or measuring instrument is also placed within the same contraption.

Number Of Flower : High Voltage Transformers

Certification : ISO 9001:2008 Certified

Frequency : 60hz

Operating Type : Automatic, Semi Automatic

Cooling Type : Air Cooling

Power : 250-500kw, 500-750kw

Cycloalliphatic Resin Cast Current Transformer is a dry type transformer in which the internal windings and coils of the transformer are coated with cycloalliphatic resin for Insulation purpose. It is widely used in instrument transformers where the primary function is to step down high currents and voltage. In a cycloalliphatic resin cast current transformer, the windings consist of high quality electrolytic grade copper which are wound around the core and insulated using a layer of fiberglass mat or quartz powder before being cast with a cycloalliphatic resin in an automated vacuum casting machine to provide the necessary insulation. Resin is a strong synthetic thermosetting polymer which is made from various epoxide materials. Resin is widely used in various industries like adhesive industry, synthetic paints, casting industry amongst others. In the electrical industry, it is primarily used for the process of insulation. Its chemical composition offers excellent insulation properties and is therefore widely used in the transformer industry for making dry type resin cast transformers. The function of resin cast current transformers are similar to oil filled current transformers. The reasons why some businesses prefer to use it is because they are better in handling moisture, there is no leakage and pilferage of oil, and they are far more compact in size compared to oil filled transformers   Macroplast manufactures Outdoor, Dry Type, Cycloalliphatic Resin Cast Current Transformers up to 33 KV system voltage. These are manufactured using high grade resin polymers and other necessary raw materials. Our cycloaliphatic resin cast current transformers can be used for outdoor usage. We have 35 years of experience in manufacturing high quality resin cast CTs.

Number Of Flower : Current Transformers

Certification : ISO 9001:2008 Certified

Usage : Industrial Use

Operating Type : Automatic

Marshalling Box houses the indicating instruments. In addition, all the secondary wiring of the transformer from current transformers, relays, oil level gauges etc., are terminated on to terminal blocks, from which cables can be taken to the supply and control connections.

Country of Origin : India

Number Of Flower : Marshalling Kiosk

Shape : Rectangular

Country of Origin : 415v

Power Source : Electric

Phase : Three Phase

Macroplast Manufactures Potential Transformers Without Top Tank (Expansion Chamber) Upto 33kv System Voltage This Design Has A Single Tank. The Core And Windings Are Contained In The Lows Tank. The Prima, Winding Is Taken Through The Ht Insulator To Be Connected T The Prima, Terminal Arranged At The Top Of The Ht Insulator. The Secondary Windings Are Connected To Second, Terminals Placed On The Lower Tank. Primary Terminal Bushing Cap Bushing Bushing Clamp Secondary Terminal Box Main Tank (3.15mm Thk) Base Angle Name & Rating Plate Earthing Terminal Oil Filling Plug Oil Level Indicator Lifting Lug Oil Drain Plug

Total Carbohydrate : 1 Year

Frequency : 50/60Hz

Usage : Industrial

Deatils : This is mainly use for AMR Systems. Main Components are Electronic Meters, LV CT's and Bus Bars. LV SA's, MCB, MCCB's & other features or fixtures are provided as per customer's requirement. Lifting Hooks Hing Cable Clamp 11kv Current transformers(Epoxy )Cast 11kv potential transformer (3phase )Epoxy cast Mounting Channel

Material : MS Plate

Feature : Good Quality

Application : This is used for Indoor or Outdoor Installations.

Construction Feature : Secondary Wire Core And Widing Window For Primary Secondary Terminals Mounting Bracket

Usage : Metering/ Protection

Phase : 3

Total Carbohydrate : 1 Year

System Voltage : 720V maximum

Speciality : Flawless performance, Easy operation and Less wear and tear

Based in Uttar Pradesh (India), we are involved in offering reliable installation services for all types of tanks and transformers that we deal in. We are supported by a team of professionals that is capable of installing all types of products using advanced machines and tools. In addition, we work in complete coordination with the clients and install the product as per their suitability and requirement. We offer our services at the most affordable charges. Contact us to obtain our services.
