Fractionation Plant
Get Price Quote
Fractionation is the process where the crystallization of saturated triglyceride takes place in a mechanical equipment called the crystallizer. Crystallized oil is further passed through a filter where separation of solid and liquid phase takes place. Solid phase remains in the chamber. Liquid phase comes out through the taps and is collected in the storage tank. Entire process takes place in several steps which including: Oil heating, oil charging, and crystallization, filtration, squeezing and cleaning of filter.

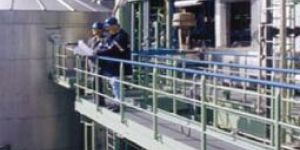

Fatty Acid Distillation Plant
Get Price Quote
Fatty Acids Distillation plant is broadly divided into three main section. vis. de-gasification, pre-cut system and main distillation system. These main process section are supported for optimum cooling based on thermostatised water system. Crude fatty acids from battery limit is filtered, pre-heated and admitted to the de-gasifying unit operating under vacuum, where it is dried and de-gasified. Crude fatty acids, from de-gasifier is heated in thermic fluid exchanger and fed to the pre-cut column. The pre-cut column operates under vacuum and is composed of various section; starting from bottom, the main sections are vaporization section, Two sections of distillation packing bed, pump-around section and scrubbing section. From bottom of the column, the product is sent to Fatty Acid Distillation column. The main distillation column operates under vacuum and is composed of various section; starting from bottom the main sections are vaporization section, stripping section, one set of washing section, one pump-around section and one scrubbing section
