Sigma Mixers Dealers in Gurugram

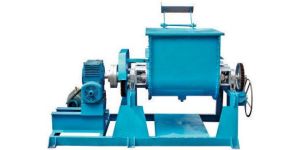

The trough of the mixer is made of stainless steel having a pair of stainless steel cast Z shaped blades for maximum efficiency of mixing and uniformity of all ingredients. The material after mixing is discharged by manually operated bottom discharge mechanism.The shaft on which the blades are mounted is supported by heavy-duty roller bearings type. TECHNICAL DATA SPECIFICATION 1 Plodder machine 6” 2 Motor (Driving) 15 HP 3 Gear box U 400 4 Capacity According to Customer 5 Electrical control pannel 6 Material used Mild steel.

MIKRONS sigma kneader is a twin basin kneading machine with two horizontally arranged kneading blades, which are deeply geared into one another and strip themselves reciprocally. The kneading blades run to a ratio 1:2 Because of their different speed, the blade sides approach and withdraw alternately. This causes high pressure tensile and shearing rates and therefore heavy friction in the kneading medium, which creates excellent dispersing and homogeneity. The shape of the kneading blades enables a steady flow of material from the side walls of the kneading trough to the middle of the kneading trough.
