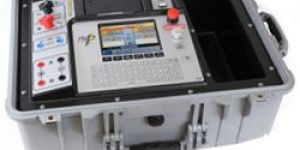

The WRT-10D™ is a high performance winding resistance tester designed for power transformers and large motor applications

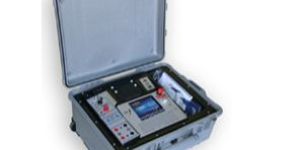

The WRT-10 is a high performance winding resistance tester designed for Power Transformer and large motor applications. Winding resistance testing is an important part of a power trans-former maintenance or a manufac-turing quality assurance program. Transformers & large motors are subject to vibrations, overloading and environments with large tem-perature variations. Winding resis-tance measurements can assure that the connections are made cor-rectly and that no opens or shorts are present. Tap changers of power transformers are a particu-larly critical element of a power system. The WRT is very effective in detecting Tap changer abnor-malities.

HV Testing Kits are used for testing of Motors, Generators, Switchgears, Cables, Transformers and other electrical equipment. These are used for testing & commissioning of HV electrical equipment.

The VCI-3™ is a cable identification and phasing system used during installation or maintenance works on de-energized three phase systems. FEATURES Unique balanced injection system that eliminates signal bleeding on other wires Three different frequencies to identify each phase Easy to install and operate Extended range: up to 10 km (6 miles) of working distance Tone transmission for more than 8 hours Lightweight and compact Optional magnetic sensing transducer Phase detection by transmitter tone presence or absence Digital filtering of network harmonics Unique dual grounded method

SATIR NV618S Dual Field Automotive Night Vision Camera: The NV618S has been designed to work in both daylight and night time environment due to the improved low light and thermal camera technology. It has primarily been designed for the automotive market but has other application in the security and military markets. The NV618S is a safety device as it has built-in analytics to alert the driver on ongoing obstructions and pedestrians, the alerts are either visual or audible depending on the user configuration and can work in most weather conditions such as poor light , fog etc. The NV618S can be easily mounted onto the vehicle and with its robust casing it can withstand harsh environments. FEATURES Wide Field of View gives the driver greater visibility Single or 4 screen Video Output Low level light system Dual Channel Design Versatile Car Camera adaptable to all environments & Vehicles Ability to see through fog, mist and rain Intelligent identification of pedestrians and cyclists

Capturing the market with our exceptional product range, we are located in Haryana(India) and cater to the wide market. To provide complete satisfaction to the customers, we offer only defect-free range of products that are tested against varied quality parameters.

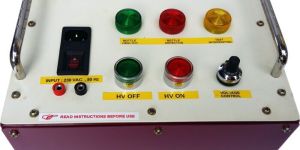

These compact testing kits are highly suitable to test integrity of VCB Bottles and Interrupters. The kits are microprocessor controlled which precisely analyses the Vacuum Bottles. These are available in standard ratings of 40KV and 60KV to test test Vacuum Bottles upto 11KV and 33KV respectively.

This Compact power supply/test set can perform all laboratory and field tests of DC Hipot. A flexible High Voltage Cable is provided at the back for connecting to the test specimen. Available in Rack Mount as well as portable design.

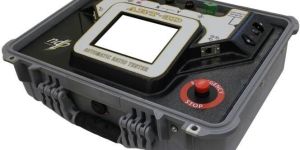

The ART-3D series of Automatic Ratio Testers are precision instruments, designed to measure the turn ratios, phase displacements, excitation currents of single phase and three phase power, distribution and instrument transformers in conformity to the IEEE C57.12.90 & IEC 60076. Now featuring an enhanced test lead design, the ART-3D is the perfect instrument for real-life field usage. ART-3D series also has Anti Induction circuit which makes it suitable for system voltages upto 765KV.

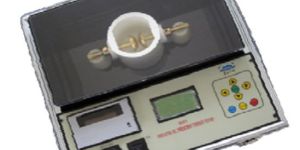

OTS series insulating oil testers are fully automatic micro controller based system, completely self-contained, compact and portable giving smooth variable test voltage from 0 to 60, 80 or 100 kV for testing the dielectric strength of insulating oil in accordance with all international standards like IEC156/IS6792/ASTM D 1816/ASTM D877/ UNE 21 specifications FEATURES Tests as per various international standards Auto mode 100 test result storage capacity LCD display Built in printer User Friendly RS 232C Interface & Software Safety protection Accurate performance

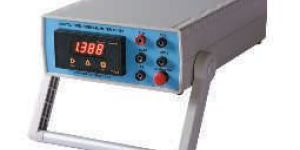

High Resolution and high Accuracy Digital Time Interval Meter for several applications & testing requirements. Several Programming Modes available to configure timer operation. Short duration memory available to retain operationtripping times.

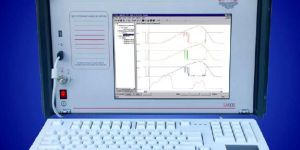

Breaker Test & Analysis software is an essential 32-bit WindowsTM database program that provides an easy to use operator interface for configuring & displaying the SA50S test results in graphical and text report formats. FEATURES Operator interface for Regular (via Wizard) or Advanced users. Results automatically computed with feature to recalculate on configuration change of any existing test record. Graphical display of captured waveforms with measurement cursors. Standard or user defined report format. Archiving of all tests and configurations. Fingerprint comparison on all channels (grey zone checking).

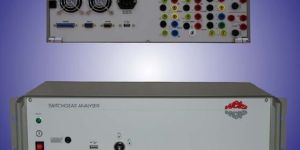

Weis is a specialist company with over 40 years of experience in the commissioning, testing & maintenance of switchgear and  power network  fault monitoring within the Power Utility Industry. Based on its successful SA100 Switchgear Analysers, Weis has developed a Reduced version without Screen (SA100Rs) with fewer channels in half the size of chassis, providing a light weight, lower cost, robust switchgear test set for performance analysis on high, medium and low voltage circuit breakers with the options. SA100Rs : Standard version. SA1OORStmvel+ 1 3 additional Travel channels. In addition, Dynamic Timing of up to 1 break per phase is made available (external battery required per phase to provide constant current source). Optional Items Cable Sets - A range of standard cable sets & special made cable sets are available on request. Transducers - A full range of transducers and universal mounting anns are available on request. Transportation Cases - Robust purpose made transportation cases are available for the complete range of products. FEATURES Robust switchgear test and analysis system for portable or factory use. Computed results with custom report format feature, reducing test time. Create a electronic library of breaker test settings and signatures. Revised configuration / recalculation on previous tests capability. Operation through network connection to pc running BTA  software or external screen, keyboard & mouse Independent control of trip and close ac or dc coils 6 analogue input for: 1 x dual range (5 / 30A) trip and close coil current, 1 x travel, 3 x user configurable 10 digital inputs for: timing of up to 4 main and 4 resistive contacts, 2 x timing contacts (24-250V DC or OV) Calculated inputs for: velocity and  acceleration from travel input SA100RS can dynamically test one break per phase (external battery source(s) required) Analogue calculations performed across all three phases against single pole motion / travel sensing

Weis is a specialist company with over 40 years of experience in the commissioning, testing & maintenance of switchgear and  power network  fault monitoring within the Power Utility Industry. Based on its successful SA100 Switchgear Analysers, Weis has developed a Reduced version without Screen (SA100Rs) with fewer channels in half the size of chassis, providing a light weight, lower cost, robust switchgear test set for performance analysis on high, medium and low voltage circuit breakers with the options. SA100R : Standard version. SA100R dynamic: Dynamic Timing of up to 1 break per phase with 3 x 20A constant current outputs. SA100R travel+ : 3 additional Travel channels. Optional Items Cable Sets - A range of standard cable sets & special made cable sets are available on request. Transducers - A full range of transducers and universal mounting anns are available on request. Transportation Cases - Robust purpose made transportation cases are available for the complete range of products. Built-in Thermal Printer - On request. FEATURES Operator interface for Regular (via Wizard) or Advanced users. Results automatically computed with feature to recalculate on configuration change of any existing test record. Graphical display of captured waveforms with measurement cursors. Standard or user defined report format. Archiving of all tests and configurations. Fingerprint comparison on all channels (grey zone checking)

TP-ER100 Evacuating and refilling device is a compact device. All the evacuating devices and refilling devices were constructed on a very rugged cart with four pneumatic tyres which travels easily over hard - surfaced floor or crushed gravel. Permanently mounted to the rugged frame are the vacuum pump, digital vacuum gauges, solenoid vacuum device, safety valves, pressure regulator, hose, and all necessary valves and gauges required for normal servicing of SF6 circuit

SATIR UMTI Entry Level Surveillance Handheld IR Camera: SATIR UMTI is an entry level camera with thermal video recording for night patrolling and security ob-servation. The product is equipped with a 384×288 uncooled detector and an interchangea-ble manually focusing lens. Its compact size makes the device easy to carry and operate. Newest feature: Pressurized eye piece. FEATURES Portable Design, easy to operate Build-in video-recording system (MP4 format) General purpose rechargeable battery (Lithium Battery) MIL-STD-810 standard encapsulation for harsh environments Still & Video Recording SD Card Storage

The Secondary Injection Test Sets are used to test static, attracted armature, induction type, thermal & directional relays & CTs etc. These are available in standard ratings from 30A to 200A. AC and DC Voltage outputs are also available as options. High resolution timer of 0.1mS and NO/NC relay interface are also provided for testing relays etc.

Secondary current injection test set All types of static, attracted armature, induction type, thermal & directional relays & CTs can be tested using our Secondary Injection Kits. Digital LED Display Time Interval Meter is integrated in the set. The time interval meter is autoranging type with Least Count of 0.1 milli second in lowest range. The Timer is fully programmable type and can be programmed for RangeResolution, Auto Reset etc.

Lightweight Uncooled Binocular Recorder: SATIR UTR50/75 is a lightweight, user-friendly binoculars that has been specifically designed for observation and recording purposes. SATIR thermal cameras has been used in a wide range of applications and it is because of this we believe we are leading the way in thermal imaging. FEATURES High Sensitivity 384x288 UFPA (with UTR75 640X480 option) Auto focusing 50mm lens Digital storage of images and video Optional 100mm lens Detachable bi-ocular Remote control with 6m extension cable

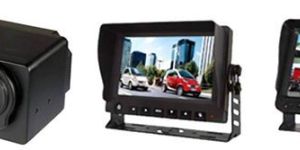

Vehicle Thermal Imager: SATIR NV618W (La Moon) allows users to see a wide angle of the road which is not possible with normal headlights. The high resolution image allows users to have a clear view of the road layout and hazards that approach the vehicle while driving. SATIR have been manufacturing high quality infrared thermal cameras for over 20 years and our aim is to have a thermal camera that will meet your thermal imaging needs and requirements. FEATURES Ability to see clearly at night Wirelessly connect between the camera and the tablet Driver assistance during poor weather conditions Unaffected by oncoming headlight glare Pedestrian detection Convenient Installation Great System Integration Additional Features—GPS, Blue-tooth, WI-FI, Android.

A compact secondary injection test set weighing just 10KGs designed for testing of protective relay equipment. This highly compact instrument is designed for use in High Voltage Sub Stations and Industrial Environments.

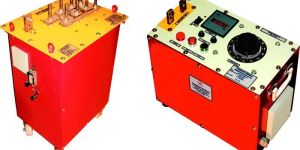

Primary Current Injection Kits are used to test and commission Circuit Breakers, Bus Bars, CTs, Relays, MCCs, PCCs etc. These are also used for high current injection and simultaneously measuring voltage drops and hot spots in bus-bar joints, circuit Breaker Contacts etc. The High Current Loading Units are also available with series parallel links arrangement to configure the coils in series– parallel configurations to meet the field test requirement.

Primary current injection kits are used to test and commission Circuit Breakers, Bus Bars, CTs, Relays, MCCs, PCCs etc. These are also used for high current injection and simultaneously measuring voltage drops and hot spots in bus-bar joints, Circuit Breaker Contacts etc. Primary Current Injection Test Sets are available in current ratings from 500A to 10000A and in short time duty as well as continuous operation duty. Controls are available in Automated as well as Manual versions. The automated controls also have features like CT ratio measurement etc. Light weight portable kits of 1000A and 2000A with full load operation time of 3 minutes also available for field testing.

Automatic Microprocessor Based Moisture Titrator (PPM Meter) Model VM-III is designed for accurate estimation of moisture in various samples.The instrument works on Coulometric Principle. Water is titrated by electrolytic generation of Karl Fischer Reagent within the reaction vessel. It is equipped with a generator which generates the Karl Fischer Reagent in the titration cell itself to react with the moisture present in the sample The main unit of the equipment consists of a built-in magnetic stirrer, necessary controls and a microprocessor based circuitry of advanced type with feather touch membrane key pad. An Error Indicator indicates the defect in vessel charge or generator solution and electrodes if any. On entering the requisite data on the key pad and pressing the START key, the instrument performs all the functions automatically and presents the final result on the digital display in terms of total moisture in the sample in Milligrams or PPM or Percentage as desired. The VM-III requires no calibration or calculations of the Titre Factor and is always ready to accept the samples.
