Paper Band Filtration System Dealers in Hubli

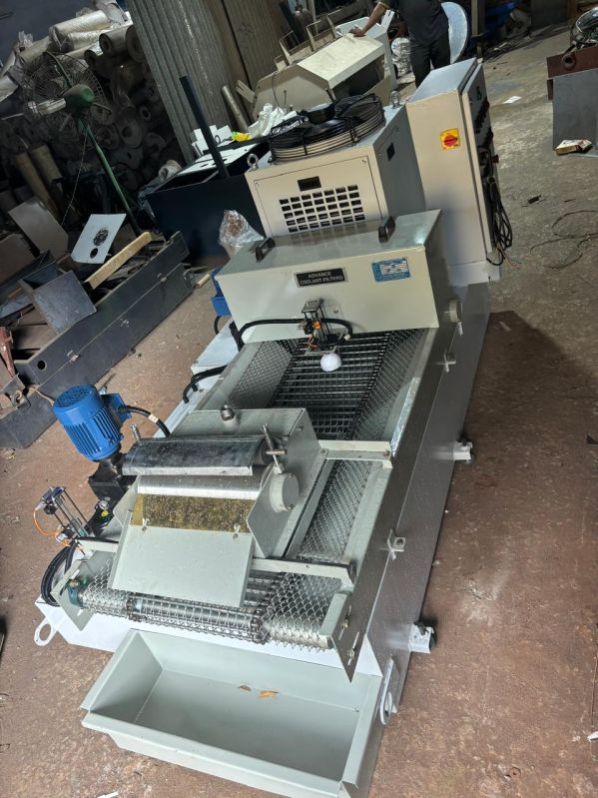

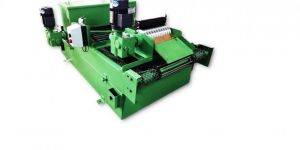

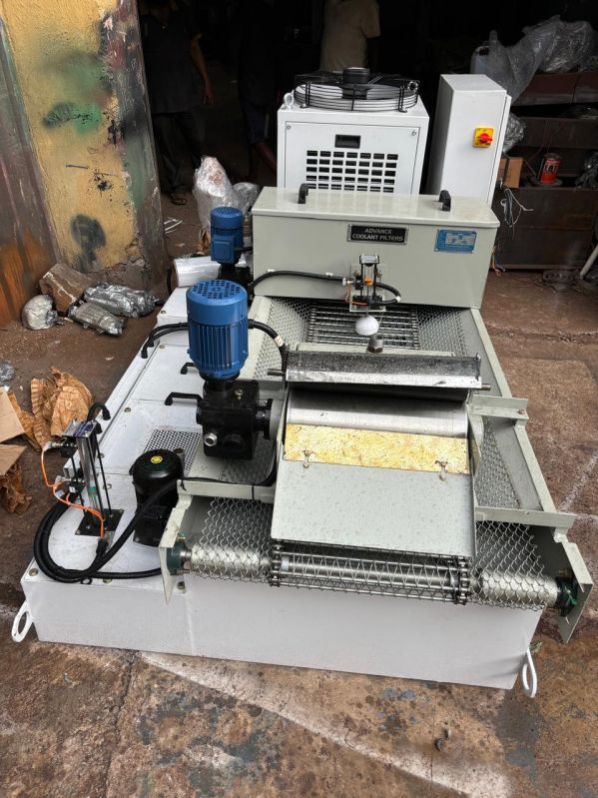

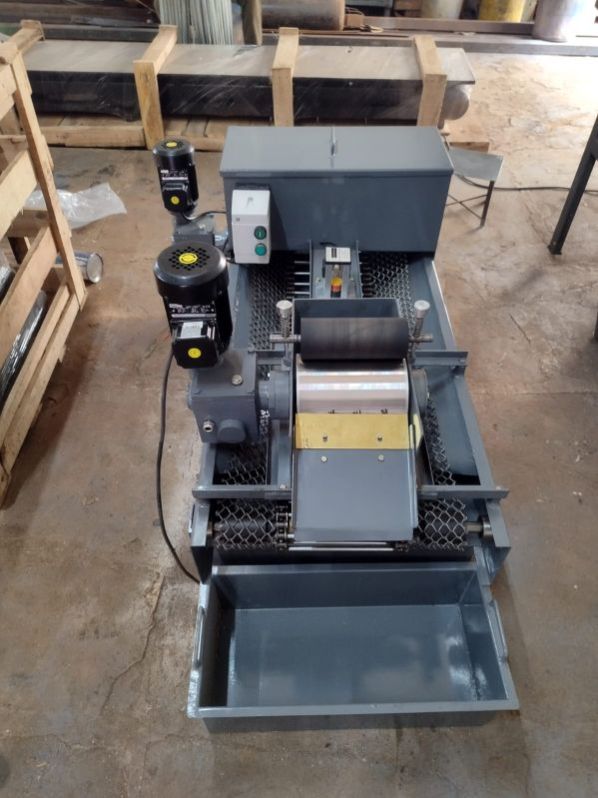

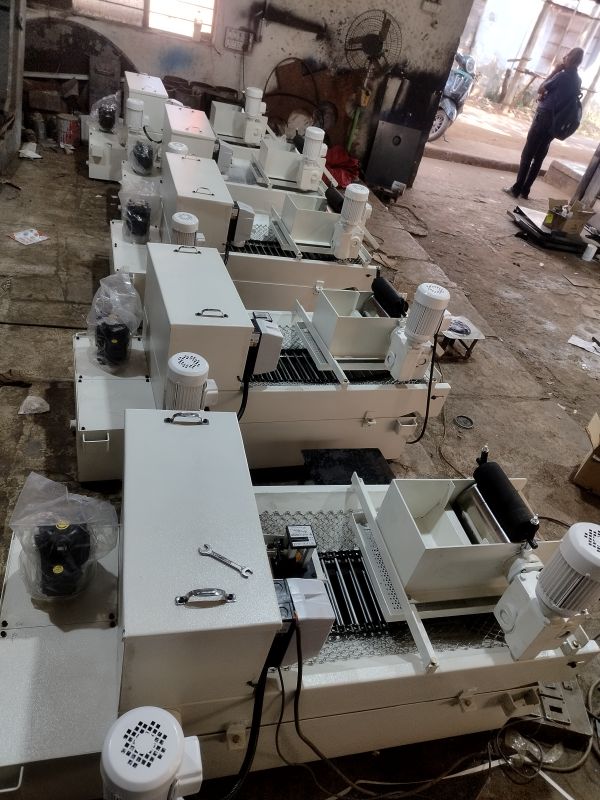

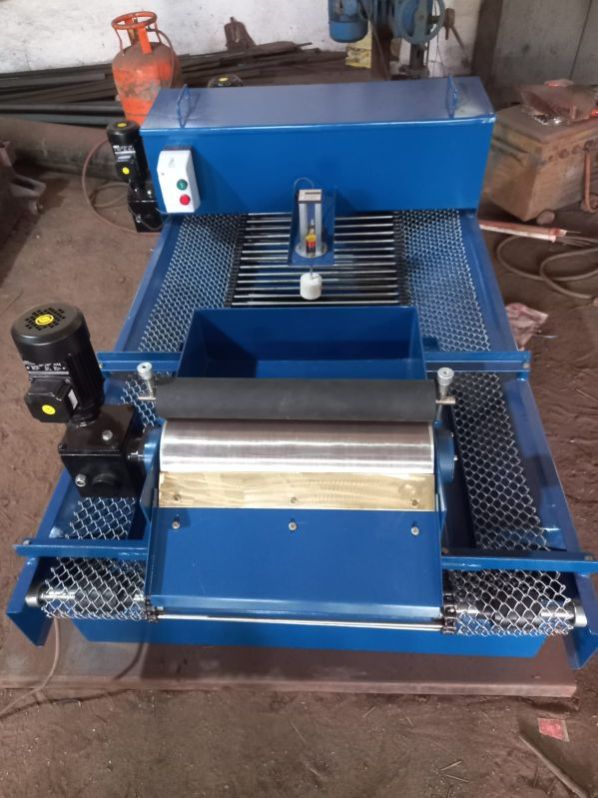

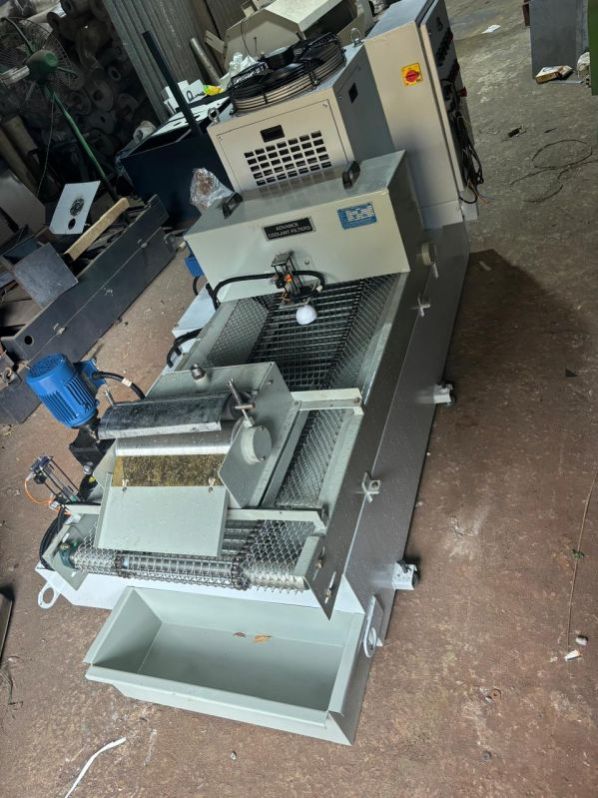

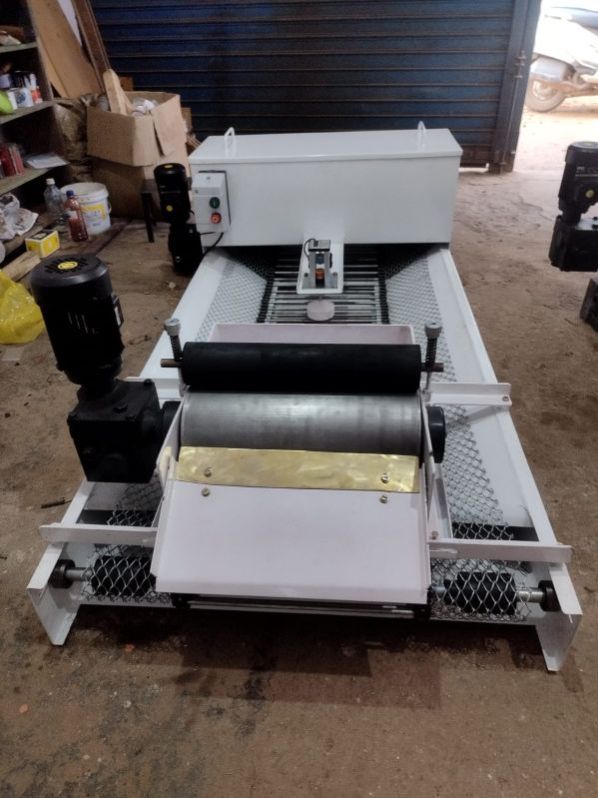

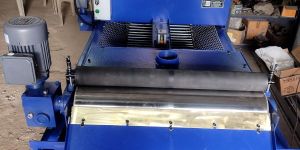

Mag Tools Paper Band Filter unit is fabricated in steel. This entire unit is fixed on a coolant tank with a pump to supply coolant to the machine. The filtering paper is spread over an endless stainless steel mesh conveyor which is connected to a geared motor. this uniquely designed conveyor prevents overflowing of the liquid and the full width of the filtering paper is used. the movement of the filter paper is controlled by a float switch which actuates the geared motor. Mag Tools paper band cum magnetic coolant Clarifier involves our standard ATP or TAP Model Magnetic Coolant Clarifier. The powerful magnetic drum driven by a heavy duty geared motor designed to run continuously. OPERATION The contaminated coolant liquid is first passed through the magnetic filter which separates almost 95% of the ferrous particles. The liquid further passes through filter which paper where all the nonferrous particles like grinding grit, stainless, brass or aluminum are filtered. As the porosity of paper gets filled up due to accumulates the liquid level rises. This triggers the float switch which starts the geared motor and fresh paper from the reel is pulled forward automatically. Now the liquid passes through the fresh paper and float switch shuts down the geared motor. If required a push button switch may also be used for manually operating the geared motor and to bring the fresh paper forward. APPLICATION Paper band cum Magnetic coolant Clarifier offer the excellent means of filtering both ferrous and nonferrous particles. Where high degree of purification id required and contaminates differ in from, size and composition. Paper band Filtering system as a rule gives best results. Paper band filters are recommended for Grinding, Honing, Transfer lines and Machining center. It also can be used for rolling mills for filtering coolant which helps to improve the surface finish to the sheets. Advantages High efficient way of filtration guarantee fine finish, dimensional accuracy, increased tool life.Keeps your machine clean & reduces costly machine down time for periodical cleaning.Avoids bacterial growth and wastage of expensive coolants.Since the complete filtration system is automatic, No manual attention is needed.Where heavy stock removal increases the temperature of the coolant. This system of filtration due to sufficient exposure to air helps to control the same.The pump capacities will be according to the capacity of filter.Filters/ min. and above will be supplied with two or more pumps.Filters more than 400 liters will also manufactured as per customers requirements.The Specification for magnetic coolant Filters will be as per our catalogue. Features Filters both ferrous and nonferrous particles.Completely automatic operation, no manual attention needed.Continues trouble free operation.Prevents wastage of Coolants.High Surface finish & Dimensional accuracy on jobs guaranteed. Dimensional specification for Paper Band Cum Magnetic and Paper Band Filters

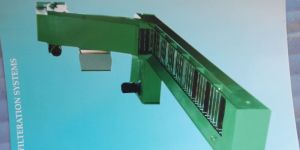

Paper Band Filtration System, Magnetic Coolant Filter, Chip Conveyor
