Nucon Pneumatics Balanagar, Hyderabad, Telangana

Features:       Large range of bore sizes - ideal for several industrial applications       Long established design - proven ruggedness and reliability       Extensive choice of mountings adjustable cushioning

Design Features:     Double Acting with Adjustable Cushioning Cylinders       Increased Cushioning Effect       Available in both Magnetic & Non-Magnetic Versions       Confirm to ISO 6431       Profile, Round & Square Barrels       Precisely Extruded, Calibrated, Hard Anodized Aluminium Barrels       High Performance, Rugged and Reliable       Stainless Steel Piston Rod       Suitable for Wide Range of Applications       Extensive Range of Mountings       End Covers are Powder Coated

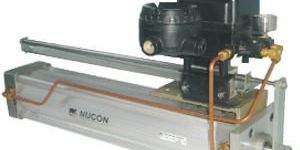

NUCON Power cylinder ZNCN/29000 series consists of a double acting cylinder, positioner (either pneumatic control / Electro pneumatic control) and suitable link mechanism.   The mountings at rod end and cap end are customized.   NUCON Power cylinder has been designed to operate as an actuator in pneumatic control system to position the actuator in accordance with the control signal.   Design Features:     Wide range of bore sizes from 32mm to 14"       Strokes up to 1500 mm.       IS0 6431 standard cylinder from 32 to 200 mm       Above 200mm with NUCON standard/customized cylinder       Wide choice of rod end and cap end mountings       Linear characteristics are standard       Special characteristics are optional       Easy reversal action       Direction of piston movement in relation to signal can be reversed by the reversing the cam and rerouting the piping       Customized versions with additional accessories are on request     Additional Features:     Manual override attachment with clutch       Air-lock valves to obtain fail safe stay put position       Volume boosters to increase stroking rate       Limit switches       Position transmitters       Gaiter for piston rod protection   Material of Construction :   Cylinder Barrel   Aluminium alloy, fine drawn, calibrated, and hard anodized up to 200 mm Carbon-steel, finish honed and hard-chrome-plated above 200mm     Piston Rod   Stainless steel AlSl 420 up to 200 mm bore Medium carbon steel grade En8 above 200mm     End covers   Aluminium die casting up to 200 mm bore Cast-iron /Zinc plated Mild steel above 200 mm bore     Link mechanism   Zinc plated carbon steel     Seals   NBR (standard ) Viton (Optional on request)             Material of Construction :   The Power cylinder is a standard pneumatic cylinder whose stroke positioning is regulated by pneumatic/electro-pneumatic feed back signal. The stroke positioning is made by altering electro pneumatic control signal value (4 mA for zero stroke and 20 mA for full stroke). In between stroke is proportional to the band width of 16mA. Similarly in Pneumatic control positioning the signal of 0.2 bar for Zero stroke and 1 bar for full stroke   The Positioner and the Link mechanism are fitted on the top of the cylinder with a rigid bracket. The link mechanism is connected to the piston rod. The feed back cam moves along with the piston rod and provides the feedback signal to the positioner to position the cylinder in line with the control signal     Accessories :   All standard mountings and accessories are available to customer's choice.

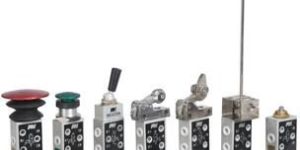

Features:       Manual, Mechanical and Air pilot operated       Normally closed and normally open types       Compact size       Panel mounting facility       May be used as 2/2 type     Manual and Mechanical forces quoted are at 6.3 bar   The ZNCN/666, ZS/666 and ZS/667 ranges are ‘normally closed’ and ‘normally open’ respectively. They are externally identical.   These valves are particularly suitable for the pilot operation of the larger control valves and their compact size enables them to be built into machines and fixtures very easily. Many of these valves can be panel mounted and can be supplied with legend plates.   These models can also be used as 2/2 valves. In this case he mains air or oil supply must be connected to the ‘inlet’ port. The exhaust port should be plugged. Manual/mechanical operating forces quoted relate to mains air supply pressure of 6.3 bar.

A complete solution for one source of Pneumatic Door operation in which you have a competent and experienced partner with proven track record working for you . Nucon's fully automatic product range is an ideal solution which can fit to your specific application.   Nucon will design and supply the complete Operating Mechanism for Pneumatic Door and prove them to your satisfaction. The current range includes Operating Mechanisms for the Inswing Door, Out swing Door, Jack Knife Door,and the complete Retractable Foot Step.   Nucon's pneumatic doors are fitted with standard passenger safety features like Manual switch in case of Emergency and Finger protection device. Optional feature like indicating lamps and blinkers etc.. are provided as per customer requirement   Nucon's products are built in state of the art manufacturing plant with ISO-9000 certification and world class technology. High quality components guarantee perfect product performance.

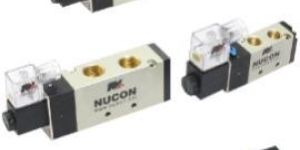

Features:       Compact Pilot and solenoid actuated       Solenoid coils can be interchanged or rotated through 90o increment       Suitable for multi-directional flow and dual supply application       Captive ‘O’ ring seals       Light weight corrosion resistant material       Gang mounting facilitate       LED indicator type plug-in-connector       Application:       3/2 Values are used for Single Acting Cylinder’s operation       5/2 & 5/3 Valves are used for Double Acting Cylinder’s operation

We are offering a wide range of Heavy Duty Hydraulic Cylinder.

End caps of polymer material   No "afflorescence" and therefore no formation and accumulation of bacteria No damage to the screw thread in the filter head Filter remains undamaged even without greasing   Larger filter area with up to 8-fold winding   Depth filtration instead of surface filtration increases the available filter areaAdvantages:: Differential Pressure increases less rapidly Greater efficiency of the element due to improved absorption   Drainage layer of needle felt   Does not swell as air or gas streams through, therefore no cracking Needle felt does not contain any silicon Can withstand temperatures up to 120 °C   Spirax stainless steel cylinders Internal and external supporting cylinders of stainless steel Up to 40% lower pressure difference due to the special form and arrangement of the open surfaces More stable than conventional perforated plates and expanded metal, therefore more reliable operation and longer duty periods Alternative filter elements are available for:Alup - Atlas Copco - Beko - Boge - Compair - Deltech - Domnick Hunter - Ecoair - Hankison - Hiross - Ingersoll Rand - Kaeser - Sullair - ultrafilter - Zander

Activated carbon cartridges CAK and Hopcalite cartridges HCK   KSI activated carbon cartridges of series CAK are highly effective oil vapour adsorption filters. They were specially designed to adsorb oil vapours and odours in compressed air and gas streams.   Designed as a filter cartridge, each element is filled with granulated activated carbon. Large-pore metal sieves in the generous apertures ensure a low pressure difference at the inlet and outlet. High-grade filter mats trap contamination at the inlet and separate out any abrasion at the outlet.   Advantages of CAK cartridges:     Longer service life than conventional elements     Better process control     Lower residual oil content     Higher dimensional accuracy     Cost-efficient solution in comparison to oil-vapour adsorbers     Can be retrofitted in all filter housings at any time

ECOCLEAN® compressed air filters meet the strictest quality requirements and are extremely economical to purchase, operate and maintain. The housing is made of cast aluminium, with a chromebased protective coating on the inside and outside and an additional powder coating on the outside.   Features:   Optimized flow, due to the curved compressed air inlet Prevention of corrosion and bacteria formation The filter element is fastened securely by tie-rod Filter element with stainless steel cylinder for high strength The filter medium is wound up to 8 times, ensuring long life and lowdifferential pressure The dimensionally stable drainage layer made of needled felt prevents any deterioration in filter performance Fitted with automatic condensate drain as standard Easy to service and maintain, with hexagon nut flats on housing
