SVS Embedded Boduppal, Hyderabad, Telangana

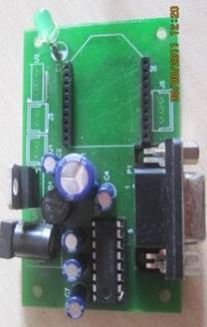

his is the base board which is used to connect the ZigBee to PC directly. This is having on board 5v and 3.3 v of regulated voltage. Input to this board at DC socket is in between 7.5 and 9v of AC or DC only. This is a simple to use, RS232 to base unit made by SVSEMBEDDED for the XBee, TARANG, CC2500 products. ZigBee Base Board - RS232 Features: Compatible with all Tarang,CC2500and XBee modules Built in 3V3 Voltage regulator Onboard 3V3 & 5V level converter Status LED XBee Pins available at 2.54mm berg strip

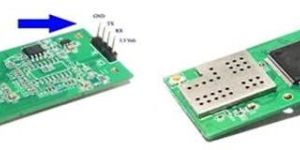

We are one of the leading suppliers and traders of UART To Wi Fi Module. Our range of product-line is a complete ultra low power embedded TCPIP solution. These are manufactured using high-grade raw materials and are procured from trusted vendors and are provided after in-depth research regarding the market trends and clients demands. Following are the main functions of the product-line offered by our organization: Support for UART data serial, four baud rate options: 19200 38400 57600 115200bps. Wireless data rates support the 802.11b Standard, the maximum rate is 11Mbps. Integrate the functions of 802.11 MAC protocol Softwares. Support for the STA appliances in the Infrastructure Network. Support for the OpenWEP mode authentication. Support for the wep64wep128ccmpwpi data encryption transmission in the shared key mode Support for the automatic networking mode and manual networking mode. In the automatic networking modethe module can automatically scan the target network, and automatically connect when disconnection. In the manual networking modeoperation of connect and disconnect is touched off by orderthis supports a flexible control space. Support the network data transmission in RAWUDPTCP format. Support seven groups of the basic parameters set,and can connect to seven target networks the most. Support to Con fig. the parameters through user serial. Support to upgrade the fire-ware on line by the Internet.

Description: Average power dissipation 0.5w Current rating 4a TRIAC type sensitive gate Voltage rated 600v IGT 25ma This simple triac dimmer can be used to control incandescent filament lamps up to 200W. The circuit operates on the phase-control principle. This light dimmer is directly connected to mains. So be careful. TRIAC:TRIAC (BT136) Integrated Circuit:IC1 MOC3021 (OPTO-COUPLER) Miscellaneous;220v bulb as load,PCB or Breadboard,Flexible Wire,Soldering rod etc..

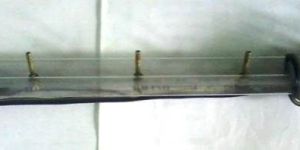

The sensor measures the dielectric constant of the soil in order to find its volumetric water content (VWC). It obtains volumetric water content by measuring the dielectric constant of the media through the utilization of capacitancefrequency domain technology. Since the dielectric constant of water is much higher than that of air or soil minerals, the dielectric constant of the soil is a sensitive measure of volumetric water content. The sensor has a low power requirement and very high resolution. This gives the ability to make many measurements (i.e. hourly) over a long period of time with minimal battery usage. In addition, the sensors incorporate a high frequency oscillation, which allows the sensor to accurately measure soil moisture in any soil with minimal salinity and textural effects. An on-board voltage regulator allows factory calibrations to be used with any excitation voltage above 3V. Applications: Irrigation scheduling Vadose zone monitoring Plant-soil-water interaction studies

THIS BOARD INCLUDES LM324 BASED 1.LM35,MQ2,GAS,FIRE,LDR.ALL OP ARE DIRECTLY IN THE FORM OF DIGITAL WE CAN DIRECTLY GIVE TO THE UC.

We have ROBOT BASES FOR ENGINEERING STUDENT PURPOSE WE WILL DESIGN THE ROBOT BASES AS PER REQUIREMENT

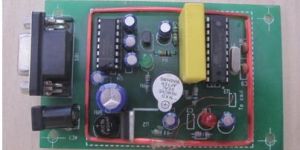

This is a low frequency (125 KHz) RFID Reader with Serial Output with at range of 8-12cm. It is a compact unit with built in antenna and can be directly connected to the PC using RS232 protocol. This product is a kind of play and plug device with a reading range of 8 to 10 cm and can be availed in the following specifications. RFID READER SPECIFICATIONS : Power Requirement:7.5 - 9 Volts @ 500mA(adapter) Voltage: 5 vdc Current:

This RF transmitter with 4 switches and RF receiver contains connector to connect any of the devices which can be controlled wirelessly. Features Transmitter operating range up to 50 meters with LED indication On Board 5V Operated Transmitter Receiver Indicates output status by LED Receiver operates from 12V AC or DC power supply Transmitter This is RF transmitter operating at 433 MHz frequency. It contains four switches. When a switch is pressed, it transmits encoded signal to remote control receiver which decodes the signal and controls any device. Features 433 MHz operation Frequency Onboard Antenna Active Data Transmission Indication LED Range 100 Meters

Introduction: if you intend to use the touch panel you should first consider these 2 items: 128x64 glcd with soldered connector touchpanel overlay for 128x64 glcd very high quality 128x64 yellow-black graphical lcd display with factory-mounted4-wire touchscreen.only 5v is required to power this jhd128x64 compatible lcd. Negative voltage supply (vee) for the lcd screen drive and contrast is built into lcd module. You can create your own touch panel control code using any compiler and microcontroller that has at least 4 adc inputs, as shown in the photos above. Compatible 4 x 1mm pitch fpc connectors are inexpensive and available from all the major electronic supply houses.

Digital output on detecting obstacle in narrow view angle. Features Modulated IR transmitter Ambient light protected IR receiver 3 pin easy interface connectors Up to 6cm range for white object Applications Proximity Sensor Obstacle Detector Sensor Line Follower Sensor Wall Follower Sensor ACCIDENT ALERT

1. On-board MMA7361 (replace MMA7260) low cost micro capacitive accelerometer; 2. Support 5 V 3.3 V voltage input, on-board RT9161, more than 1117 of the low pressure drop, faster load, very suitable for high speed corresponding noise power environment; 3. Range through the single-chip microcomputer IO choice, also can choose resistance; 4. Commonly used pins have drawn into standard needle, for 100 (2.54 mm), mil-convenient for bitmap board; 5. Dormancy can make by single chip IO control; 6. PCB board double-sided gold-plated, size: 27.9 (mm) x16.8 (mm) 7. After purchase principle chart, test program attached and related material can be supply. Package Included: 1 x MMA7361 Accelerometer tilt Sensor Module

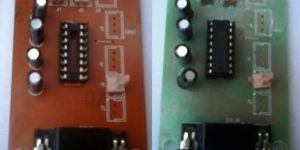

This board converts 5V level UART TTL signals from microcontrollers to RS232 signal levels of +12V-12V required for connection to standard serial port of PC or RS232 devices.

ARM7 Development Board is a powerful platform which comes with a micro controller on-chip memory. These boards are ideal for developing embedded applications like high speed wireless communication, real time data monitoring and control, interactive control panels and USB based data logging. Manufactured from double sided PTC and PCB material, these boards provide extra strength to the connector joints for increased reliability. ARM Seven Development Board can support the operating supply voltage ranging from 9V to 15V and comes with a built-in reverse polarity protection. ARM7 LPC2148 development board and also projects support board. Microcontroller: LPC2148 with 512K on chip memory Crystal for LPC2148: 12Mhz Crystal for RTC: 32.768KHz 40 pin Berg header for external interfacing Operating Supply: 9V to 15V DCAC 2.4GHz ZigBee (XBee) wireless module adaptor 512 bytes of I2C external EEPROM USB Type B Connector 2x16 Character Alphanumeric LCD L293D 600mA Dual DC motor Driver

Renesola retrofit LED bulbs with high luminous efficacy & unique cooling technology for better heat dissipation. Environment friendly, High Power Factor and High CRI. BIS Certified (R-41017973)

Digital output on detecting obstacle in narrow view angle. Features Modulated IR transmitter Ambient light protected IR receiver 3 pin easy interface connectors Up to 6cm range for white object Applications Proximity Sensor Obstacle Detector Sensor Line Follower Sensor Wall Follower Sensor ACCIDENT ALERT

Power : 0-5W

Automation Grade : Manual

Voltage : 0-15VDC

Frequency : 60Hz

Warranty : 1yrs

Country of Origin : India

Type : Digital Sensor

Material : Plastic

Packaging : Box

Application : Proximity Sensor,Obstacle Detector Sensor,Line Follower Sensor,Wall Follower Sensor,ACCIDENT ALERT

IR INTRUDER CKT: Infrared LED & Phototransistor Pair 5mm Pair of Infrared LED and Photo diode tuned to IR wavelength IR Transmitter & Receiver Pair Use this 5 mm ir transmitter and receiver pair to build object sensors, color sensors, line sensors, distance sensors, etc. Both the transmitter and receiver are built to work on the 940 nm wavelength. Note: the transparent led is transmitter while the dark blue one is the receiver. transistor

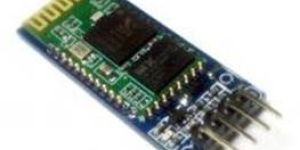

This is a bluetooth module for use with any microcontroller. it uses the uart protocol to make it easy to send and receive data wirelessly. the hc-06 module is a slave only device. this means that it can connect to most phones and computers with bluetooth but it cannot connect to other slave only devices such as keyboards and other hc-06 modules. to connect with other slave devices a master module would be necessary such as the hc-05 version which can do both master and slave. Features: a breakout board for easier connectivity designed for 3.3v level ttl but will accept 5v level as well built in antenna with a range of up to 30 feet (range is dependent on a lot of things such as any obstacles or walls in the way so it may vary) supports baud rates from 1200 to 1382400 bps (default is 9600 bps) vcc input voltage 3.3v to 6v bluetooth specification v2.0+edr

We have with us excellent quality GSM Modem Sim300 which comprises of a on board SMA connector with 3db antenna. This product is specifically fabricated by the professionals as per the strict industrial guidelines. Owing to their reliable performance and longer usage life, our product is highly reckon in the market. Specifications of these GSM Modem Sim300 are as follows : On board ACDC with 12 VDC - extracted pin out Network led - visual indication for GSM On board antenna SMA connector with 3 db antenna

RASTA-634R is a highly integrated smart GPS module with a ceramic GPS patch antenna. The antenna is connected to the module via an LNA. The module is with 51 channel acquisition engine and 14 channel track engine, which be capable of receiving signals from up to 65 GPS satellites and transferring them into the precise position and timing information that can be read over either UART port or RS232 serial port. Small size and high-end GPS functionality are at low power consumption, Both of the LVTTL-level and RS232 signal interface are provided on the interface connector, supply voltage of 3.6V~6.0V is supported. The smart GPS antenna module is available as an off-the-shelf component, 100% tested. The smart GPS antenna module can be offered for OEM applications with the versatile adaptation in form and connection. Additionally, the antenna can be tuned to the final systems’ circumstances. 65 CHANNEL GPS MODULE WITH CONNORECT This is the gps module which we can directly connect to any microcontroller’s serial communication pins. in the above 6 wires 1,2 are gnd and vcc (5v)and the last wire yellow colored one we can connect to microcontrollerprocessor’s Rx pin (EX:10th pin in 8051)

INTRODUCTION: If you intend to use the touch panel you should first consider these 2 items: 128x64 GLCD with Soldered Connector TOUCHPANEL OVERLAY For 128x64 GLCD Very High Quality 128x64 yellow-black Graphical LCD Display with factory-mounted4-Wire Touchscreen.Only 5V is required to power this JHD128X64 compatible LCD. Negative voltage supply (Vee) for the LCD screen drive and contrast is built into LCD module. You can create your own touch panel control code using any compiler and microcontroller that has at least 4 ADC inputs, as shown in the Photos above. Compatible 4 x 1mm pitch FPC connectors are inexpensive and available from all the major electronic supply houses.

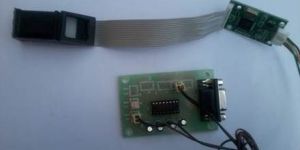

The fingerprint sensor can read different fingerprints and store in its own flash memory. The sensor can perform three functions namely Add(Enroll) , Empty Database or Search Database and return the ID of stored fingerprint. Any of three functions can be called simply by making the pin low of the sensor or pressing onboard three switches. The response is either error or ok which is indicated by onboard LED. The response is also returned as single serial data byte. The return byte is a valid ID or error code. The response byte is a single byte at 9600 bps thus making whole sensor very easy to use. We have provided indicating LEDs and function switch already so it’s ready to use when you receive it. Just give power and start using the sensor using onboard switches. Then you can move on making external application using these functions. And also we will provide the sample source code For interfacing.Schematics and Application examples in KEIL provided in the documentation CD 0P-69 FINGER PRINT SENSOR DB9 Serial Cable SFGDemoV2.0-SOFTWARE ALL WE ARE PROVING ON CD

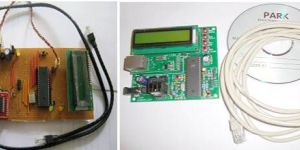

his board is an embedded AVR Web server. It is based on ATMEGA32 and ENC28J60 chipset. It can serve webpage as well as can be controlled from a PC Application. It has onboard temperature sensor, ADC Preset and two LEDs to quick start using the board. We provide full microcontroller Source code, PC application source code and board schematic for further development based on Ethernet. The AVR Web server is based on ATmega32 and ENC28J60 Ethernet interface controller. With some source code modification this product can be used as data logger. We offer following in package AVR Web server based on ATMEGA32 + ENC28J60 Ethernet Cable CDROM containing Full AVR Source Code + HEX Full PC Application Source Code + EXE App Board Schematic IC Datasheets WinAVR AVR Studio to recompile AVR Source Code

The ENC28J60 Ethernet Module utilizes the new Microchip ENC28J60 Stand-Alone Ethernet Controller IC featuring a host of features to handle most of the network protocol requirements. The board connects directly to most microcontrollers with a standard SPI interface with a transfer speed of up to 20MHz. This Ethernet Module is simplest way to add LAN connectivity to your microcontroller board Use this module to enable Ethernet interface for your projectproduct. It works with any microcontroller operating at 3.3V or 5V. This module works at 3.3V and is compatible with 5V interface lines. Use SPI process to interface with it. Host web server, ping the module or add it to home automation via internet. Heart of this module is ENC28J60 Ethernet controller from Microchip. Use of RJ45 with Integrated magnetic has made it possible to reduce the size of board. ENC28J60 Ethernet chips, SOP28 package SPI Interface 1x10 connector, can be easily mounted with the MCU Built-in isolation transformer RJ45 connectors HR911102A Power LED Single Supply: +3.3 V 25Mhz Crystal PCB size: 55x36 mm
