Geared Lathe Machine Dealers in Indore (2 products available)

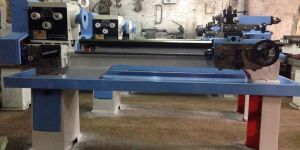

We are offering all geared lathe machines. Technical specification esskay- 1 esskay- 2 esskay- 3 esskay- 4 esskay- 5 height of centers 170 175 180 215 240 swing over bed 340 350 360 430 480 swing over slide 180 190 200 270 275 width of bed 240 242 242 280 325 spindle bore 40 40 40 50 50 spindle nose loo-type loo-type loo-type loo-type loo-type spindle speed no. 8 8 18 h-l 8 18 h-l rpm 60-1025 60-1025 30-1550 60-1025 30-1550 cross slide travel 175 180 185 220 260 top slide travel 125 125 125 130 150

• Color: Sky Blue
• Driven Type: Electric
• Country of Origin: India
• Type: Light Duty Lathe Machine
• Certification: ISO 9001:2008
• Condition: New
• Application: Cutting

MAIN SPINDLE DIMENSIONS STANDARD 38 MM     LENGTH OF BED : 1370 MM(4.5')  FLOOR SPACE : 1500 X 850 APROX CASE DIEMSION (MM) : 1700 X 900 X1350   ELECTRICALS: MOTOR 1 H.P /0.75 KW, 3 PHASE , 50HZ, 440V, 1440 RPM, WITH REVERSE –FORWARD SWITCH, V-BELT, ELECTRICAL WIRINGS AND FITTINGS STANDARD ACCESSORIES: FLAME HARDENED BED WAYS, CHUCK PLATE, DEAD CENTRE (2 NOS), TOOL POST KEY, SPINDLE SLEEV, MOTOR PULLY, THREAD DIAL INDICATOR, CHIP TRAY, CHANGE GEAR SET (FOR METRIC AND INCH BOTH) OPTIONAL ACCESSORIES: FACE PLATE, CARRIER PLATE, STEADY REST, FOLLOW REST, TAPER TURNING ATTACHMENT, MOTORISED COOLANT PUMP WITH TANK FITTINGS, REAR TOOL POST WITH EXTENDED CROSS SLIDE, NORTON GEAR BOX AND ELECTRICALS ( PANEL, PUSH BUTTON, WIRING, SWITCH, MOTOR, V-BELT AND FITTINGS), Electrical switch shaft and splash guard
