We Offers a wide range of PUF Supports. The normal density of PUF support ranges from 80kg/m to 350kg/m but higher density PUF supports can be made available against specific customer requirements. Sailent Features Durable Available in varied density and dimensions as per customer requirement Pre-fabricated and ready to use. Sawing and shaping not required. Water resistance no wet or dry rot. Fire retardant, hence safer. Construction Friendly.

Rigid PU Foam pipe cored pipe sections Manufactured and are available in varied size and density. Being CFC free polyurethane Foam, it is "Environment Friendly" and have excellent dimensional and thermal insulation properties together with compressive strrngth. PIR has low smoke emission and will not melt or dip in a fire. PIR being Polyisocyanurate foam has a higher hot surface performance upto 150℃ compared to 110℃ of normal Polyurethane foam.   Features Tailor made and construction friendly Low Thermal Conductivity Available in varied densities and thickness Light Weight Fire Resistance Low Maintenance Cost Efficient

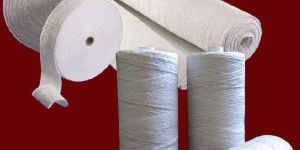

Ceramic Fiber Textiles include the finished products of Ceramic Fiber Yarn, Ceramic Fiber Tape, Ceramic Fiber Cloth, etc. ShreeCera Ceramic Fiber Textile is specially processed with ceramic fiber spun bulk, alkali-free glass filament, and high temperature resistant stainless alloy wires. Besides the above products, we can also make high temperature resistant textile according to the customers' demands for specific operating temperature, conditions, and performance. ShreeCera Ceramic Fibre Textiles can be used upto 1250°C but when tensile strength is important, the temperature limits of the inserted material is to be considered.ShreeCera Ceramic Textile Products can be made available with minimum or no organic carrier. The main advantage of this product is exceptionally low smoke-off upon heating compared with standard fiber textiles. Consequently, these products are very much suited to fire protection applications and for hot wrapping of cables, pipes and ducts. These products are available only with SS wire re-inforcement     Features Low thermal conductivity Low heat storage Reduces fume emission around refractory Excellent thermal shock resistance Resistance to gas velocity Easy to install Adheres to most ceramic and metallic surfaces Excellent corrosion resistance Inert to most chemicals Impermeable to molten aluminum, zinc, copper & lead Asbestos free   Typical Applications Cloth and Tape Gasket and wrapping material Cable and wire insulation Welding curtains and blanket Furnace curtains & heat zone separators Fuel line insulation Expansion joints Welding blankets Personnel and equipment protection Fire protection systems   Typical Applications (Rope) High temperature seals and packing in furnaces and heaters Cord Door seals for stoves and ovens Thermally insulating pipe wrap Braids Kiln car seals Furnace door seals Jointing High temperaturedoor seals Mould seals

Ceramic Textile Products can be made available with minimum or no organic carrier. The main advantage of this product is exceptionally low smoke-off upon heating compared with standard fiber textiles. Consequently, these products are very much suited to fire protection applications and for hot wrapping of cables, pipes and ducts. These products are available only with SS wire re-inforcement.

Twisted Rope is a three-ply rope manufactured from ShreeCera long fiber yarn reinforced with fiber glass / SS wire It contains 15 – 20% organic carrier fiber to facilities the carding process which may burn off at a lower temperature. It is a dense resilient high temperature refractory, possessing excellent thermal properties, chemical stability and high mechanical strength. ShreeCera Braided Ropes ShreeCera SS Braided Rope are made from ceramic fiber enclosed in SS wire braid to give excellent handling strength. It is available with SS 304 / SS 310 Braiding. ShreeCera Fiber Glass Braided Rope is made from ShreeCera long fiber yarn reinforced with fiber glass. ShreeCera Yarn Braided Ropes are manufactured from superior quality ShreeCera Ceramic long fiber yarn and braided cover to form a solid packing. It is available in round and square shape dia ranging from 6 mm to 25 mm. Higher dia rope can be made on specific requests.   Application Furnace & Boilers door insulation Expansion joints Cable or Pipe wrapping High temperature seals or Gaskets High temperature Gasketing & Packing in Foundries, Refineries, Power plants and Steel plants

Twisted Rope is a three-ply rope manufactured froma long fiber yarn reinforced with fiber glass SS wire It contains 15 – 20% organic carrier fiber to facilities the carding process which may burn off at a lower temperature. It is a dense resilient high temperature refractory, possessing excellent thermal properties, chemical stability and high mechanical strength. SS Braided Rope are made from ceramic fiber enclosed in SS wire braid to give excellent handling strength. It is available with SS 304 SS 310 Braiding. Fiber Glass Braided Rope is made from a long fiber yarn reinforced with fiber glass. Yarn Braided Ropes are manufactured from superior quality a Ceramic long fiber yarn and braided cover to form a solid packing. It is available in round and square shape dia ranging from 6 mm to 25 mm. Higher dia rope can be made on specific requests.

Ceramic fiber paper consists primarily of high purity alumino-silicate fiber and is made through a fiber washing process. This process controls the unwanted content to a very minimal level within the paper. KT ceramic fiber paper features light weight, structure uniformity and low thermal conductivity, which serve as a perfect solution for high temperature insulation, chemical corrosion resistance, and thermal shock resistance. Ceramic fiber paper can be used in various types of refractory and sealing applications and is available with a variety of thicknesses and temperature ratings.   Features Superior insulating properties Contains no asbestos Contains minimal bonding agent White color, easy to cut, wrap or form a shape Excellent temperature stability Low thermal conductivity Low heat storage Excellent resilience Lightweight Excellent thermal shock resistance Good dielectric strength High tensile strength Good Fire resistance Application Asbestos paper replacement Investment cast mold wrap insulation One-time consumable insulating applications Back-up lining Hot top lining Applications where low binder content is required Thermal and electrical insulation

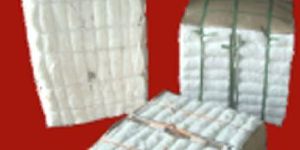

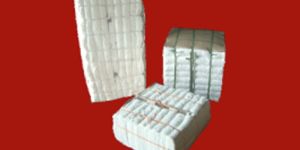

In the layered construction (Blanket, Board and Moist pack) the anchors are exposed to hot face temperature and are limiting factors for use of Ceramic fiber in high temperature applications. To overcome this limitation, modules are used.   Module anchoring systems can provide an option of backup blanket lining with hot face modular lining. A backup blanket lining serves as safety lining in all unlikely event of module failure. It also makes it convenient to provide vapour barrier for protection against attack of sulphurous gases on the furnace shell.   ShreeCera Modules are compressed ShreeCera Blanket Folds with specially designed internal anchoring system which gives choice of attaching the module to the shell by welding, bolting or self-tapping screw method.   Features Good thermal shock resistance Low heat storage capacity Rapid and easy for installation Durable service and lifespan Lightweight     Application   Ceramic fiber module for ceramic industry Low mass kiln cars Continuous and batch kilns Door linings Glazing, porcelain furnace linings   Ceramic fiber module for steel industry Ladle pre-heaters and covers Heat treat furnace Soaking pit covers and seals Heaters and reformer lining   Ceramic fiber module for power generation Duct lining Heat recovery Steam system Boiler insulation Stack Lining   Ceramic fiber module for other applications Incineration equipment Burner blocks Induction furnace covers Glass tempering furnace

In the layered construction (Blanket, Board and Moist pack) the anchors are exposed to hot face temperature and are limiting factors for use of Ceramic fiber in high temperature applications. To overcome this limitation, modules are used. Module anchoring systems can provide an option of backup blanket lining with hot face modular lining. A backup blanket lining serves as safety lining in all unlikely event of module failure. It also makes it convenient to provide vapour barrier for protection against attack of sulphurous gases on the furnace shell. ShreeCera Modules are compressed ShreeCera Blanket Folds with specially designed internal anchoring system which gives choice of attaching the module to the shell by welding, bolting or self-tapping screw method.

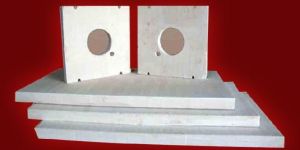

Vacuum formed Ceramic Boards and Shapes are rigid products made from Ceramic Fiber which is mixed with organic and inorganic binders with or without mineral fillers. The key feature of this product is that it contains no asbestos element and high strength due to long resilient filament structure and binder system. This gives it very high insulating value, makes it resilient and chemical resistant. Shapes By vacuum forming, a wide range of shapes, sizes and forms such as cones, sleeves, floats, observation door tiles etc. can be produced as per customer requirements.   Excellent Features High temperature stability Excellent thermal shock resistance Excellent strength, hardness Exceptional machinability for precise dimensional control Low thermal conductivity Low heat storage Resistant to hot gas erosion Resists most chemical attacks Easy to cut, handle and install Low sound transmission Light weight Resists penetration by molten aluminum and other non-ferrous metals Asbestos free Typical Application Refractory lining for industrial furnaces for walls, roofs, doors, stacks etc. Combustion chamber liners, boilers and heaters Back-up insulation for brick and monolithic refractories Transfer of molten aluminum and other non-ferrous metals Expansion joint boards Barrier against flame or heat Hot face layer for high velocity or abrasive furnace atmosphere

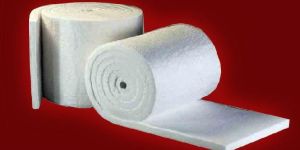

Blanket is a light weight needled blanket, provides effective solution to a wide range of thermal insulation applications. Manufactured using state of the art spinning and double needling technique, these blankets offer low thermal conductivity and superior insulation performance. ShreeCera Blanket is made from high purity Alumina, Silica and Zirconia. It is highly efficient insulator with extremely low shrinkage characteristics. ShreeCera Blanket is unaffected by most chemical reactions (except hydrofluoric & phosphoric Acids and Concentrated alkalis). It is completely inorganic and hence no fumes during initial heating or later heat-ups. In case of wetting by steam, water or other liquids, retains its thermal and physical properties after drying. It is recommended for dry wrapping of structural steel and variety of other passive fire protection applications. It is available at variety of density and thickness combinations.   Application High temperature duct, pipe insulation Turbine Insulation Expansion joints & tube seals Heat treatment furnaces, soaking pit cover sealing Ovens and stack linings Exhaust duct and Air pre-heater insulation Boiler Insulation Fire retardant   Features Low thermal conductivity Excellent thermal shock resistance Low heat storage capacity Excellent chemical corrosion-resistant performance without being influenced by oil and water Excellent construction and tensile strength Smoke Free, great white color and flat even surface, easy to cut Very low shrinkage.

Ceramic Fiber Blanket is a needled blanket made from our ceramic Fiber, The blanket is Lightweight, Flexible and available in a wide variety of thicknesses, widths and densities. This material is lightweight and has very low thermal conductivity, excellent handling strength, low heat storage, thermal shock resistance and corrosion resistance (commonly used acid and alkali). It also provides excellent sound absorption and excellent fire protection.

Ceramic Fiber material area unit made of alumina-silica ceramic fiber, freed from asbestos. These Ceramic Fiber textile materials like ceramic fiber artifact are often completely different completely different industrial applications beneath temperatures up to 1260`C and have glorious chemical stability and powerful resistance to thermal shock and corrosion attack. Exceptions area unit hydrofluoric and chemical element acids and targeted alkalis. Ceramic fiber material additionally resist oxidization and reduction. Asbestos Centre makers Ceramic Fiber Rope, braids, fabric tapes, and sleeving, Ceramic fibre textile merchandise area unit made of alumina-silica ceramic fibre, freed from asbestos. These non asbestos textile materials such as ceramic fibre rope will be employed in completely different industrial applications below temperatures up to 2300 °F (1260 °C) and have glorious chemical stability and powerful resistance to thermal shock and corrosion attack. Exceptions area unit hydrofluoric and chemical element acids and targeted alkalis. Ceramic fibre rope additionally resist chemical reaction and reduction. If wet by water or steam, thermal properties area unit fully restored upon drying. No water of association is gift. Ceramic fibre rope contain 15% organic carriers, that helps to ascertain physical formation of product. The carriers blow out at regarding 750 °F (400 °C).

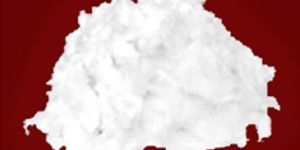

Wool is a light weight thermal insulation material produced by spun process from a high purity alumina-silica composition having long and high refractory properties and resistant to most chemical attack.   Application Expansion joint packing Wet process feedstock Filtration media Kiln car infill Moldables/Mastics feedstock Ladle insulation Features Light Weight Low Thermal Conductivity Low heat storage Thermal shock resistant Good Sound Absorption Very Low Curing and dry out time Easy for installation Excellent chemical stability Free of asbestos High temperature resiliency
