Shree Ceramic Fibers Pvt. Ltd. Siyaganj, Indore, Madhya Pradesh

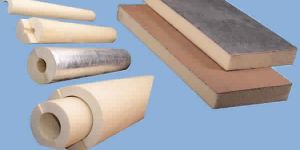

PUF / PIR PIPE SECTION & BOARDS “ShreeFoam” Rigid PU foam cored pipe sections manufactured and are available in varied sizes and density. Being CFC free polyurethane Foam, it is "Environment Friendly" and have excellent dimensional and thermal insulation properties together with compressive strength   “ShreeFoam” PIR has low smoke emission and will not melt or dip in a fire. PIR being Polyisocyanurate foam, has a higher hot surface performance upto 150°C compared to 110°C of normal Polyurethane foam.     After successfully manufacturing and marketing Ceramic Fiber Products, high "ShreeCera" temperature insulation material, have now entered into production arena of a "ShreeFoam" low temperature industrial insulation material making available insulation material required for high temperature and low temperature insulation under one roof. PUF/PIR INSULATION PRODUCTS   Polyurethane (PUF) foam has outstanding insulation properties to maintain temperature in 0cold / hot environments. PUF Materials are suitable for temperature range between -180 C to +110°C.   Polyisocyanurate (PIR) foam slabs and pipe sections are suitable for use between -200°C to +150°C. It has low thermal conductivity value of maximum 0.021 w/mk at 10°C. It is not easily ignitable and has negligible water permeability and is most suited insulation material for cold/chilled pipelines & equipments. PIR is the recommended insulation material for LNG pipe insulation.   Key Features :   Easy to install   Light Weight   Low maintenance   Water proof   Excellent thermal insulation properties   CFC Free Features :   Tailor made and construction friendly   Low Thermal Conductivity   Available in varied densities and thickness   Light Weight   Fire Resistant   Water Resistant   Low Maintenance   Cost Efficient

ShreeCera Heat Guard : In addition to employing a range of insulation materials Shree Ceramic Fibers provide tailor made heat protective insulation system suitable for sophisticated equipments that require frequent maintenance. Depending upon specific application our engineers can develop and implement a high performance solution that meets your requirements. This is done by taking the unique properties of ceramics to produce heat guards that is highly adept in extreme environments, retaining characteristics of light weight and robustness. Needled ceramic fiber is the common insulation material used in our Heat Guards. Our flexible technology provides an effective and versatile solution for thermal protection in a wide range of industrial applications. Our flexible and versatile solution for thermal protection in a wide range of industrial applications. Our flexible is lightweight and easy to fit and to remove as and when required, even in a restricted & confined area. The benefits of this product include:     Applications :   Flexible   Customized shape and size   Easy to fit and to remove   Effective heat protection up to 600°C   No tooling required.

ShreeCera Ceramic Fiber Textiles include the finished products of Ceramic Fiber Yarn, Ceramic Fiber Tape, Ceramic Fiber Cloth, etc. ShreeCera Ceramic Fiber Textile is specially processed with ceramic fiber spun bulk, alkali-free glass filament, and high temperature resistant stainless alloy wires. Besides the above products, we can also make high temperature resistant textile according to the customers' demands for specific operating temperature, conditions, and performance. ShreeCera Ceramic Fibre Textiles can be used upto 1250°C but when tensile strength is important, the temperature limits of the inserted material is to be considered.ShreeCera Ceramic Textile Products can be made available with minimum or no organic carrier. The main advantage of this product is exceptionally low smoke-off upon heating compared with standard fiber textiles. Consequently, these products are very much suited to fire protection applications and for hot wrapping of cables, pipes and ducts. These products are available only with SS wire re-inforcement. Features :   Low thermal conductivity   Low heat storage   Reduces fume emission around refractory   Excellent thermal shock resistance   Resistance to gas velocity   Easy to install   Adheres to most ceramic and metallic surfaces   Excellent corrosion resistance   Inert to most chemicals   Impermeable to molten aluminum, zinc, copper & lead   Asbestos free Typical Applications: Cloth and Tape   Gasket and wrapping material   Cable and wire insulation   Welding curtains and blanket   Furnace curtains & heat zone separators   Fuel line insulation   Expansion joints   Welding blankets   Personnel and equipment protection   Fire protection systems Rope   High temperature seals and packing in furnaces and heaters Cord   Door seals for stoves and ovens   Thermally insulating pipe wrap   Braids   Kiln car seals   Furnace door seals Jointing   High temperature door seals

ShreeCera Wool is a light weight thermal insulation material produced by spun process from a high purity alumina-silica composition having long and high refractory properties and resistant to most chemical attack.   Applications :   Expansion joint packing   Wet process feedstock   Filtration media   Kiln car infill   Moldables/Mastics feedstock   Ladle insulation Features :   Lightweight   Low Thermal Conductivity   Low heat storage   Thermal shock resistant   Good Sound Absorption   Very Low Curing and dry out time   Easy for installation   Excellent chemical stability   Free of asbestos   High temperature resiliency

ShreeCera Twisted Rope is a three-ply rope manufactured from ShreeCera long fiber yarn reinforced with fiber glass / SS wire It contains 15 – 20% organic carrier fiber to facilities the carding process which may burn off at a lower temperature. It is a dense resilient high temperature refractory, possessing excellent thermal properties, chemical stability and high mechanical strength.   Applications :   Furnace & Boilers door insulation   Expansion joints   Cable or Pipe wrapping   High temperature seals or Gaskets   High temperature Gasketing & Packing in Foundries, Refineries, Power plants and Steel plants

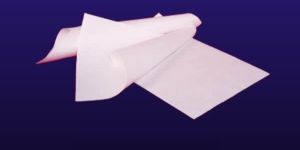

ShreeCera Ceramic fiber paper consists primarily of high purity alumino-silicate fiber and is made through a fiber washing process. This process controls the unwanted content to a very minimal level within the paper. KT ceramic fiber paper features light weight, structure uniformity and low thermal conductivity, which serve as a perfect solution for high temperature insulation, chemical corrosion resistance, and thermal shock resistance. Ceramic fiber paper can be used in various types of refractory and sealing applications and is available with a variety of thicknesses and temperature ratings.   Applications :   Steel and metallurgy   Backup lining for metal troughs   Gasket between Aluminium and Zinc trough sections   Expansion joints   Aluminium furnace tap-out plug cover and parting agent   Gaskets for any high temperature application

Grade : 1100oC

ShreeCera-: In the layered construction (Blanket, Board and Moist pack) the anchors are exposed to hot face temperature and are limiting factors for use of Ceramic fiber in high temperature applications. To overcome this limitation, modules are used. Module anchoring systems can provide an option of backup blanket lining with hot face modular lining. A backup blanket lining serves as safety lining in all unlikely event of module failure. It also makes it convenient to provide vapour barrier for protection against attack of sulphurous gases on the furnace shell.   Applications :   High temperature furnace   Kiln and heater linings   Coil annealing furnaces   Re heat furnace doors lining   Process heaters lining   Ammonia reformers and crude oil heaters   lining   Shuttle kiln   Tunnel kilns Features :   Good thermal shock resistance   Low heat storage capacity   Rapid and easy for installation   Durable service and lifespan   Lightweight

Working Temperature : 1050oC

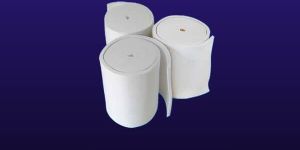

ShreeCera-: Blanket is a light weight needled blanket, provides effective solution to a wide range of thermal insulation applications. Manufactured using state of the art spinning and double needling technique, these blankets offer low thermal conductivity and superior insulation performance.ShreeCera Blanket is made from high purity Alumina, Silica and Zirconia. It is highly efficient insulator with extremely low shrinkage characteristics.   Applications :   Fire protection   Process heater lining   Boiler and turbine insulation linings   Fuel cell insulation   Chimney insulation   Storage heater tank insulation   Aluminium transfer conveyor.   Heat shielding for automotive parts   Furnace and kiln sealing, packing and back-up insulation Features :   Smoke free Inorganic   High temperature durability   Excellent thermal insulation   High temperature stability   Resist to thermal shock   Light weight and low heat storage   Chemical stability   Low thermal conductivity   Good sound absorption   Good confrontation to tearing

ShreeCera Twisted Rope is a three-ply rope manufactured from ShreeCera long fiber yarn reinforced with fiber glass / SS wire It contains 15 – 20% organic carrier fiber to facilities the carding process which may burn off at a lower temperature. It is a dense resilient high temperature refractory, possessing excellent thermal properties, chemical stability and high mechanical strength.   Applications :   Furnace & Boilers door insulation   Expansion joints   Cable or Pipe wrapping   High temperature seals or Gaskets   High temperature Gasketing & Packing in Foundries, Refineries, Power plants and Steel plants

ShreeCera-: Bio soluble fiber papers are made from high quality alkaline earth silicate fibers with suitable organic binders through vacuum forming method.Paper can easily cut and flexible to insulation. ShreeCera papers are high temperature stability and excellent performance. ShreeCera Bio Soluble fiber is vindicated from the carcinogen classification in the European Union under the terms of European Directive 67/548/EEC and the German Technical Rules for Hazardous Substances (TRGS 905).     Applications :   Steel and metallurgy   Backup lining for metal troughs   Gasket between Aluminium and Zinc trough sections   Expansion joints   Aluminium furnace tap-out plug cover and parting agent   Gaskets for any high temperature application

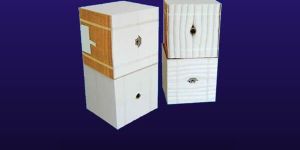

ShreeCera-: ShreeCera modules are compressed bio soluble blankets folded with specially designed internal anchoring system which gives choice of attaching the module to the shell by welding, bolting or self tapping screw method. ShreeCera Bio soluble module anchoring systems can provide an option of backup blanket lining with hot face modular lining.A backup blanket lining serves as safety lining serves as safety lining in all unlikely event of module failure. It also makes it convenient to provide vapour barrier for protection against attack of sulphur gases on the furnace sell.   Applications :   High temperature furnace   Kiln and heater linings   Coil annealing furnaces   Re heat furnace doors lining   Process heaters lining   Ammonia reformers and crude oil heaters   lining   Shuttle kiln   Tunnel kilns Features :   Good thermal shock resistance   Low heat storage capacity   Rapid and easy for installation   Durable service and lifespan   Lightweight

Grade : 1100oC

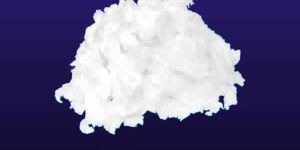

ShreeCera Bio soluble fiber is highly acid resistant alkaline earth silicate (AES), ShreeCera Bio Soluble fiber is vindicated from the carcinogen classification in the . European Union under the terms of European Directive 67/548/EEC and the German Technical Rules for Hazardous Substances (TRGS 905). ShreeCera Bio Soluble ber has been developed to high temperature characteristics required to act as an alternative to RCF.   Applications :   Expansion joint packing   Wet process feedstock   Filtration media   Kiln car infill   Moldables/Mastics feedstock   Ladle insulation Features :   Lightweight   Low Thermal Conductivity   Low heat storage   Thermal shock resistant   Good Sound Absorption   Very Low Curing and dry out time   Easy for installation   Excellent chemical stability   Free of asbestos   High temperature resiliency

ShreeCera-: Bio soluble fiber boards are made from high quality alkaline earth silicate fibers with suitable organic and inorganic binders through vacuum forming method. ShreeCera boards are high stability and excellent performance. ShreeCera Bio Soluble fiber is vindicated from the carcinogen classification in the European Union under the terms of European Directive 67/548/EEC and the German Technical Rules for Hazardous Substances (TRGS 905).   Applications :   Backup insulation for brick lining   High temperature insulation   Furnace and kiln sealing and packing Burner blocks   Combustion chambers of boilers & heaters   Storage heater tank insulationli

ShreeCera-: Bio soluble fiber blanket is highly acid resistant alkaline earth silicate (AES), ShreeCera Bio Soluble fiber is vindicated from the carcinogen classification in the European Union under the terms of European Directive 67/548/EEC and the German Technical Rules for Hazardous Substances (TRGS 905). ShreeCera Bio Soluble Fiber has been developed to high temperature characteristics required to act as an alternative to RCF, depends on equipment and operating conditions. ShreeCera Bio soluble fiber blanket reveal exceptional insulating properties at high temperatures.     Applications :   Fire protection   Process heater lining   Boiler and turbine insulation linings   Fuel cell insulation   Chimney insulation   Storage heater tank insulation   Aluminium transfer conveyor.   Heat shielding for automotive parts   Furnace and kiln sealing, packing and back-up insulation Features :   Smoke free Inorganic   High temperature durability   Excellent thermal insulation   High temperature stability   Resist to thermal shock   Light weight and low heat storage   Chemical stability   Low thermal conductivity   Good sound absorption   Good confrontation to tearing
