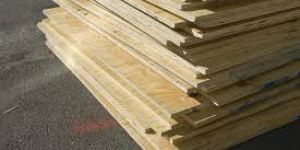

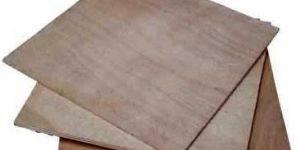

Marine Plywood
Get Price Quote
The company is engaged in manufacturing and supplying of Marine Plywood, which is processed under the guidance of experts to ensure the quality. The Marine Plywood is strong enough to withstand excess load thrust & vibrations, resistant to fungus & micro bacteria attacks, dimensionally stable, and thus an ideal choice for ambitious projects. Marine Plywood is bounded formal with superior grade condense phenol formaldehyde synthetic resin (IS 848:1974), which has the tenacity to make it adhesive in the world by making Marine Plywood 100% boiling waterproof. It is made Borer & Termite free by hot & cold treatment before gluing and pressing.
Raw Materials
Face veneer used : 4mm of Gurjan WoodCore used : Gurjan/popular/eucalyptusResin used : ISI marked UF/PF resin
Technical Specifications
Density (KG/m3) : 825 KG/m3Moisture Content : 8 - 10%
Static Bending Strength
Modulus of Elasticity (N/mm2)Along the Grain : >7500Across the GrainModulus of Rupture (N/mm2) : >4000Along the Grain : >50Across the Grain : >30
Tensile Strength (Kg/cm2)
(Sum of both directions) : >850kgs Screw Holding Strength (Kg.) : >300kgsNail Holding Strength (Kg.) : >175kgs
Quality Details
100% seasoned wood is usedChemically treated EOR protection against borerHigh in thicknessBorer & Termite freeFree from warping
Standard Thickness : 4 MM,6 MM,9 MM,12 MM,l6 MM,19 MM,25 MM
Standard Sizes : 2440 MM X 1220 MM, 2440 MM X 920 MM, 2140 MM X 1220 MM, 2140 MM X 920 MM, 1840 X 1220 MM, 1840 MM X 920 MM
