Number Of FlowerPNEUMATIC BURSTING STRENGTH TESTER
Driven TypeElectric, Pneumatic
MaterialMETAL
Brand NamePAP-TECH
Item Code2056-E
OriginIndia
GradeA
Display TypeDIGITAL
Net Weight (Kg)70-80
Description:

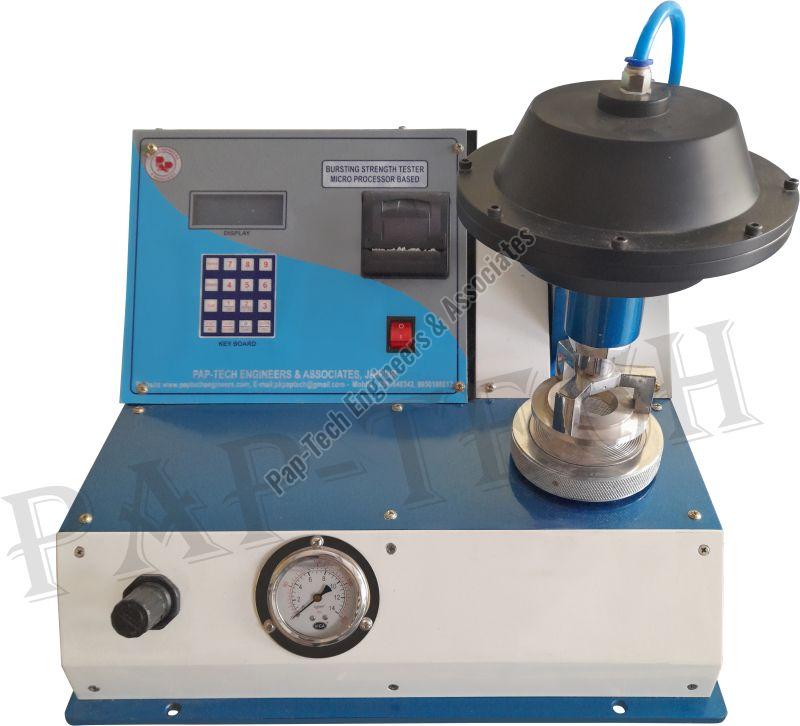

Pneumatic Single Head Bursting Strength Tester with printer determines the Bursting Strength for the Quality Control and Research & Development of paper, board and corrugated board. A test piece is clamped between two concentric plates each having circular opening in the center. Pressure is applied to the under side of a test piece by a rubber diaphragm, which is expanded by pneumatic pressure in two heads.
It has heavy cast-iron block & aluminum body, strain gauge pressure transducer, microprocessor system for sample, built-in pneumatic system for the diaphragm, quick connector for calibration, built-in electronics microprocessor and printer and exclusive.
You can also store 250 readings in your memory card
Process
You can check Bursting Factor of the Paper/Board Feed GSM of the test paper and you will get bursting strength and burst factor of the test paper/board in Decimal by Microprocessor System and with print
Technical - Specification:
Measuring results : Individual Bursting Strength values in Kpa or Kg/cm² and burst factor for paper
Pump flow rate : 95 ± 5 ml/min.
Measuring range : 0-7 kg/cm² or 0-35 kg/cm2
Use of over current relay, phase reversal
relay & MCBs ensures the safety of
Operator,Testing Bench & Unit under test.
Digital instruments makes the testing bench
, & with better.
Compact Reliable Accurate
Readability
Integrated PC allows and Automatic report generation.
