AVID MERCHANTS Jam, Jamnagar, Gujarat

Design Vertical wet pit Stages: Single / multistage Closed impeller Above or below floor discharge Pumped medium lubricated line shaft bearings Non pull out bowl/ rotating element Antifriction bearings Application Water supply/ irrigation Cooling water for power plant Flood control/ condensate extraction general industry/ fire fighting Special features / product benefits Caission/ cannister construction Tilted pad thrust bearings with cooling arrangement, semi-open impellers Oil / external water lubricated line shaft bearings Pull out rotating element, instrumentation & controls

Temperature : up to 800 C – higher on request

Design Vertical wet pit volute pump with Dry motor Stage: Single Closed impeller Oil lubricated bearing arrangement antifriction bearing Mechanical seal/ gland packing Application Emergency oil pump Dewatering

EL-O-Matic offers valve automation systems consisting of Butterfly, Ball, Plug and Damper  valves with pneumatic or electric actuators for both on / off and modulating application. El-O-Matic executes thousands of systems yearly, tailor made for the specific application of the industry. Some of the applications are very fast operating systems, sequencing of valves, batching operation. We also supply systems for defense and nuclear power for their critical high and low temperature applications.

TL (SER.30) – Through conduit The TL model knife gate is a through conduit wafer valve designed for media with high consistency. The double seat design assures a non-clogging shut off on either normal or reverse flow. The valve is used in a wide range of demanding applications in industries such as: Pulp & Paper Wastewater Treatment Plants Power Plants Chemical plants  Etc. Sizes:DN 50 to DN 1000 (larger diameters on request) Working pressure:DN 50 to DN 125: 10 (kg/cm²)DN 150 to DN 250: 8 (kg/cm²)DN 300 to DN 400: 6 (kg/cm²)DN 450: 5 (kg/cm²)DN 500 to DN 600: 4 (kg/cm²)DN 700 to DN 1000: 2 (kg/cm²)Standard flange connection:EN1092 PN10 and ANSI B16.5 (class 150)Note: other flange connections are available on request such as:EN1092 PN6/16/25BS D and EANSI 125 Directives:DIR 2006/42/CE (MACHINES)DIR 97/23/CE (PED) Fluid: Group 1(b), 2 (Cat. I, mod. A)DIR 94/9/CE (ATEX) Please contact Orbinox for information and availability of categories and zones.

BC (SER.90) – Square port The BC model knife gate is a square port low-pressure valve for solid loaded fluids, mainly used in bulk handling and silo outlet applications in industries such as: Chemical plants Wastewater treatment Plants Power plants Mining Food and Beverage etc. Sizes:From DN 150 x 150 to DN 600 x 600 (other dimensions on request) Working pressure:150 x 150 to 600 x 600: 1 kg/cm² For higher pressure: Casted bodies (on request) Directives:DIR 2006/42/CE (MACHINES)DIR 97/23/CE (PED) Fluid: Group 1(b), 2 (Cat. I, mod. A)DIR 94/9/CE (ATEX) Please contact Orbinox for information and availability of categories and zones.

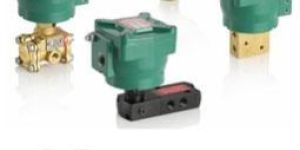

El-O-Matic provides various combinations of solenoid valves suitable for the systems supplied for ON / OFF applications. The combinations available are 5/2, 4/2, 5/3 for double acting actuators 3/2 for spring return actuators Single coil or double coil Direct acting or pilot operated Namur or non-namur mounting Process connection ¼” NPT as standard (other sizes optional). Operating pressure depending on the model selected Orifice size depending on actuator size Coil insulation     class F as standard     class H (optional) Type of Coil    Terminal box as standard     Plug in (optional) Protection class    IP 67 standard    IIAIIB, IIC, intrinsically safe, ATEX, SIL Certified (Optional)  Body material     Aluminium or brass or SS Electrical cable entry     ½” NPT (standard)     ¾” ET, PG 13.5, M20 (optional)     Manual operator (optional) Voltages : Choice of various voltages are available as per requirement: 24V DC, 48V DC, 110V DC, 110V AC, 220V AC. etc.

The WG (SER.65) model knife gate is a bi-directional  full flanged valve equipped with two metal reiforced rubber sleeves designed for use in the handling of abrasive slurries, maily in industries such as: Mining Power plants Chemical plants Wastewater treatment etc. Sizes:DN 50mm/2″ to DN 900mm/36″ (larger DN on request) Working pressure:DN 50mm/2″ to DN 400mm/16″: 10 bar (100psi)DN 450mm/18″ to DN 600mm/24″: 6 bar(90 psi) o 10 bar(100 psi)DN 700mm/28″ to DN 900mm/36″: 5 bar(75 psi) Note: higher pressures and/or diameters on request. Standard flange connection:DIN PN10 and ANSI B16.5 (class 150) Standard face to face: see the catalogue Directives:DIR 2006/42/CE (MACHINES)DIR 97/23/CE (PED) Fluid: Group 1(b), 2 (Cat. I, mod. A)DIR 94/9/CE (ATEX) Please contact Orbinox for information and availability of categories and zones.

Rustolene is a powerful rust dis-integrating solution. It is a quality product that has been a trusted for Rust removing for years. This is a multipurpose maintenance aid and significantly reduces the maintenance cost. It is specially formulated to fight rust, which makes it indispensable to industrial plant, factories and garages. Overall Rustolene acts as a dis-integrator, dismantler, Lubricator, decarboniser & cleaner The active ingredients in Rustolene attack the point where rust and metal parts are bound together and consequently eliminate rust from the surface. It also penetrates the tightest of joints reaches between the finest of threads and enters the innermost points of inaccessible mechanisms   CHARACTERSTICS/ADVANTAGES: Non Injurious Saves Time & Labour Excellent film spreading properly Excellent penetrating properties Non Corrosives Non Messy   USAGE: Used in industries for rust disintegration and lubrication for pipelines.*Opening of jammed nuts & bolts* Pipeline* Crushing & Grinding Equipments* Valves & Pumpset.* Motor Power Generators* Lifts, Crane, Hoists, Sprocket.* Storage Tank* Compressors 7 Blower* Heat exchangers. Office Equipments* Type writer* Duplicator Machine* General Machines Farm MAchines* Thressing Machine* Combine harvesters* Tractors Automobile* Garages for cleaning of all metallic parts & Engine

The Posiflex-Pneumatic Positioner is a simple, single stage, displacement balance instrument suitable for either linear or rotary actuators.It provides stepless positional control for a wide variety of pneumatic actuators. A single universal model can be used for both double acting and single acting applications. The basic design incorporates a high enhancement flapper and nozzle spool valve and adjustable range and reversing mechanical feedback Three Position Cam for Rotary Actuators provides for linear, quick opening and equal percentage characteristics. A special cam for rotary actuator provides for split range.

Country of Origin : India

Size : 100-150mm, 150-200mm, 200-250mm, 250-300mm, 300-350mm

Number Of Flower : Pneumatic Positioners

Material : Stainless Steel

Certification : ISI Certified

Availability : 10-20kg

EL-O-Matic Pneumatic actuators are powerful and compact double rack and pinion units for use with ball, butterfly and plug valves and any device requiring accurate and dependable quarter turn rotary motion. The use of high grade steel and aluminum components together with EL-O-Matic's patended 3 point piston support provides a tough reliable unit for the automation of today's high performance industrial valves. Modern synthetic bearings ensure no metallic contact between moving components. Spring return actuators incorporate the multiple spring concept for maximum flexibility, they are also "field reverseable". Safety features include an anti-blow out spindle and a spring retaining system which ensures no spring tension on disassembly. A wide range of control options are available to cover each and every industrial application.The choice of actuator depends primarily on the valves’ torque requirement, and with El-O-Matic you have the widest range possible, 18 basic model sizes covering a torque range from 12 to 4000 Nm. 'E' Series actuators incorporate a body of cast aluminum and have pistons where the rack teeth are precision machined onto the aluminum casting. Spring return versions have a maximum of 6 springs, 3 in each end cap assembled as a concentric stack. 'P' Series actuators cover the large end of the torque range. These all incorporate a body of cast aluminium and have steel for the rack on pinion drive. Spring return versions have a maximum of 14 springs 7 in each end cap assembled within a hexagon pattern. All actuators have mounting flanges and drives to ISO 5211. Mounting kits can be provided for most of the worlds quarter turn valves.EL-O-Matic actuators comply fully with all the relevant industry standards. Control interfaces for solonoid valves, switch boxes and positioners satisfy the NAMUR standard (VDI/VDE 3845).   Rotation (Standard) :: Counter clockwise to open with port 'A' pressurised Spring return Actuators air fail to close clockwise Movement(Standard) : 91.50 from -0.50 to910 counter-clockwise Lubrication : Factory lubricated for the normal life of Actuators Life : 5,00,000 operations minimum

Pressure : Upto 8 bar

Material : Housing - Aluminium Alloy

Plasti Dip is an air dried, flexible, liquid matt coating for use on virtually anything. Heavy duty Remains flexible Elastomeric coating Seals out air and moisture Stops rust and corrosion Resists acids, solvents, water and alkalines. Once applied, Plasti Dip Elastomeric coating protects virtually any surface. The coating will form an air and moisture-tight film that will not chip, crack or peel. Plasti Dip maintains a 300 – 400 % elongation, in temperatures ranging from (minus) -34° Centigrade to (plus) +93° Centigrade, even under extreme conditions. Plasti Dip is a tough coating, and resists akalines, acids, salts, moisture and most chemicals, to ensure positive protection for concrete or metal surfaces. Because Plasti Dip is flexible, it performs when extreme expansion or contracting conditions would cause most other paints or coatings, to chip, crack, peel or breakdown. To maintain a Plasti Dip coating, even after years of exposure, simply wash down to remove grime etc., and recoat. A new application of the coating will fuse to the original coating and extend protected life. For coverage and other technical information, please refer to our Technical Data Sheet. For Manufacturer’s Safety Data information, please refer to our MSDS Sheet. Typical applications include: Structural concrete; Sealing block walls Roadway structures Swimming pools Foundations Fountains Walls and ceilings in processing plants (wherever concrete deterioration is a problem) Structural Steel; Joists and Beams Metals (subjected to any corrosive environment) Bridges Cushions Hand Rails Railings Storage towers Below ground tanks Exposed machinery

Design End suction top discharge Mounting: Horizontal Stage: Single Back pullout design Closed impeller Mechanical seal/ gland packing Grease lubricated antifriction bearings Application Building service Sprinkler systems Water supply General industry

Temperature : up to 1200C

Design Mounting: Horizontal Stages: 3 to 15 Radial flow impellers with vane diffusers mechanical seal/ gland packing Grease lubricated antifriction bearings Application Mine dewatering Descaling in steel mills Boiler feed application Reverse osmosis for desalination plants water supply / general industry Fire fighting Special features / product benefits Mounting: Centreline/ vertical Multi-outlet design Balance valve design for axial thrust bush bearing/ roller bearing

Design Standards as per ISO 2858 End suction top discharge Stage single Back pullout design Closed Impeller Gland packing/Mechanical seal Application HVAC systems Water transfer Distribution systems Fire fighting Cooling tower Special features / product benefits Bearing Housing Unique design for Grease & Oil Lubrication Provisions for temperature gauge / vibration probe Bearings NR type replaced with standard type

In case of failure of the actuator, due to interruptions of compressed air supply or otherwise during maintenance, the Manual Override assists in operating the actuator / process valve.El-O-Matic MO series declutchable gear operators offer simple and reliable manual positioning of the valves, dampers and other quarter turn devices when overriding existing pneumatic or hydraulic rotary actuators. All El-O-Matic MO units combine rugged construction, light weight and modular design to provide the most efficient and cost effective solution to a full range of manual override requirements. The self locking worm gear design means safe and easy operation, positive manual positioning and extremely long life. The MO can be adapted to any quarter turn actuator and may even be installed in the field on existing valves. Five Models cover torque upto 8000 Nm

M seal steel putty is a two component, easy to use epoxy putty. It sets at room temperature. It is available in the form of co-extruded and co-centric sticks. It is used as a sealant to join various ferrous and non-ferrous surfaces. It sets into a hard mass that can be machined, drilled, and painted. Application Areas: Build broken metal castings Levers Manifolds Muffler Exhausts Tools Machinery Seal leakages in tanks, radiators, furnaces, pipes, air ducts Fill cracks in engine blocks, heads, throttle housings, rebuilds stripped bolt-holes Renew surfaces damaged by corrosion and abrasion Usage Directions: Cut required amount of putty, knead with fingers till material is uniform in color Clean and roughen the surfaces to be joined, mended Apply putty, force into gaps wherever necessary Smoothen the putty with wet fingers. Putty will harden after about 15 minutes (at 27+- 2°C) Once cured it can be drilled or sanded Replace unused quantity in wrapper and canister Store in a cool, dry place Cautions: Do not use on areas that come in direct contact with food, drink, flame or high temperature May cause skin or eye irritation. Harmful if swallowed Keep out of Reach of Children Actual setting time may vary depending on temperature and surface conditions Safety and First Aid: Wash hands with warm water and soap after use Use eye and respiratory protection equipment, in case material is drilled or sanded In case of accidental eye contact, flush with plenty of water and seek medical advice In case of internal consumption seek medical attention immediately

El-O-Matic supplies switches for indicating the valve / actuator position. The switches are operated by two cams on an extension of the actuator drive shaft. All mechanical parts and the switches are contained within the enclosure. Both switches are independently adjustable throughout the operating stroke, but are normally set to indicate the open or close position. The terminals of the switches are pre-wired to a terminal block which is easily accessible when the top cover is removed. The switch box is mounted on top of the actuator with an accessory bracket. Mechanical / Micro-switch : 1 NO + 1 NC (SPDT) 2 NO + 2 NC (DPDT) Rating* : Varies with Switch Model. Contact Factory. Proximity switches : AC / DC / Universal NO or NC Configuration 2 Wire / 3 Wire Intrinsic safe / Non-intrinsic safe Available in various voltages as per requirement Enclosures are offered for : Weather protection IP 67Explosion proof of IICAtex Certification*  Housing Material of Construction : Aluminium (Standard)

Our Gun Metal Check Valves are designed as per the latest market trends and client’s demands. Praised For Corrosion resistance Compact design Longer life Efficient performance

Design Mounting: Inline horizontal Stages: One/ two/ three stage single/ double suction impellers Grease/ Oil lubricated antifriction bearings Mechanical seal/ gland packing Application Water supply/ general industry Ports & docks/ fire fighting Irrigation/ marine desalination Special features / product benefits Mounting: Centre line/ vertical Drive connection: direct/ cardan shaft bush bearing Staggered vane design for fan pump application Special suction/ delivery orientation* instrumentation & controls

The XC model knife gate is a wafer valve designed for industrial bulk handling service applications (powdered and granular products). The special design of the body allows for easy passage of the fluid and makes it ideal for use as silo outlet valve. Widely used in industries such as: Power plants Food and Beverage Chemical plants Mining Etc. The valve is normally installed in the reverse position (seat upstream) in order to avoid problems like build-up in valve body, seat wear, difficult closing… Sizes:DN 50 to DN 600 (larger diameters on request)Working pressure:Of seating:DN 50 to 250: 3 kg/cm²DN 300 to 400: 2 Kg/cm²DN 450: 1,5 kg/cm²DN 500 to 600: 1 kg/cm² On seating:DN 50 to 250: 10 kg/cm²DN 300 to 400: 6 kg/cm²DN 450: 5 kg/cm²DN 500 to 600: 4 kg/cm² Standard flange connection:EN1092 PN10 and ANSI B16.5 (class 150)Note: other flange connections are available on request. Directives:DIR 2006/42/CE (MACHINES)DIR 97/23/CE (PED) Fluid: Group 1(b), 2 (Cat. I, mod. A)DIR 94/9/CE (ATEX) Please contact Orbinox for information and availability of categories and zones.

It is widely demanded in the market for its smooth working, durable life and optimum resistance against corrosion. We offer Gun Metal Gate Valve at budget-friendly prices. Availability PN-16 (Threaded) 14″ (8mm) to 4″(100mm) PN-20 (Flanged) 12″ (15mm) to 6″ (150mm)

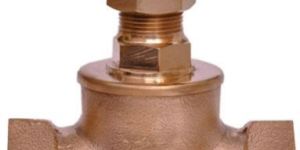

Made as per the international quality standards, our Gun Metal Globe Valves are excellent in efficiency. These Gun Metal Globe Valves can be availed in different specifications. Appreciated For Compact design Longer life Efficient performance Corrosion resistance Availability PN-16(Threaded) 14″(8mm) to 6″(150mm) PN-20Cl-1Cl-2(threaded) 14″(8mm) to 4″(100 mm) PN-25PN-32(Threaded) 14″(8mm) to 4″(100mm) PN-16CL-100(Flanged) 12″(15 mm) to 6′(150 mm) PN-25CL-150CL-1CL-2(Flanged) 14″(8mm) to 4″(100mm)

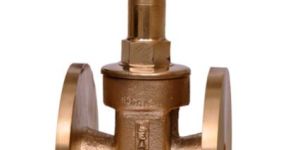

Customers can avail from us precision engineered Gun Metal Gate Valve. Available in different specifications, the Gun Metal Gate Valve is designed strictly as per IS:778, BS:5154, MSS-SP-80 standards. It is widely demanded in the market for its smooth working, durable life and optimum resistance against corrosion. We offer Gun Metal Gate Valve at budget-friendly prices. Availability PN-16 (Threaded)1/4″ (8mm) to 4″(100mm) PN-20 (Flanged)1/2″ (15mm) to 6″ (150mm)

KING PROTECT R – FLASHBACK ARRESTOR FOR REGULATOR     Features and Specifications : Flashback Arrestors are used to protect gas cylinders and pipeline outlet points (hoses and any equipment) against dangerous reverse gas flow and flashbacks. For pipeline outlets and single cylinders. The maximum ambient / working temperature is 70°C / 158°F. OPERATION / USAGE Standard Features : A large surface area flame arrestor of stainless steel construction extinguishes any dangerous flashback entering the device in any direction. A temperature sensitive cut-off valve extinguishes sustained flashbacks long before the internal temperature of the arrestors reaches a dangerous level. A spring loaded non-return valve prevents slow or sudden reverse gas flow forming explosive mixtures in the gas supply. A filter at the gas inlet protects the arrestor against dirt contamination, extending the service life.
