SKF Y-bearings, which are usually refered to as insert bearings, are basically sealed deep groove ball bearings in the 62 and 63 series with a convex sphered outer surface. These bearings are manufactured in a number of different series and sizes and are available with standard inner ring or an inner ring that is extended on one or both sides. The various bearing series differ in the way the bearing is located onto the shaft.

SNL plummer block housings are the most popular of the wide range of SKF housings.Many different bearings and seals can be fitted so that it is seldom necessary to resort to tailored housings for specific applications. SNL plummer (pillow) block housings up to size 32 are the most popular of the wide range of SKF housings. Because of their versatility it is seldom necessary to resort to tailored housings for specific applications. The housings are horizontally split and have two or four attachment bolt holes in the base as standard.

These SKF sleeves facilitate the use of the SKF Oil Injection Method. The larger sleeves have oil supply ducts and distribution grooves,enabling the user to inject oil between the sleeve and bearing bore and between the sleeve and the shaft. This oil reduces friction and force necessary for mounting, particularly when mounting in a dry state. Reduces the risk of damage to shaft and sleeve Reduces the time to mount and dismount bearings A full range of pumps, nipples and pipes are available SKF sleeves also help making bearing dismounting easier

Explorer is a new generation of SKF spherical roller bearings that provide previously unattainable benefits in a wide range of applications. Explorer bearings afford several times longer life than standard spherical roller bearings. The new bearings' extended lives offer valuable downsizing or upgrading opportunities for engineers working on both new and existing designs. Explorer bearings make it possible to reduce overall dimensions, achieve material cost and weight reductions, and also increase energy efficiency. A smaller bearing runs cooler and generates less vibration.

SKF offers a range of high quality lubricating greases to suit many bearing applications and conditions. The greases have been developed spefically to meet the needs of rolling bearings and their application conditions. Grease Guns and Pumps The SKF range also includes grease guns, manual and air-driven grease pumps and grease filter pumps. Grease filter pumps are used to fill grease guns and grease packers from standard SKF grease drums.

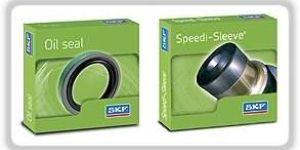

Seals for Rotating Machine Components Radial Shaft Seals * Mechanical Seals* V-Ring Seals * Axial Clamp Seals * Wear Sleeves for Shaft repairs

Seals represent an important part ofthe SKF business. The SKF range consists of seals in contact with stationary or sliding surfaces and covers virtually all applications. From Design concepts to high volume production, from orginal equipment to aftermarket, SKF can provide sealing solutions to its customers.

SKF Oil Levellers, LAHD 500 and LAHD 1000, are designed for automatic adjustment of the optimal oil lubrication level within a bearing housing, gear box, crank case or similar oil bath lubrication application. Not usually possible, SKF Oil Levellers allow you to effectively adjust the correct oil level during running conditions, optimising machine performance and increasing the service life of the applications. Furthermore, they automatically compensate for oil leakage and offer the possibility of visual inspection of the oil level.

NoWear bearings make sense whenever bearings are failing prematurely due to severe operating conditions. NoWear bearings can withstand longer periods of insufficient lubrication, sudden variations in load and rapid speed changes, vibrations and oscillations. NoWear bearings open up new possibilities to existing applications operating under severe conditions, without introducing major design changes and enable freedom in new designs. They have already been proven in a wide range of extreme applications, including paper machines, marine and offshore applications, fans, compressors, hydraulic pumps and motors.

The lubrication of bearings with the correct type and quantity of grease is essential for trouble-free operation. Research has shown that 36% of all bearings fail prematurely due to incorrect lubrication. Especially for installations with multiple lubrication points, this can be a time-consuming and costly process. SYSTEM MultiPoint, SKF's centralised automatic lubricator, is the most user-friendly and cost-effective automatic lubricator for multiple grease lubrication points available today. Its compact design, combined with electronically controlled accuracy, makes it an excellent solution for longer bearing-life and increased uptime of your machinery.

SKF Bearing Greases System 24 Single Point Automatic Lubricator Multi Point Automatic Lubricator Oil Leveler LAHD Series Grease Packer LAGP 400 Grease Gun 1077600 Grease Meter LAGM1000E Grease Pump LAGG Series Vogel Lubricating System

Large size bearings be it Spherical roller bearings, Cylindrical roller bearings or taper roller bearings, SKF has a bearing for every application in Steel, Cement, Heavy engineering, Mining & Power. SKF 4-Row spacer less taper roller bearings makes mounting simple, maintenance easy and improved load distribution leading to reduce wear and longer service life.

If the standard range of INSOCOAT deep groove ball bearings and cylindrical roller bearings is inadequate please contact the SKF application engineering service for information about the complete manufacturing programme of INSOCOAT bearings. Other types and sizes of INSOCOAT bearings that are not listed in the standard range and INSOCOAT bearings with an aluminium-oxide layer up to 300 µm thickness on the bearing outer ring are available on request.

SKF hybrid bearings are made as standard of the same steel as the equivalent all-steel bearing. The standard stabilization temperatures are 120 °C for deep grove ball bearings and 150 °C for angular contact ball bearings. For continuous operation above these temperatures it is recommended to use bearings with rings that are dimensionally stabilized for use at higher operating temperatures e.g.

Full range of manual and air-operated grease pumps are designed to empty standard 18, 50 or 180 kg (39, 110 or 400 lb) grease drums. Can be connected directly on the greasing points, also suitable for centralised lubricating grease systems. SKF grease pumps have a maximum pressure of 50 and 42 MPa (7,250 and 6,090 psi) respectively. Tested and approved for SKF greases. Easy to install and ready for use since pumps are supplied with all necessary items including 3 500 mm (137.8 in) of tubing.

The grease packer LAGP 400 is a low pressure alternative for emptying SKF grease cartridges. It provides an easy and clean alternative to manual grease packing of open bearings. * Supplied with three spout caps * Applies grease to open applications such as bearings or open gears

It is generally difficult to determine the correct quantity of grease when manually lubricating bearings, either using a grease gun or pump, which can result in either over- or under-greasing the bearing. That can negatively influence the bearing's service life and possibly result in machine breakdown. The skf grease meter lagm 1000e accurately measures grease discharge in volume or weight, in both metric (cm³ or g) and us units (us fl. Oz or oz). It has a high maximum pressure of 70 mpa (10,000 psi), making it ideal for use in combination with many types of grease guns and pumps.

The SKF grease gun is ideal for the agricultural, industrial and construction industries and for private use. The SKF grease gun is delivered with a 175 mm (6.9 in) long extension pipe with hydraulic gripping nozzle. A flexible 500 mm (19.7 in) long pressure hose with hydraulic gripping nozzle is available as an accessory.

When dismounting bearings, care must be taken not to damage other machine components, such as the shaft or housing, as damage can result in compromising the machine's efficiency and lifetime. Bearings are sometimes dismounted to maintain or replace other components of the machine. These bearings are often re-used. Selecting the correct dismounting methods and tools is then essential in reducing the risk of damaging the bearing, allowing it to be used again. Dismounting bearings can be a hazardous and demanding task. Selecting the correct dismounting methods and tools is therefore of utmost importance for reducing the risk of personal injuries.

The CARB toroidal roller bearing is a completely new type of radial roller bearing. This compact self-aligning roller bearing was developed by SKF and introduced on the market in 1995. In a unique design, it combines the self-aligning capability of the spherical roller bearing with the unconstrained axial displacement ability of the cylindrical roller bearing. It can also have the compact cross section normally associated with the needle roller bearing. The load carrying capacity of the CARB bearing is very high even when it has to compensate for angular misalignment or axial displacement.

For bearing arrangements, which have to operate at extreme temperatures in the range -150 to +350 °C, or which have to withstand very large temperature differences, e.g. in kiln trucks, furnaces or the conveyor systems of lacquering equipment, normal rolling bearings are unsuitable. SKF has therefore developed high-temperaturedeep groove ball bearings - Y-bearings - Y-bearing plummer block units - Y-bearing flanged units

SKF's range of maintenance products includes pullers, fitting tools, heaters, instruments, lubricants, lubricators and oil injection equipment. These maintenance products are designed specifically for bearing users and regardless of your bearing size, type or application, this comprehensive range of products offers you the right tool for all your bearing maintenance needs.

Poor lubrication can considerably reduce the service life of the best of bearings. With that in mind, SKF has enhanced the performance of the single-point automatic lubricator: SYSTEM 24. While enhancing the reliability and ease-of-use,SYSTEM 24 still offers you the features and benefits you have to come to expect from SKF automatic lubricators.
