Singhasini Process Plant and Equipment Fazalganj, Kanpur, Uttar Pradesh

We are offering three roller mill. singhasini rollar type pulveriser finds best application due to its low maintainance cost, low power consumption as compared to the other grinding units. The unit is specially designed to grind raw sulfur in to fine powder as the pulverisation of sulfur involves high degree of explosion or fire hazard. The machine is been provided with shell release pressure of the gases so as to keep the machine safe.

We are offering Screen Type Pulveriser. *ideally suited for coarse grinding of brittle , medium hard minerals singhasini hammer mills are well designed hammer mills of simple and sturdy construction. The main shaft runs on ball/rollar bearings and it contains multiple rows of four or more hammers installed on a hub the grinding is achieved by the impact of the hammers against the liner fitted in the body , the fineness of the finished product is controlled by the replaceable screens fitted in the lower half of the body. All portion of the body where wear and abrasion is expected, are lined with replaceable liners.

Brand Name : SINGHASINI

We are offering singhasini ribbon blenders are excellent blendes for homogenous mixing of powders and are fabricated from m.s sheet formed in a ‘u ‘shaped trough. The main shaft consists of helical ribbons designed for better homogeneous blending. This is run by gear box of worm wheel type, driven by electrical motor with chain & sprocket arrangement or by geared motor. The main shaft is supported on a pair of heavy duty rollar/ball bearings, housed in a dust proof casing.

Brand Name : SINGHASINI

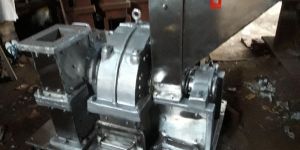

We are counted among the well-reputed firm for providing Impact Type Pulveriser to our esteemed patrons. Customers can easily get them from us in varied specifications at nominal prices. Singhasini Pulveriser Features: Double Silica SeperatorScrew Conveyor For Removal Of SilicaAutomatic Feeding System Product Description: This is a swing beater type Hammer Mill having coupled Blower and a Build-in-whizzar classifier. Every wearing part is lined with replaceable liners. The main shaft is supported on a pair of heavy duty Rollar/Ball Bearings, housed in a dust proof Casing. The Beater are made of Forged Steel, Coated with wear resistant electrode.

Power : Other

Driven Type : Electric

Country of Origin : 440V

Packaging Type : Other

Condition : New

Number Of Flower : Impact Pulverizer

We are offering Pulveriser. This is a swing beater type hammer mill having coupled blower and a build-in-whizzar classifier. Every wearing part is lined with replaceable liners. The main shaft is supported on a pair of heavy duty rollar/ball bearings, housed in a dust proof casing. The beater are made of forged steel, coated with wear resistant electrode.

Brand Name : SINGHASINI

We are offering microfine pulveriser. this will consists of an air swept having stages of grinding chamber. Each stage having its own independent build- in -whizzar classifier and a throughout chamber called grid/silica separator.these are fitted with screw type discharger., every wearing part is lined with replaceable liners. The main shaft is supported on a pair of heavy duty rollar/ball bearings, housed in a dust proof casing. The grinding chambers are fitted with specially designed radial liners.

Brand Name : SINGHASINI

We are offering masala mill. *popular unit for spices grinding this is a screen type pulveriser having replaceable screen at the bottom & grinding liners at the top.this is a swing beater type hammer mill having coupled blower to pneumatically convey the grounded material discharged at the bottom of the mill to the cyclone separator.the main shaft is supported on a pair of heavy duty rollar/ball bearings, housed in a dust proof casing. The beater are made of steel. This is complete with cyclone separator & intermediate ductings.

Production Capacity : 100-150kg/hr

Country of Origin : 440V

Power : 12-25Kw

Automatic Grade : Semi Automatic

Condition : New

Driven Type : Electric

Brand Name : SINGHASINI

We are offering Jaw Crusher. * efficient * durable * economical singhasini crusher is the product of long experience and skilled workmanship. The crusher is available in cast iron or fabricated steel body. the crushing is achieved between the fixed jaws held in the body and the swing jaw held in the jaw stock. The main driving shaft –which is eccentric give elliptical to and fro motion to the jaw stock. The discharge opening is adjustable, hence the size of the end product can be controlled.the two heavy fly wheels are provided to ensure steady running.

Brand Name : SINGHASINI

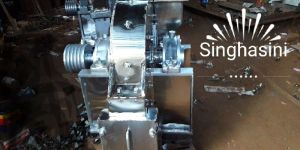

With prosperous industry practice, we are known to offer Hammer Mill. It is made by experts using the advanced technology. Product Description Singhasini Hammer Mill are well designed hammer mills of simple and sturdy construction. The main shaft runs on Ball/Rollar bearings and it contains Multiple rows of four or more hammers installed on a Hub The grinding is achieved by the impact of the hammers against the liner fitted in the body , the fineness of the finished product is controlled by the replaceable screens fitted in the lower half of the body. All portion of the body where wear and abrasion is expected, are lined with replaceable liners.

Power : Other

Driven Type : Electric

Country of Origin : 440V

Packaging Type : Other

Condition : New

Availability : Other

Number Of Flower : Hammer Mill

Total Carbohydrate : Other

We are offering dust collectors. this is totally enclosed type of dust collector with 99.9% of dust collection efficiency. It has a enclosed shell consisting of various filter bags. The dust laden gases enters the shell & flows from ouside to inside of the filter bags, thus the clean air leaves the shell from the top and dust is collected in the chamber, the layer formation of dust in the process is cleaned on intervals by flow of reverse air from inside to outside the bags held in cages, so as to provide clean surface to the fresh stream of dust laden gases entering.

Brand Name : SINGHASINI

We are offering disintegrator. *ideally suited for coarse grinding of soft and medium hard minerals or vegetable products singhasini disintegrators are well designed hammer mills of simple and sturdy construction. The main shaft runs on ball/rollar bearings and it contains single row of four or more fixed hammers installed on a hub the grinding is achieved by the impact of the hammers against the liner fitted in the body, the fineness of the finished product is controlled by the replaceable screens fitted in the lower half of the body. All portion of the body where wear and abrasion is expected, are lined with replaceable liners.

We are offering cyclone seperators. the design of these seperators depends upon the air flow of dust laden gases. The use of single or batteries of cyclone depends on the specific requirements on separation of dust from air.

Brand Name : SINGHASINI

We are offering whizzar type classifiers. these classifiers are dynamic classifiers, has a rotating whizzar blades to disperse particles with a small axial selection turbine. Air circulation is ensured by a centrifugal rotor which is placed in the upper part.

Brand Name : SINGHASINI

We are offering double cone classifiers. these are classifiers of the “static” type separate the coarse particles from the fine particles by a cyclone effect the material enters the use of these classifiers on a powdery product with a given grain size allows the product to be divided into two parts: the first one made up of fine particles and the second one of coarser particles.

Brand Name : SINGHASINI

We are offering air lock valve. Finds best application in flow of material without leakage of air in pneumatic conveying systems.

Brand Name : SINGHASINI
