Plough Equipment Dealers in Karnal

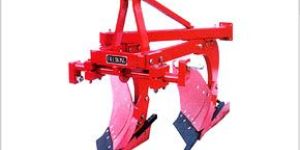

We are offering mouldboard plough. Sonafarm 'mould board plough' can handle the toughest ploughing job with outstanding penetration performance. The under frame and unit-to-unit clearance are adequate to cope with trashy conditions. Perfect alignment of the plough beams carrying the mould board bottom is maintained by virtue of the frame construction. The mould board will retain their mirror finish at all time contributing to well turned furrows. The plough has special wear resistant steel bottoms with bar points for toughest ploughing jobs. Bar point bottom ensures longer life as it can be extended or reversed and re-used till the last possible length.

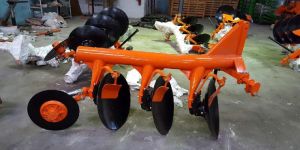

SONAFARM 'MOUNTED DISC PLOUGH'. Regardless of ground conditions Disc Plough can handle the toughest ploughing jobs. For extremely hard ground and soil with large roots and other obstructions, one can obtain outstanding penetration performance. For soft sticky ground and sandy soil depth can be controlled through the built-in depth control. The under frame and unit-to-unit clearances are adequate to cope with trashy conditions. Perfect alignment of the sub-beams carrying the Disc bottoms is maintained by virtue of the frame construction. An adjustable and spring-loaded furrow wheel takes care of the side draft and the implement moves smoothly. Disc till angle can be varied in three stages to perform on various types of soils.

1. Sfab disc plough comes with heavy duty tubular frame which can handle toughest conditions. 2. Sfab disc plough depth can be controlled through the build in depth control 3. Customers can adjust the cut from the front disc with the help of the drawbar. 4. Tilt angle can be adjusted where customers can increase the tilt angle to improve disc penetration in heavy sticky soils and decrease for loose and brittle soil. 6. Sfab disc plough comes with boron disc and high quality bearings which makes this equipment best at work and gives better return on investment.

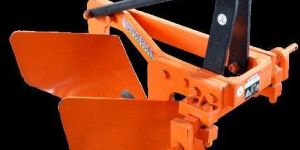

For excellent quality Mouldboard Ploughs, you can contact us. The company is an established Manufacturer, Supplier and Exporter of Mouldboard Ploughs from Haryana. The under frame and unit-to-unit clearance of the Plough are adequate to cope with trashy conditions. The bar point of the Plough ensures longer life as it can be extended or reversed and re-used till the last possible length. Our Mouldboard Plough has special wear resistant steel bottoms with bar points for toughest ploughing jobs.

Description PAMDP-2 PAMDP-3 PAMDP-4 PAMDP-5 Frame (mm) Seamless Tubular Frame (OD 168, ID 146) Axle Type Spindle No. of Disc 2 3 4 5 Mounted Cat. CAT-II CAT-III Type of Disc Plain Disc Disc (Diameter) 660 X 6 T (26”) or 710 X 7 T (28”) Disc Spacing (mm) 570 Width of cut (mm approx.) 500-550 875-925 1150-1200 1575-1625 Bearing Hub 2 3 4 5 Weight (kg) 310 410 510 620 Tractor Power (HP) 50-60 65-80 85-100 105-125

Used to open new fields and process stony areas. Can handle toughest ploughing conditions with ease. Spring loaded coulter disc makes sure the implement moves smoothly in the dynamic conditions. Available in 2,3,4 and 5 bottom.

 The disc plough is designed to work in all types of soil for functions such as soil breaking, soil raising, soil turning and soil mixing.  It is used to open the new fields and to process the stony areas.  It can be used easily at rocky and rooted areas.  It is specially useful in hard and dry trashy land conditions and in soils where scouring is a major problem.  It is being produced with 2-3-4 and 5 bottoms with an option for extra kit for furrow addition.

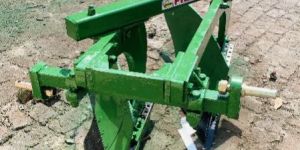

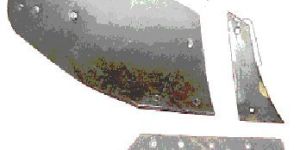

We offer to the clients a comprehensive range of mb plough blades. Specially designed with under frame unit to unit, mb plough blades that we deliver in the market are widely appreciated by the clients. Unmatched quality, high end performance and durability are some of the special attributes of the range of mb plough blades offered by us. These mb plough blades are extensively used for different types of ploughing job.

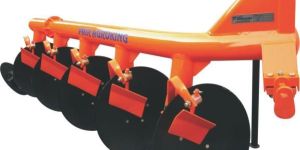

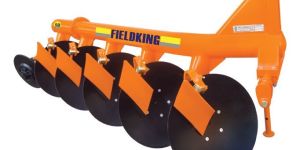

Mounted disc plough is termed as the accessories that can easily handle the toughest ploughing jobs. For extremely hard ground and soil with large roots and other obstructions, one can obtain outstanding penetration performance with the help of the mounted disc plough manufactured by us.

 It is directly mounted to the tractors.  It can be use easily at rocky and rooted areas.  It is used to open the new fields and to process the stony areas.  It is specially useful in hard and dry trashy land conditions and in soils where scouring is a major problem.  The disc plough is designed to work in medium & light soil for basic functions such as soil breaking, soil raising, soil turning and soil mixing.

Over the years, our company has a cemented its position in Karnal(India) and is determined to become a trusted provider in other markets as well. To make payment procedures crystal clear and secured as well, we have trustworthy employees and they make certain that the transactions are done keeping in mind the guidelines and clients' convenience.

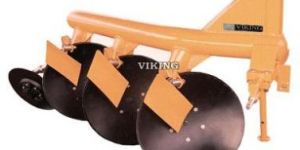

Our company is successfully ranked as the reliable Manufacturer, Exporter and Supplier of Viking Disc Plough. Conforming to the international quality norms & standards, our Viking Disc Plough is made using high-grade basic materials. It is suitable for all types of soil and can perform the toughest ploughing jobs. We are always prepared to cater to the bulk requirement of buyers as we maintain a huge stock of Disc Plough is our warehouse.Highlights : Disc Plough can handle the toughest ploughing jobs. For extremely hard ground and soil with large roots and other obstructions, one can obtain outstanding penetration performance. For soft sticky ground and sandy soil, depth can be controlled through the built-in depth control. The under frame and unit-to-unit clearances are adequate to cope with trashy conditions. Perfect alignment of the sub-beams carrying the Disc bottoms is maintained by virtue of the frame construction. An adjustable and spring-loaded furrow wheel takes care of the side draft and the implement moves smoothly. Disc tilt angle can be varied in three stages to perform on various types of soils.

Used to open new fields and process stony areas. Can handle toughest ploughing conditions with ease. Spring loaded coulter disc makes sure the implement moves smoothly in the dynamic conditions. Available in 2,3,4 and 5 bottom.
