Filling Line Dealers in Kharagpur (1 products available)

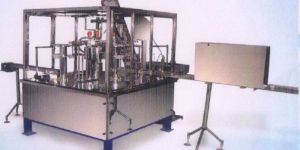

Automatic Rinsing, Filling & Capping Machine for Packaged Drinking Water Plant - 28 Bottle Per Minute The machine is Rotary type of design having three turntables for feeding the bottle for Rinsing, Filling & Capping. The bottle is holded at the neck and the body is guided in the Spacers provided. The machine has two stations for Rinsing and three stations for Filling. The filling cycle is controlled through timer device. The rinsing jets are pressurized by Pump for the rinsing the bottles from inside. 4 feet Infeed Air Conveyor and 15 feet out feed Conveyor fitted with Inspection board and Shrink Tunnel is provided along with machine. A separate Cap Feeder with storage capacity of 2000 caps and Mechanical Capper for capping are also provided with the machine. All contact parts are of Stainless Steel 304.Utilities required : Power - 440 VAC S.S. Pump - 1.5 hp 1440 rpm — 440 VAC. Technical Detail: Drive Motor - 1.5 hp 1440rpm — 440 VAC. Rinsing Pump - 0.5 hp, Single Phase. Cap Feeder - 0.25 hp 440 VAC 32 rpm 3 Phase (1 No.). Control Panel Electrical with Output of 24 VDC for Timer and Valves. Filling Valves - 'A" BSP 24 VDC. Proximity Switches - 24 VDC M18 Size - (for No bottle No Fill & No bottle No Rinsing System). Shrink Tunnel - 6 kW 440 VAC. Conveyor - Geared Motor 0.25 hp 32 rpm 440 VAC
