Private Mobile Network Wireless Intercom Systems
Get Price Quote
We are the manufacturers of ISM Band, fully wireless Intercom systems which are are capable of up to 1000 users. And now we proudly introduce a mobile phone model intercom and it works just like a private mobile network.
Various Range models are available, ranging from 500m - 3000m without any cabling. It will be suitable for even a 100 story apartment. It is just like an ordinary mobile phone handset but do not require any SIM card or subscription or rental.
And do not require any mobile tower / central exchange / PBX box / central box. But it will simply work as a private mobile network. Expandable up to 1000 handset any time.

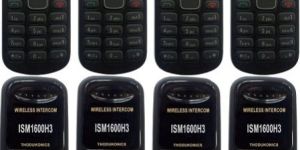

Small hand held handset. Weight :60gm including battery. 10 Hours Talk time 10 days Standby.Please find attached Model pictureIdeal for : Hotels,Villas Apartments Door Phone, Apartment flats, School, College, Multistory Building, Lodges, Works site, Hospitals, Banks, Factories, with in Ship, Cruiser, with in Vehicles, Houses, etc. Price: 500m - 3Km Model ISM1600H3: $90.00 / each phone. We can also develop customized long range wireless data transmitter / receiver Hardware and software for monitoring controlling equipmentSpecial Price for OLD customersFeatures:
900Mhz ISM Band Wireless connection up to 1000 handset
It is not using any normal Mobile Phone Band or Frequency
Long Distance coverage: 500m - 3Km
It will also work with in 100 story apartment
Encrypted Adaptive Frequency Hopping Technology
Super Anti-Jamming Capability
Full Duplex communication
Key Tone, Dial Tone, Busy tone Original Ring Back tone facility
Broadcasting Facility and also selective Broadcasting
Commanding/announcing facility to any handset
User programmable 1/2/3 digit phone number
User programmable Group ID number 000-999
Loud and Selectable Ring tone
2.5W Audio out for external speaker application
Common mini USB adaptor/charger.
High Quality Electronic Circuit
Handset will work with mini USB adapter even if no battery.
One Year Warrantee
Technical information:
World Open ISM band ISM 900Mhz
User programmable phone ID number 1-999
User programmable Group ID code 000-999
Number of channels: 100, and 5 slot per channel
Frequency range: 905Mhz to 925Mhz
Duplex procedure: Shock Burst TDMA
Channel spacing: 200 kHz
Bit rate: 250 kbit/s
Modulation: Encrypted GMSK
RF Transmission Power: 50mW to 1000mW (automatic selection)
Voice coding: Own codec, Shock Burst 100/S 8 kbit/s
Operating range 500m-3000m
Regulation Compliance : FCC Part 15, Part 68
3.7V, 1000mAh Li-Po Battery
10 hours Talk time, 10 days Standby
Dimension 105 x 45 x 15 mm, Weight: 60gm
Operating Temperature : -20 ~ 70C
Humidity : 20 ~ 75%
