Fatigue Testing Machine Dealers in Ichalkaranji, Kolhapur

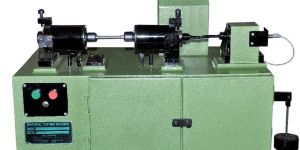

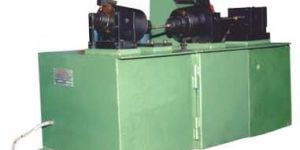

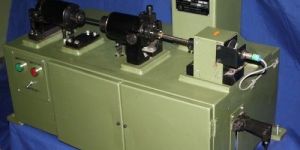

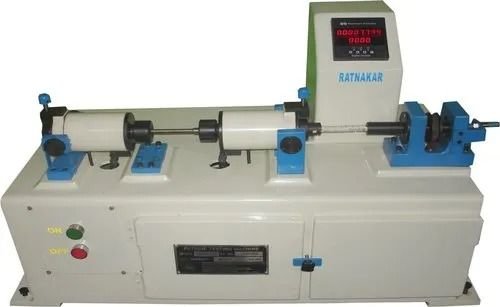

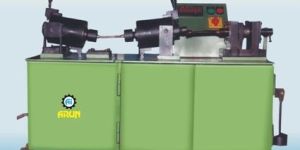

This Fatigue Testing Machine is known for carrying out Fatigue Tests on materials by putting it under exponential stress, tension and compression. We are an acclaimed Manufacturer, Supplier and Exporter of Fatigue Testing Machine. This Fatigue Testing Machine is manufactured in confirmation to the set industrial standards. Application : Used to test the fatigue strength of materials and to draw S-N diagram by Research Institution Laboratories, Material manufacturers, and various industriesModels : AI-FTM8 Accuracy & Calibration : This machine conforms to requirement of IS : 5075 - 1969 Standards Highlights : Light weightCompact size Simple designAn interlocking system provided puts off the motor at specimen failurTable model, no need of foundationCalibration is in NmSimple lever system of changing load

We manufacture and supply premium quality Fatigue Testing Machine which is a rotating beam type machine in which Machine meets requirement of IS 5075-1969. This machine is used to test the fatigue strength of materials and to draw S-N diagram by research institute, laboratories, material manufacturers and various industries. Model : Mech.CS.FT Working : In our Fatigue Testing Machine, the load is applied in reversed bending fashion. The standard 8 mm dia specimen is held in special holders at its ends and located such that it experiences a uniform bending moment. The specimen is rotated at 4200 rpm by a motor. A complete cycle of reversed stresses in all fibers of the specimen is produced during each revolution. The bending moment is applied with the lever system and can be easily changed by moving a weight over the lever. Total number of revolution at which the specimen fails are recorded by a mechanical counter. An interlocking system puts off the motor at specimen failure. Features : Light weight, Simple design, Compact SizeSimple lever system for changing loadTable model, no need of foundationCalibration in Nm available on request Specifications : Testing dia of specimen (mm) : 8Bending moment adjustable (Kg.cm) : 25 - 200Ranges : 1 - Kg.cm II - Kg.cm 25- 125 125-200Main Supply : 3ph 440v 50hzOverall size (mm) : 1000LX500WX600 HMax. bending moment (Kg. cm) : 200Rotating speed in RPM : 4200Accuracy of applied bending moment : ±1%Mechanical Counter : No. of digits Multiplying factor: 6 3Power required in HP : 0.5Gripping dia of specimen (mm) : 12Weight (Kg) : 120 Optional Features : 6 digit electronic counter instead of mechanical counter can be supplied at additional price.Machine with maximum bending moment up to 400 Kg. cm can be offered on request. Click Here For More Detail

We are Manufacturer, Supplier, Exporter of all our product range and our setup is situated in Kolhapur ( Maharashtra, India )   Application Fatigue Testing Machines are used to test the fatigue strength of materials and to draw S-N diagram by Research Institution Laboratories, Material manufacturers, and various industries. Models : AI-FTM8   Accuracy & Calibration This machine conforms to requirement of IS : 5075 - 1969 Standards   Salient Features An interlocking system provided puts off the motor at specimen failure Light weight, compact size and very simple design Table model, no need of foundation Simple lever system of changing load Calibration is in Nm
